Radium Fuel Pump Hanger | Nissan S13 / R32 Excluding GT-R (20-0730-00 / 20-0732-00)

The S13 tank was baffled for a stock pump. Fit a real one and the pickup runs dry before the tank does.

The Radium Engineering fuel pump hanger for early Nissan chassis replaces the stock in-tank pump module with a drop-in assembly that accepts one, two, or three aftermarket pumps. The pumps sit in the factory collector bowl and draw through a mesh filter at the base, and fuel cannot pass between the three independent filtration chambers, so a failing sock on one pump cannot starve the others. The factory fuel level float and low fuel switch keep working. No cutting or modifying of sheet metal or tank required.

Choose Your Version

• Fits Walbro GSS342 / AEM 50-1000 / AEM 50-1200 (20-0730-00): the brushed pump package
• Fits Walbro F90000267 / 274 / 285 (20-0732-00): the DCSS 39/50 E85 pump package

What You'll Feel

• Fuel pressure that holds when the tank is low and the car is loaded up
• Pump staging available out of the box, thanks to integrated check valves
• A working fuel gauge and low fuel light, both retained
• Room to run one pump now and add a second or third later
• A drop-in install with no cutting or drilling

Features

• Drop-in replacement for the OEM pump module, 1 to 3 pumps
• Merged 8AN ORB female pump outlet and 8AN ORB female return port on the top plate
• Integrated check valves permitting fuel pump staging

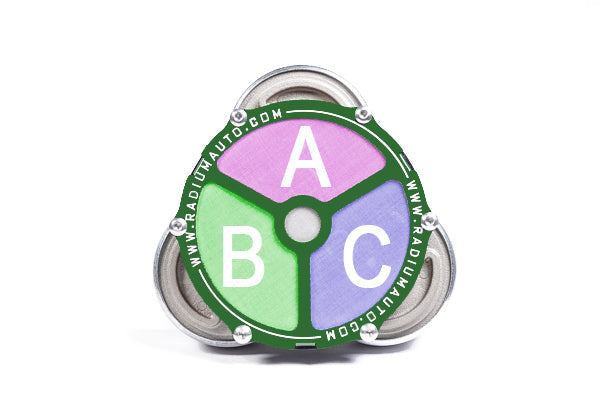

• Three independent filtration chambers with mesh inlet filtration
• Adapter fittings for both the factory fuel lines and aftermarket AN hose, machined low to clear the unibody
• Anti-rotation stainless electrical studs, hermetically sealed, with non-conductive acorn nuts
• ETFE insulated in-tank wiring
• Anodized aluminum, gasoline, methanol, and E85 compliant

The Details

Pump choice decides the version, not the chassis. Note a genuinely convenient detail: if fewer than three pumps are installed, the empty port does not need to be blocked off, so a single-pump build needs no extra parts. Some assembly is required and pumps are not included in either version.

On wiring, a single Walbro GSS342 install can reuse the OEM fuel pump wiring, though upgrading is recommended so the pump sees full voltage. Anything beyond that wants a Radium DIY wiring kit per pump. To carry delivery forward to the rail, the 20-0703 early Nissan plumbing kit runs 8AN feed through a filter mounted in the stock location on a Nissan-specific billet mount, with a 6AN return; note it is not designed for the stock fuel rail.

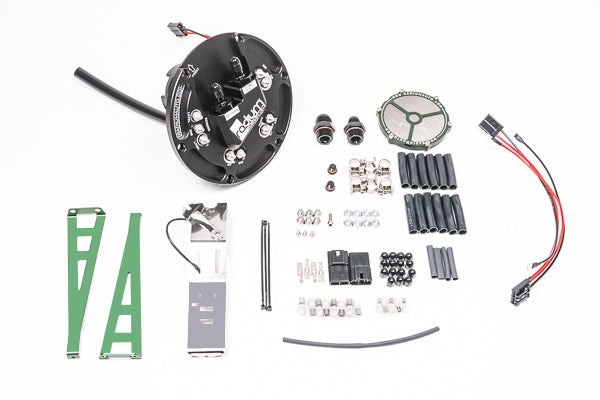

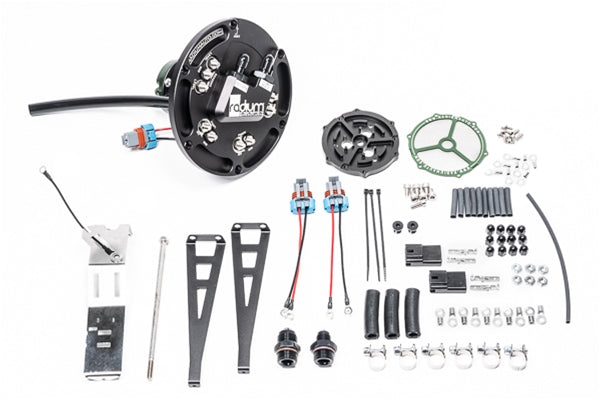

Kit Includes

• Partially assembled fuel pump hanger
• All components to install 1 to 3 compatible pumps
• Adapter fittings for factory fuel lines and aftermarket AN hose
• Electrical parts kit for wiring at the top hat
• NOT included: fuel pumps, wiring kits, and plumbing kit

Applications

• Nissan S13 Silvia, 180SX, 200SX, and 240SX, all models, trims, RHD and LHD
• Nissan R32 Skyline, all RHD and LHD, excluding GT-R

Important Notes

• NOT for the R32 Skyline GT-R
• Fuel pumps sold separately; some assembly required
