Injector Dynamics ID1750-XDS Fuel Injectors | Set of 4 | Multiple Fitments (1750.60.11.14.4)

If your fuel trims drift every time the weather changes, your injector data is guessing.

A factory fuel system that was sized for stock power runs out of injector long before a built engine runs out of airflow. The ID1750-XDS answers that with 1728cc/min of flow at 3.0 bar, compatibility with methanol, ethanol, and all known hydrocarbon fuels, delivered as a matched set of 4 for your application (see list below). Each set is flow matched using Dual Slope Matching and backed by full characterization data, so your ECU gets real numbers, not estimates. Sized right, characterized right, tuned right.

What You'll Feel

• Faster dyno sessions, because accurate injector data means less time chasing fuel trims
• Cylinder-to-cylinder consistency you can see in your lambda and EGT logs
• Steady AFRs when boost climbs, no lean spikes at the top of the pull
• Stock-like idle and clean cold starts, even at this injector size
• Crisp part-throttle response instead of the surge and stumble big injectors are known for

Features

• Nominal flow rate: 1728cc/min at 3.0 bar (43.5 psi), measured with E10 emissions certification fuel at 49 degrees C (120 degrees F)
• Maximum differential fuel pressure: 7.0 bar (101.5 psi)
• Compatible with methanol, ethanol, MTBE, nitromethane, and all known hydrocarbon fuels
• Corrosion resistant construction for long service life on alcohol fuels
• USCAR electrical connector

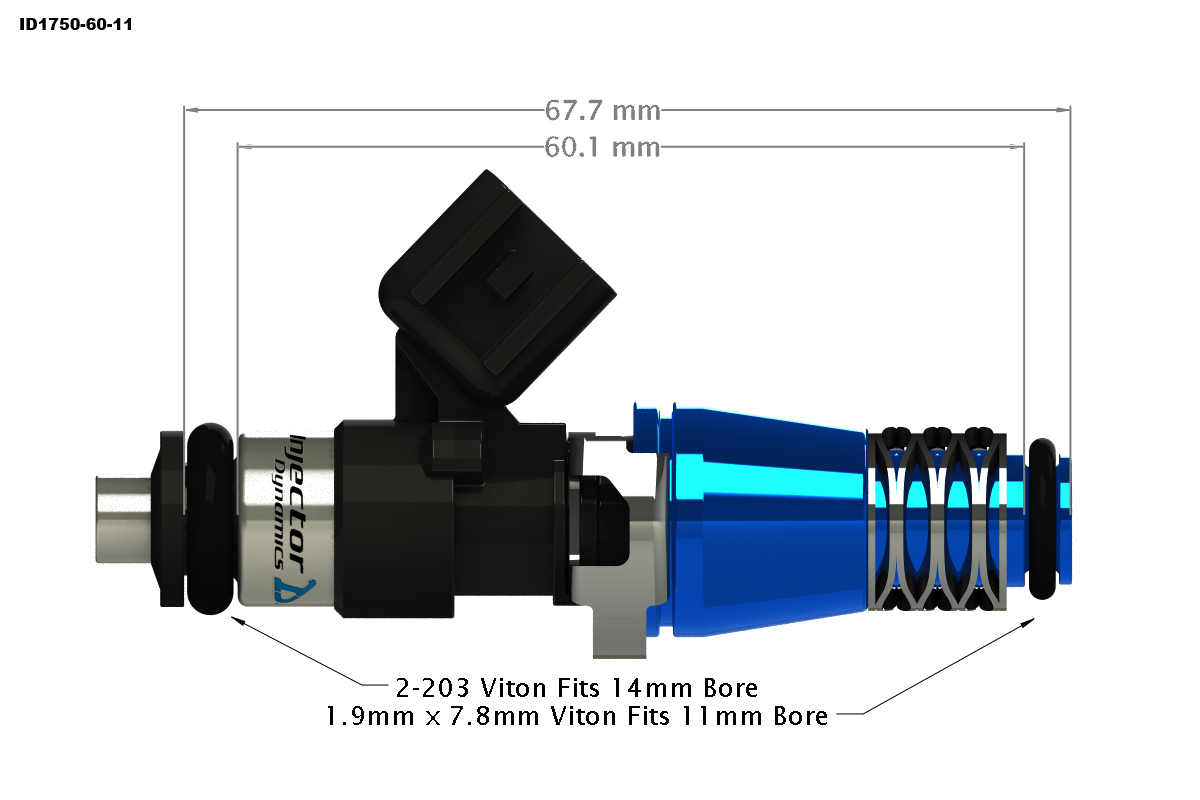

• Configuration: 60mm body, 11mm adapter top, 14mm lower o-ring
• Supplied as a flow-matched set with Dual Slope Matching for consistent delivery at low pulse widths

The Details

The ID1750-XDS is the successor to the ID1700x. It adds a higher dynamic flow rate with no increase in minimum fuel mass, better cylinder-to-cylinder balance at low pulse widths, and improved pressure sensitivity, while keeping the "compatible with everything but dirt" corrosion resistance the 1700 was known for. It sits between the 1300 and 2600 in the XDS lineup, sized for serious ethanol and methanol builds that have outgrown the 1300 class. Every set ships flow matched, and Injector Dynamics publishes full characterization data, including slope, offset (dead time) versus voltage and pressure, and short pulse width behavior, so your tuner can load real numbers instead of chasing fuel trims across the map. Accurate dead times are what make large injectors behave at idle and cruise, and they are the reason these tune quickly and stay tuned. This configuration uses machined top adapters (already fitted) to suit the rail height listed above. If your harness does not have USCAR plugs, the matching ID plug and play adapter is 91.1 (USCAR to EV1) or 91.2 (USCAR to OBD2) or 91.3 (USCAR to Denso), available separately, no cutting or soldering required.

Fitment Notes

• Honda Accord 92-95: 92-95 Accord / F & H Series. 11mm (blue) adapters.
• Honda Accord 96-02: 96-02 Accord / F & H series. 11mm (blue) adapters.
• Honda Civic 88-95: 88-95 Civic / B, D, H, F Series. 11mm (blue) adapters.
• Honda Civic 96-00: 96-00 Civic / B, D, H, F Series. 11mm (blue) adapters.
• Honda Prelude 92-96: 92-96 Prelude / F & H Series. 11mm (blue) adapters.
• Honda Prelude 97-01: 97-01 Prelude / F & H Series. 11mm (blue) adapters.
• Honda Integra 90-95: 90-95 Integra / B & H Series, 11mm (blue) adapters.
• Honda Integra 96-01: 96-01 Integra / B & H Series, 11mm (blue) adapters.
• Infiniti G20 91-96 (11mm): G20 / FWD SR20 applications. Must be converted to top-feed. 11mm (blue) adapter.
• Infiniti G20 99-02 (11mm): G20 / FWD SR20 applications. Must be converted to top-feed. 11mm (blue) adapter.
• Nissan 240SX-S13/S14/S15 (11mm): SR20DET RWD. Top feed only. 11mm (blue) adapter tops, 14mm lower o-ring.
• Nissan SR20DET FWD (11mm): SR20DET RWD. Top feed only. 11mm (blue) adapter tops, 14mm lower o-ring.
• Toyota Celica All-Trac (89-99) 3S-GTE (11mm): Celica All Trac 1989-1999 / 3S-GTE Top-feed applications. 11mm (blue) adapter top.

Kit Includes

• 1 Set of 4 - ID1750-XDS Fuel Injectors

Applications

• 1992-1995 Honda Accord - Accord 92-95
• 1996-2002 Honda Accord - Accord 96-02
• 1988-1995 Honda Civic - Civic 88-95
• 1996-2000 Honda Civic - Civic 96-00
• 1992-1996 Honda Prelude - Prelude 92-96
• 1997-2001 Honda Prelude - Prelude 97-01
• 1990-1995 Acura Integra - Integra 90-95
• 1996-2001 Acura Integra - Integra 96-01
• 1991-1996 Infiniti G20 - G20 91-96 (11mm)
• 1999-2002 Infiniti G20 - G20 99-02 (11mm)
• 1989-1998 Nissan 240SX, 1989-2002 Nissan Silvia - 240SX-S13/S14/S15 (11mm)
• Nissan SR20DET FWD (11mm)
• 1989-1999 Toyota Celica - Celica All-Trac (89-99) 3S-GTE (11mm)
