Injector Dynamics ID1750-XDS Fuel Injectors | Set of 4 | Multiple Fitments (1750.60.14.14.4)

Your tuner should be tuning the engine, not fighting the injectors.

Once boost and ethanol enter the picture, factory injectors become the first hard ceiling in the whole combination. The ID1750-XDS answers that with 1728cc/min of flow at 3.0 bar, compatibility with methanol, ethanol, and all known hydrocarbon fuels, delivered as a matched set of 4 for your application (see list below). Each set is flow matched using Dual Slope Matching and backed by full characterization data, so your ECU gets real numbers, not estimates. No drama, just fuel where and when the tune asks for it.

What You'll Feel

• Stock-like idle and clean cold starts, even at this injector size
• Crisp part-throttle response instead of the surge and stumble big injectors are known for
• Steady AFRs when boost climbs, no lean spikes at the top of the pull
• Confidence to run ethanol daily without worrying what it is doing to your injectors
• Fuel trims that stay put season to season instead of drifting with the weather

Features

• Nominal flow rate: 1728cc/min at 3.0 bar (43.5 psi), measured with E10 emissions certification fuel at 49 degrees C (120 degrees F)
• Maximum differential fuel pressure: 7.0 bar (101.5 psi)
• Compatible with methanol, ethanol, MTBE, nitromethane, and all known hydrocarbon fuels
• Corrosion resistant construction for long service life on alcohol fuels
• USCAR electrical connector

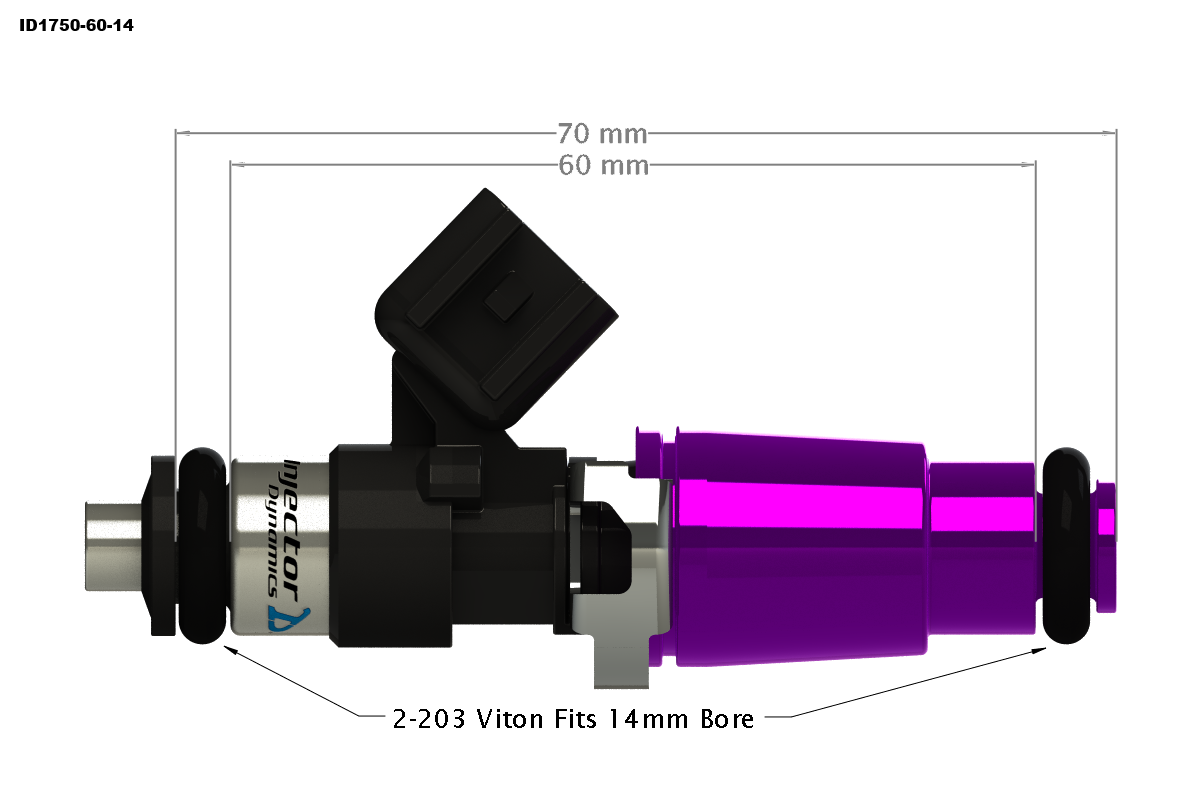

• Configuration: 60mm body, 14mm adapter top, 14mm lower o-ring
• Supplied as a flow-matched set with Dual Slope Matching for consistent delivery at low pulse widths

The Details

The ID1750-XDS is the successor to the ID1700x. It adds a higher dynamic flow rate with no increase in minimum fuel mass, better cylinder-to-cylinder balance at low pulse widths, and improved pressure sensitivity, while keeping the "compatible with everything but dirt" corrosion resistance the 1700 was known for. It sits between the 1300 and 2600 in the XDS lineup, sized for serious ethanol and methanol builds that have outgrown the 1300 class. Every set ships flow matched, and Injector Dynamics publishes full characterization data, including slope, offset (dead time) versus voltage and pressure, and short pulse width behavior, so your tuner can load real numbers instead of chasing fuel trims across the map. Accurate dead times are what make large injectors behave at idle and cruise, and they are the reason these tune quickly and stay tuned. This configuration uses machined top adapters (already fitted) to suit the rail height listed above. If your harness does not have USCAR plugs, the matching ID plug and play adapter is 91.1 (USCAR to EV1) or 91.3 (USCAR to Denso), available separately, no cutting or soldering required.

Fitment Notes

• BMW E30 M3 88-91: BMW E30 M3, 14 mm (purple) adapters.
• Ford Focus ZX3: Ford Focus ZX3 applications, 14mm (purple) adapters.
• Ford Focus SVT: Ford Focus SVT applications, 14mm (purple) adapters.
• Ford Focus RS: Ford RS MKI applications, 14 mm (purple) adapters.
• Ford Mustang SVO: SVO, T-bird Super Coupe, Merkur XR4Ti, Turbo Cougar / 2.3L turbo applications. 14mm (purple) adapters.
• Hyundai Genesis 2.0t 13-14: 2013-14 Genesis 2.0 Turbo. 14mm (purple) adapter.
• Infiniti G20 91-96 (14mm): G20 / FWD SR20 applications. Must be converted to top-feed. 14mm (purple) adapter.
• Infiniti G20 99-02 (14mm): G20 / FWD SR20 applications. Must be converted to top-feed. 14mm (purple) adapter.
• Nissan 240SX-S13/S14/S15 (14mm): SR20DET RWD. Top feed only. 14mm (purple) adapter tops, 14mm lower o-ring.
• Nissan SR20DET FWD (14mm): SR20DET RWD. Top feed only. 14mm (purple) adapter tops, 14mm lower o-ring.
• Toyota Celica All-Trac (89-99) 3S-GTE (14mm): Celica All Trac 1989-1999 / 3S-GTE Top-feed applications. 14mm (purple) adapter top.

Kit Includes

• 1 Set of 4 - ID1750-XDS Fuel Injectors

Applications

• 1988-1991 BMW M3 - E30 M3 88-91
• 2000-2004 Ford Focus - Focus ZX3
• 2002-2004 Ford Focus - Focus SVT
• 2002-2003 Ford Focus - Focus RS
• 1984-1986 Ford Mustang - Mustang SVO
• 2013-2014 Hyundai Genesis - Genesis 2.0t 13-14
• 1991-1996 Infiniti G20 - G20 91-96 (14mm)
• 1999-2002 Infiniti G20 - G20 99-02 (14mm)
• 1989-1998 Nissan 240SX, 1989-2002 Nissan Silvia - 240SX-S13/S14/S15 (14mm)
• Nissan SR20DET FWD (14mm)
• 1989-1999 Toyota Celica - Celica All-Trac (89-99) 3S-GTE (14mm)
