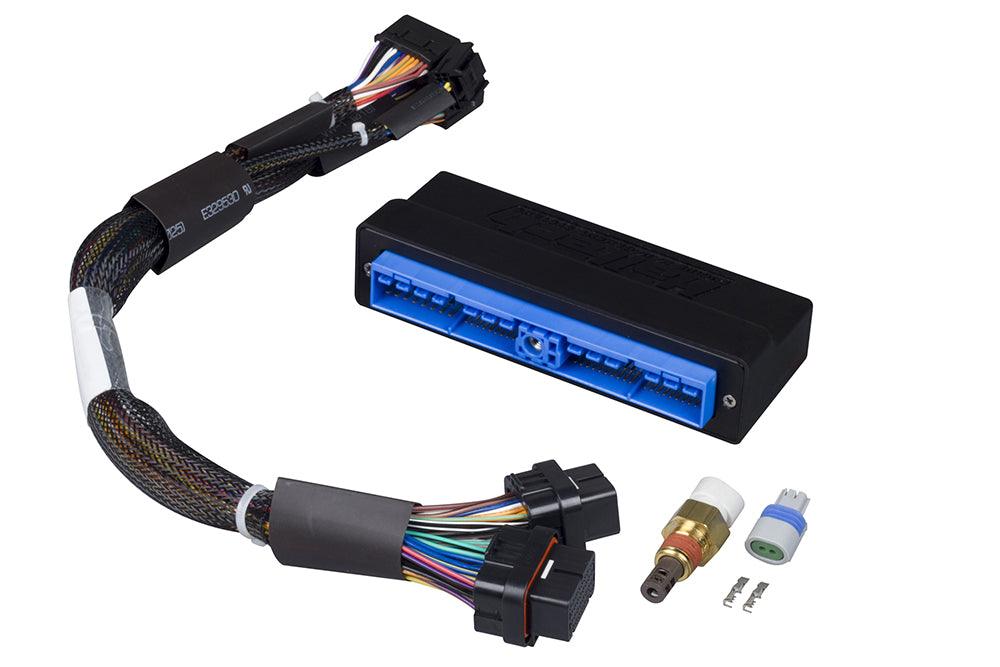

Elite 1000/1500 Nissan Silvia S13 and 180SX (SR20DET) Plug 'n' Play Adaptor Harness (HT-140851)

Put a Haltech Elite 1000/1500 in an SR20DET S13 or 180SX without cutting a single factory wire.

The Haltech Elite 1000/1500 Nissan Silvia S13 and 180SX (SR20DET) Plug 'n' Play Adaptor Harness sits between the factory engine harness and a Haltech Elite 1000/1500 ECU. One side carries the factory ECU connectors, the other plugs straight into the Elite, so the factory loom stays untouched and the swap is fully reversible. A typical install is a few hours, not a weekend of pinouts and splices. It suits the S13 Silvia and 180SX with the SR20DET (and SR-swapped S13 240SX chassis running the S13 SR20DET loom) with a manual transmission.

Need the ECU as well? The same application is also available as: Elite 1500 ECU kit (HT-150951).

What You'll Feel

• An SR20 that takes a bigger turbo, injectors and E85 on sequential injection
• MAP-based load sensing in place of the factory air flow meter, so the intake can be whatever you need
• Factory connectors that click home instead of a loom you have to rebuild
• A stock harness you can return to at any time

Features

• Plug 'n' play adaptor with the Nissan Silvia S13 and 180SX (SR20DET) factory ECU connector layout
• Suits Haltech Elite 1000/1500 ECUs
• No cutting or splicing of the factory harness, fully reversible
• Includes an M14 x 1.5 air temp sensor with plug and pins, so the ECU sees real intake temperature from day one
• Auxiliary I/O 16-pin Tyco plug and pins for extra sensors and outputs (wideband, fuel and oil pressure, flex fuel)
• Haltech quick start guide walks through the fit
• Backed by the Haltech limited warranty

The Details

Part number HT-140851. Plug 'n' Play replacement of the factory ECU for Nissan Silvia S13 and 180SX (SR20DET) Manual transmission only. Unsure whether your car matches? Send us the VIN or a photo of the factory ECU plug before ordering and we will confirm.

Kit Includes

• 1x Injection molded plastic plug 'n' play adaptor harness
• 1x M14 x 1.5 air temp sensor with matching plug and pins
• 1x Auxiliary I/O 16 Pin Tyco plug and pins

Applications

• Nissan Silvia S13 and 180SX (SR20DET), SR20DET
• 1989-1994 Nissan Silvia
• 1989-1994 Nissan 240SX
• Requires a Haltech Elite 1000/1500 ECU (sold separately)

Tuned By Shawn is a Platinum Haltech Dealer with in-house wiring and remote tuning. If this is part of a larger build, ask and we will spec the full parts list.
