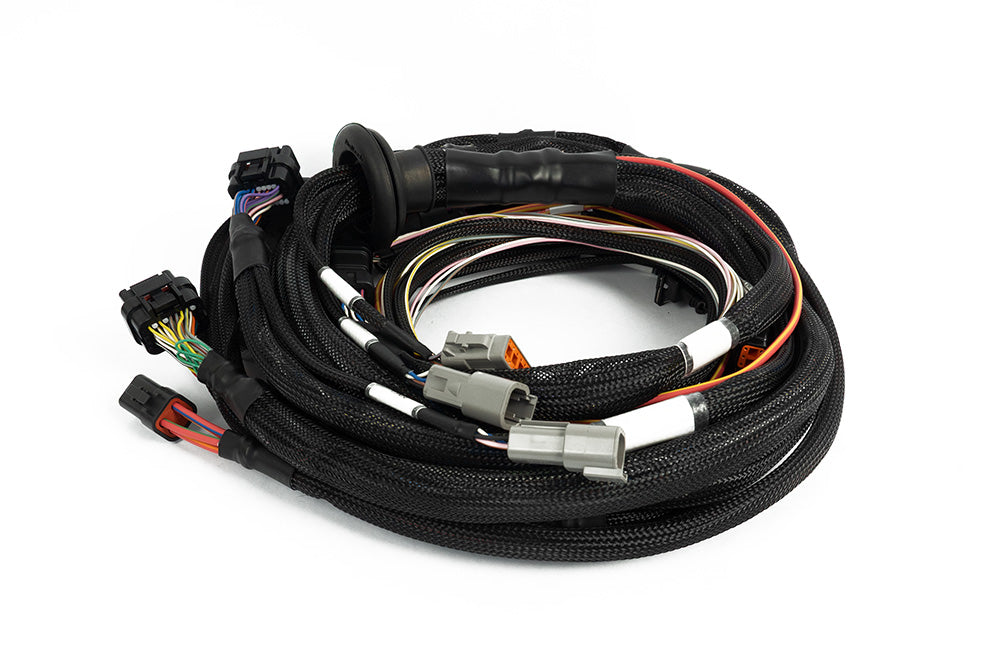

Nexus Rebel K Main Terminated Harness (HT-186402)

The Nexus Rebel K Main Terminated Harness (HT-186402) is the K-series engine harness for the Haltech Nexus Rebel K ECU, terminated with factory-style connectors for port-injected Honda K-series engines. It plugs straight into the ECU and the factory sensors and actuators. The injector, throttle and transmission sub-harnesses that suit your engine plug into its breakouts.

Buying the whole system?

The Nexus Rebel K kit (HT-220206) includes this harness plus the ECU, the Keihin injector harness, both throttle sub-harnesses, both transmission sub-harnesses and a sensor pack. Buy the harness on its own if you already have a Rebel K ECU or need a replacement.

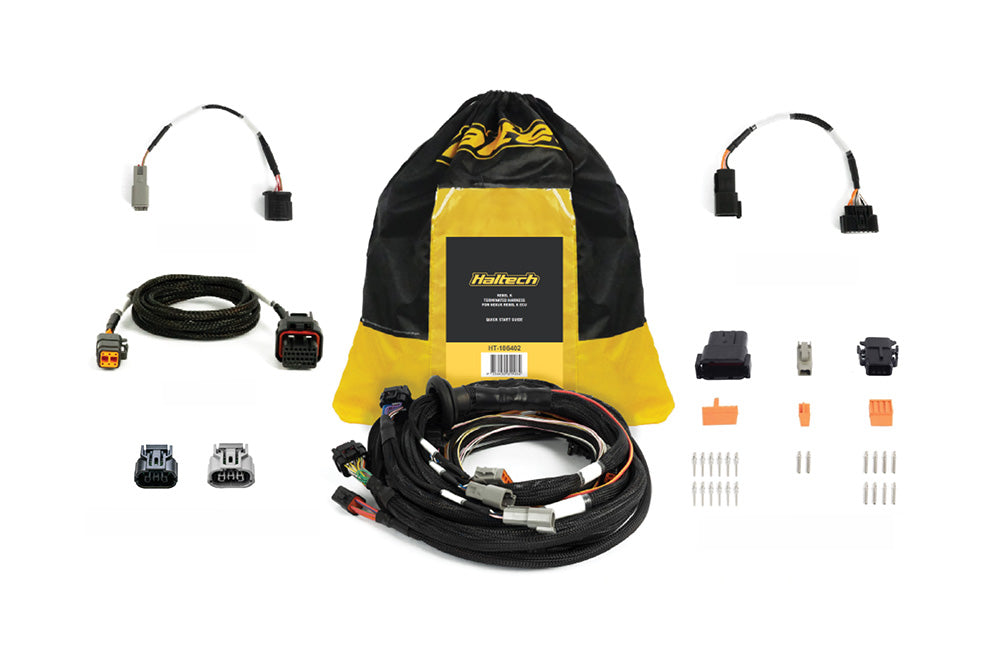

What's in the box

• HT-186402 Nexus Rebel K main terminated harness
• HT-186130 cabin adapter harness (6-pin DTM pedal connector)
• HT-186122 alternator adapter harness
• HT-186133 Honda APP adapter harness
• K20 and K24 crank sensor connectors
• Mating connectors and pins for the spare inputs and outputs
• Main harness quick start guide

Not included

• Rebel K ECU (HT-220003)
• Injector sub-harness: Keihin (HT-186016), USCAR EV6 (HT-186013), EV1 (HT-186014) or Denso (HT-186015)
• Throttle sub-harness: DBW (HT-186168) or cable (HT-186169)
• Transmission sub-harness: 2002-2004 (HT-187011) or 2005+ (HT-187012)
• Sensors (wideband O2, air temperature, knock, oil and fuel pressure, flex fuel), 4 AWG battery cable and a 100A fuse

Connections

• Direct plug-in to the Rebel K ECU (two 34-pin connectors and a 4-pin DTP)
• Crank sensor (K20 or K24 plug), intake and exhaust cam sensors, VTC and VTEC solenoids
• Direct connection to the factory K-series ignition coils, with a coil ground ring terminal for the head
• Injector, throttle and transmission breakouts for the sub-harnesses
• Factory MAP sensor, factory coolant temperature sensor, Haltech air temperature sensor
• Bosch LSU 4.9 wideband, Bosch knock sensor, and Delphi 3-pin oil and fuel pressure sensor plugs
• Flex fuel sensor plug and a 2-pin DTM boost solenoid plug
• ECU-controlled starter solenoid (25A), fuel pump and thermofan outputs (10 AWG)
• Ignition switch input, alternator control, tacho output and brake signal
• Haltech CAN connectors at both ends of the harness
• Spare inputs and outputs: a 26-pin Superseal cabin connector and a 12-pin DTM engine bay connector

Good to know

• The harness does not ground the engine. Fit a ground strap from the engine to the battery.
• The Rebel K supports manual transmissions and high impedance injectors only.
• Our Rebel K install guide walks through every connection, the crank plug pinouts and first start.

Fitment

• Haltech Nexus Rebel K ECU (HT-220003). Haltech also lists it for Nexus R3 ECU / VCUs.
• All factory port-injected Honda K-series engines, including the K20A, K24A and K24Z

As a Platinum Haltech Dealer, Tuned By Shawn supports everything we sell with in-house wiring services and remote tuning over live Zoom. Send us your engine code and chassis before ordering and we will confirm the right parts for your swap. For competition and off-road use only.
