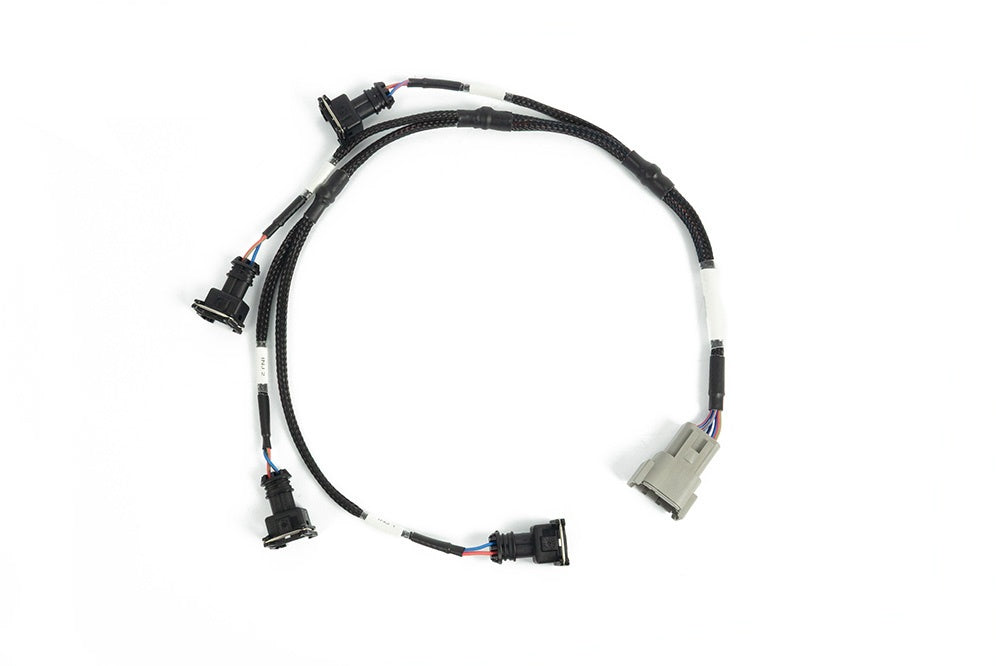

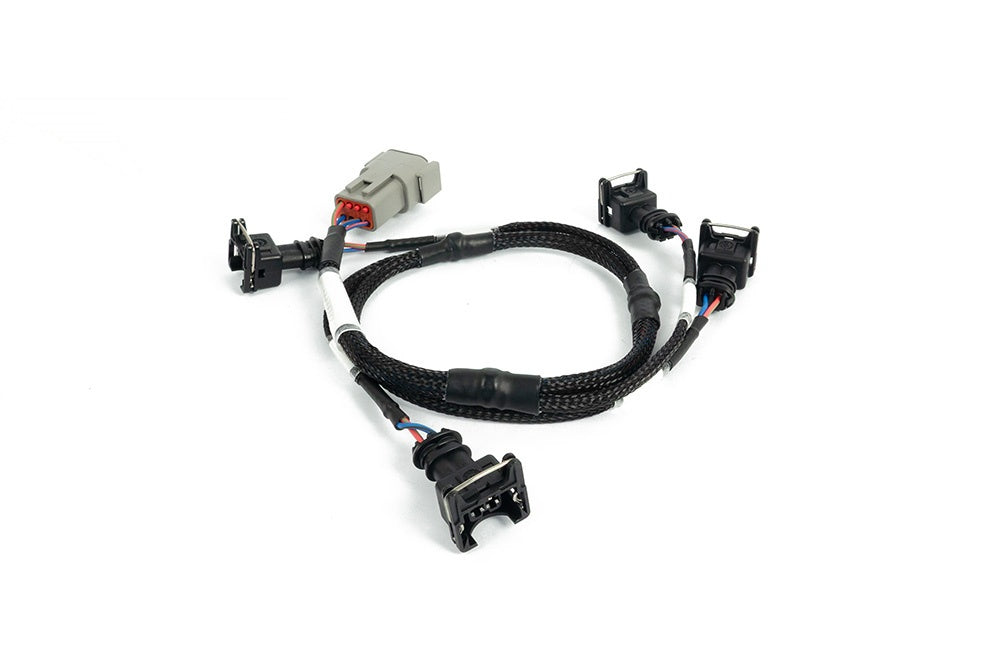

i4 Timer (EV1) Primary Injector Harness (HT-186014)

The i4 Timer (EV1) Primary Injector Harness (HT-186014) connects four injectors with EV1 (Bosch Minitimer) plugs to the injector breakout on a Haltech Nexus inline-4 main terminated harness, such as the Rebel K main terminated harness (HT-186402).

What it does

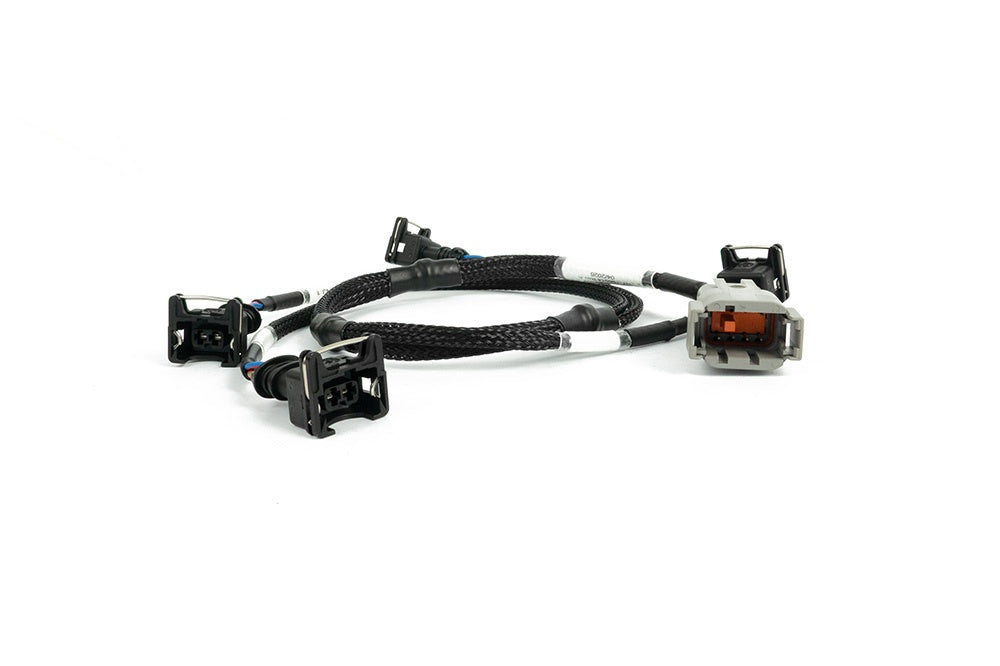

• Four EV1 (Bosch Minitimer) injector plugs, each labeled by cylinder
• Plugs into the injector breakout connector on the main harness, no splicing
• Lets one main harness suit different injectors: swap the sub-harness, not the harness

The Nexus Rebel K kit (HT-220206) comes with the Keihin injector harness (HT-186016). Choose this harness instead if your injectors use EV1 (Bosch Minitimer) plugs.

Fitment

• Haltech Nexus inline-4 main terminated harnesses, including the Rebel K main harness (HT-186402)
• The Nexus Rebel K ECU drives high impedance injectors only. Check your injectors before ordering.

What's in the box

• 1 x i4 Timer (EV1) Primary Injector Harness (HT-186014)

Need help?

Our Rebel K install guide covers the injector breakout and the rest of the harness.

As a Platinum Haltech Dealer, Tuned By Shawn supports everything we sell with in-house wiring services and remote tuning over live Zoom. Send us your engine code and chassis before ordering and we will confirm the right parts for your swap. For competition and off-road use only.
