Injector Dynamics ID1750-XDS Fuel Injectors | Single Injector | 34mm, 14mm Top, 15mm Lower O-Ring (1750.34.14.15)

Chasing lean spikes at high boost? Your injectors are the weak link.

A factory fuel system that was sized for stock power runs out of injector long before a built engine runs out of airflow. The ID1750-XDS answers that with 1728cc/min of flow at 3.0 bar, compatibility with methanol, ethanol, and all known hydrocarbon fuels, delivered as a single injector in the 34mm body, 14mm top (no adapter), 15mm (late model GM) lower o-ring configuration. It is backed by full characterization data, so your ECU gets real numbers, not estimates. Fueling you can build a tune on.

What You'll Feel

• Headroom to grow the build without touching the fuel system again
• Steady AFRs when boost climbs, no lean spikes at the top of the pull
• Stock-like idle and clean cold starts, even at this injector size
• Cylinder-to-cylinder consistency you can see in your lambda and EGT logs
• Confidence to run ethanol daily without worrying what it is doing to your injectors

Features

• Nominal flow rate: 1728cc/min at 3.0 bar (43.5 psi), measured with E10 emissions certification fuel at 49 degrees C (120 degrees F)
• Maximum differential fuel pressure: 7.0 bar (101.5 psi)
• Compatible with methanol, ethanol, MTBE, nitromethane, and all known hydrocarbon fuels
• Corrosion resistant construction for long service life on alcohol fuels
• USCAR electrical connector

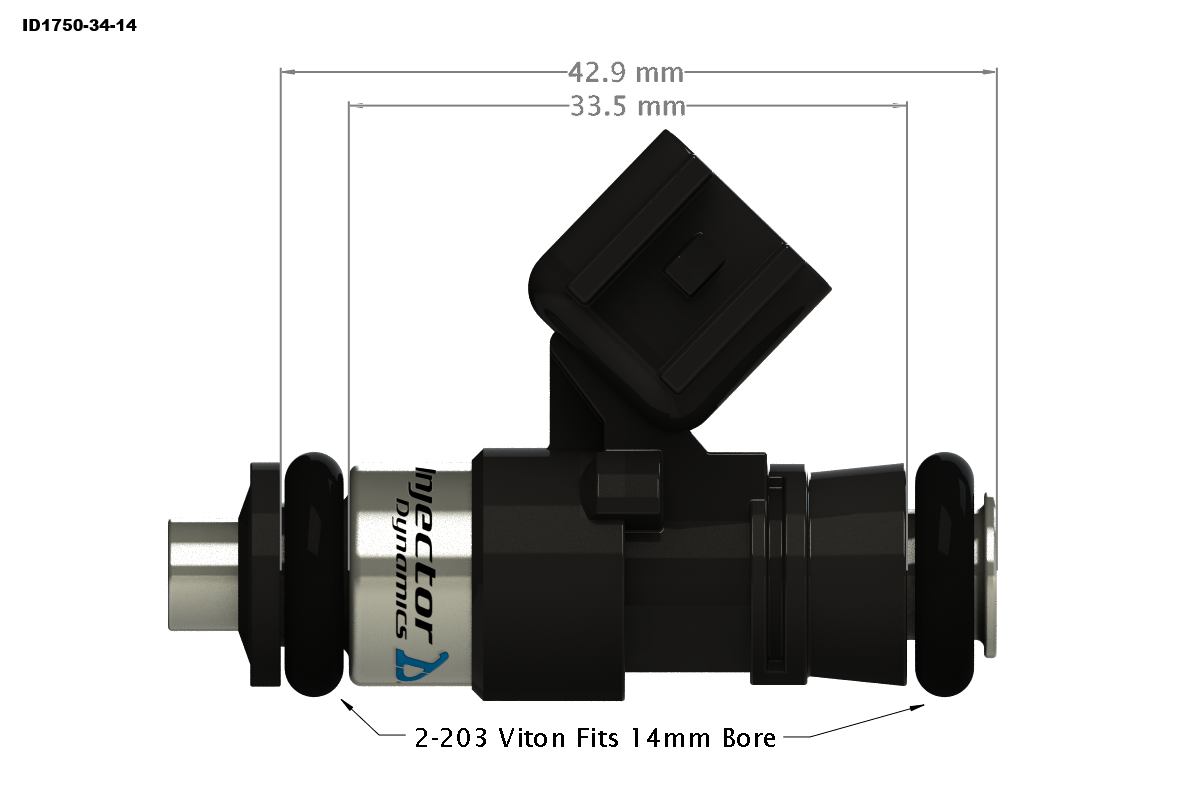

• Configuration: 34mm body, 14mm top (no adapter), 15mm (late model GM) lower o-ring
• Sold individually, so you can replace one injector or build a set for an uncommon cylinder count

The Details

The ID1750-XDS is the successor to the ID1700x. It adds a higher dynamic flow rate with no increase in minimum fuel mass, better cylinder-to-cylinder balance at low pulse widths, and improved pressure sensitivity, while keeping the "compatible with everything but dirt" corrosion resistance the 1700 was known for. It sits between the 1300 and 2600 in the XDS lineup, sized for serious ethanol and methanol builds that have outgrown the 1300 class. Injector Dynamics publishes full characterization data, including slope, offset (dead time) versus voltage and pressure, and short pulse width behavior, so your tuner can load real numbers instead of chasing fuel trims across the map. Accurate dead times are what make large injectors behave at idle and cruise, and they are the reason these tune quickly and stay tuned. This is the short 34mm body with no top adapter, a direct fit where the rail was designed for short injectors. The 15mm lower o-ring matches late model GM manifold bores. If your harness does not have USCAR plugs, plug and play connector adapters are available separately, no cutting or soldering required.

Fitment Notes

• USCAR Connector, 34mm length, 14 mm top, 15mm lower o-ring.

Kit Includes

• 1 - ID1750-XDS Fuel Injector

Applications

• Universal: 34mm body, 14mm top (no adapter), 15mm (late model GM) lower o-ring, USCAR connector
