Injector Dynamics ID1750-XDS Fuel Injectors | Set of 6 | Multiple Honda / Acura Fitments (1750.48.11.F20.6)

Big injectors do not have to mean a lumpy idle and ugly cold starts.

Once boost and ethanol enter the picture, factory injectors become the first hard ceiling in the whole combination. The ID1750-XDS answers that with 1728cc/min of flow at 3.0 bar, compatibility with methanol, ethanol, and all known hydrocarbon fuels, delivered as a matched set of 6 for your application (see list below). Each set is flow matched using Dual Slope Matching and backed by full characterization data, so your ECU gets real numbers, not estimates. Fueling you can build a tune on.

What You'll Feel

• Confidence to run ethanol daily without worrying what it is doing to your injectors
• Crisp part-throttle response instead of the surge and stumble big injectors are known for
• Faster dyno sessions, because accurate injector data means less time chasing fuel trims
• Stock-like idle and clean cold starts, even at this injector size
• Headroom to grow the build without touching the fuel system again

Features

• Nominal flow rate: 1728cc/min at 3.0 bar (43.5 psi), measured with E10 emissions certification fuel at 49 degrees C (120 degrees F)
• Maximum differential fuel pressure: 7.0 bar (101.5 psi)
• Compatible with methanol, ethanol, MTBE, nitromethane, and all known hydrocarbon fuels
• Corrosion resistant construction for long service life on alcohol fuels
• USCAR electrical connector

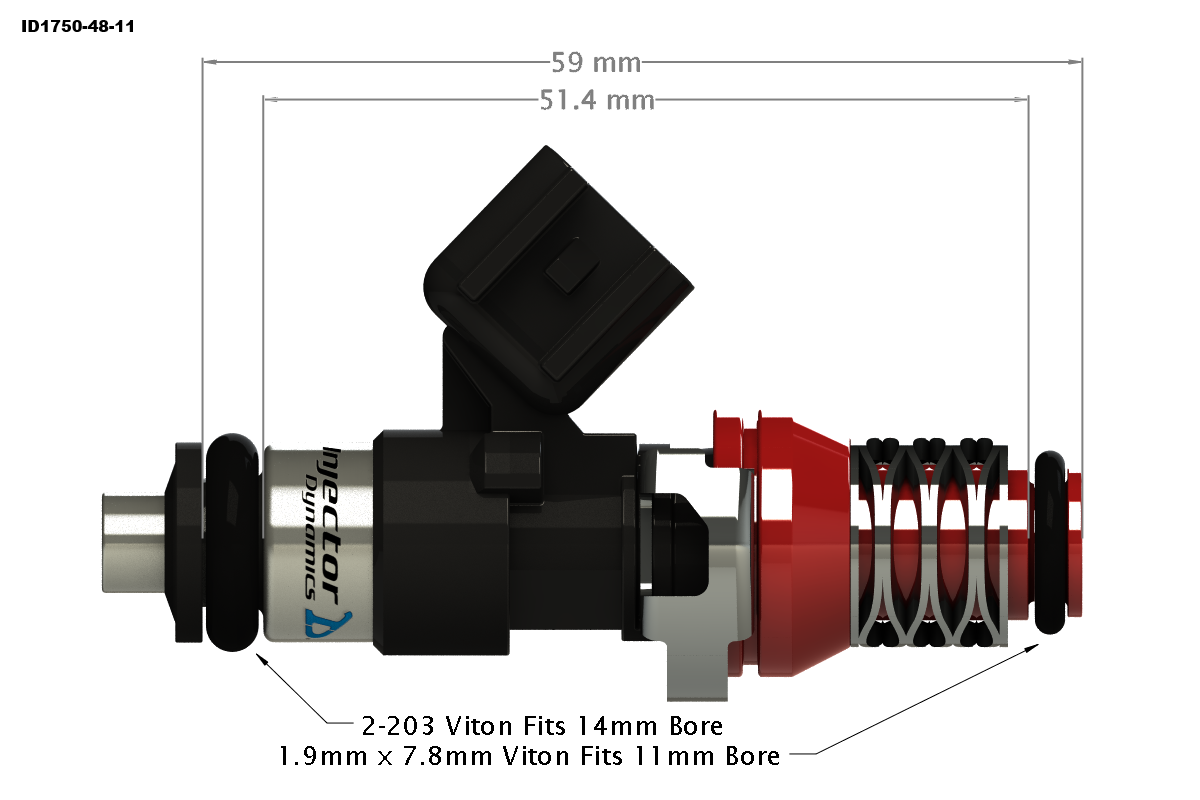

• Configuration: 48mm body, 11mm adapter top, F20B bottom adapter (S2000 cushion configuration)
• Supplied as a flow-matched set with Dual Slope Matching for consistent delivery at low pulse widths

The Details

The ID1750-XDS is the successor to the ID1700x. It adds a higher dynamic flow rate with no increase in minimum fuel mass, better cylinder-to-cylinder balance at low pulse widths, and improved pressure sensitivity, while keeping the "compatible with everything but dirt" corrosion resistance the 1700 was known for. It sits between the 1300 and 2600 in the XDS lineup, sized for serious ethanol and methanol builds that have outgrown the 1300 class. Every set ships flow matched, and Injector Dynamics publishes full characterization data, including slope, offset (dead time) versus voltage and pressure, and short pulse width behavior, so your tuner can load real numbers instead of chasing fuel trims across the map. Accurate dead times are what make large injectors behave at idle and cruise, and they are the reason these tune quickly and stay tuned. This configuration uses machined top adapters (already fitted) to suit the rail height listed above. The F20B bottom adapter suits the 2000-2005 S2000 intake manifold. If your harness does not have USCAR plugs, the matching ID plug and play adapter is 91.2 (USCAR to OBD2), available separately, no cutting or soldering required.

Fitment Notes

• Honda Accord 03-07: 03-07 Accord / J-series V6. 11mm (red) adapters. S2K lower.
• Honda Odyssey 02-04: 02-04 Odyssey / J-series V6. 11mm (red) adapters. S2K lower.
• Honda CL 01-03: 01-03 CL / J-series V6. 11mm (red) adapters. S2K lower.
• Honda TL 01-03: 01-03 TL / J-series V6. 11mm (red) adapters. S2K lower.

Kit Includes

• 1 Set of 6 - ID1750-XDS Fuel Injectors

Applications

• 2003-2007 Honda Accord - Accord 03-07
• 2002-2004 Honda Odyssey - Odyssey 02-04
• 2001-2003 Acura CL - CL 01-03
• 2001-2003 Acura TL - TL 01-03
