Injector Dynamics ID1750-XDS Fuel Injectors | Set of 4 | Kawasaki ZX10 / Kawasaki ZX14 (1750.34.11.D.4)

Duty cycle pegged at 95 percent is not a tune, it is a warning.

Once boost and ethanol enter the picture, factory injectors become the first hard ceiling in the whole combination. The ID1750-XDS answers that with 1728cc/min of flow at 3.0 bar, compatibility with methanol, ethanol, and all known hydrocarbon fuels, delivered as a matched set of 4 for your Kawasaki ZX10 / Kawasaki ZX14. Each set is flow matched using Dual Slope Matching and backed by full characterization data, so your ECU gets real numbers, not estimates. Fueling you can build a tune on.

What You'll Feel

• Fuel trims that stay put season to season instead of drifting with the weather
• Cylinder-to-cylinder consistency you can see in your lambda and EGT logs
• Crisp part-throttle response instead of the surge and stumble big injectors are known for
• Headroom to grow the build without touching the fuel system again
• Faster dyno sessions, because accurate injector data means less time chasing fuel trims

Features

• Nominal flow rate: 1728cc/min at 3.0 bar (43.5 psi), measured with E10 emissions certification fuel at 49 degrees C (120 degrees F)
• Maximum differential fuel pressure: 7.0 bar (101.5 psi)
• Compatible with methanol, ethanol, MTBE, nitromethane, and all known hydrocarbon fuels
• Corrosion resistant construction for long service life on alcohol fuels
• USCAR electrical connector

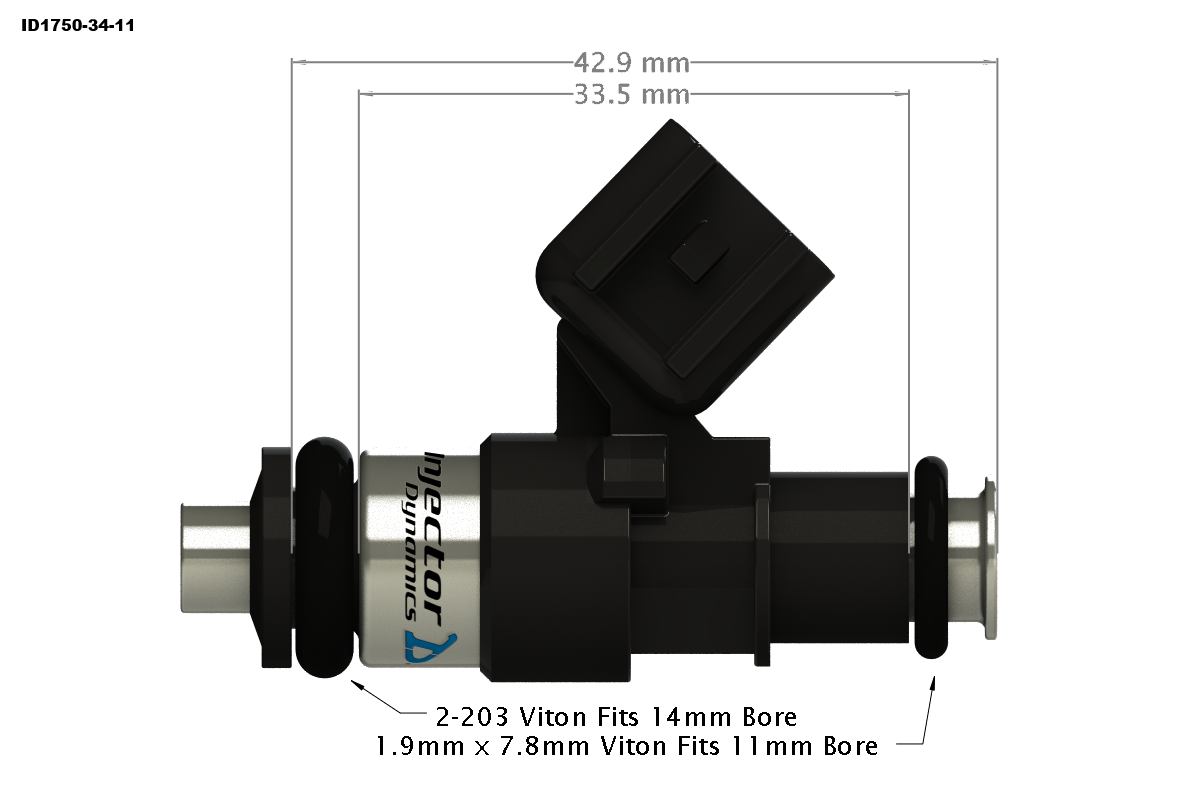

• Configuration: 34mm body, 11mm top (no adapter), Denso lower cushion
• Supplied as a flow-matched set with Dual Slope Matching for consistent delivery at low pulse widths

The Details

The ID1750-XDS is the successor to the ID1700x. It adds a higher dynamic flow rate with no increase in minimum fuel mass, better cylinder-to-cylinder balance at low pulse widths, and improved pressure sensitivity, while keeping the "compatible with everything but dirt" corrosion resistance the 1700 was known for. It sits between the 1300 and 2600 in the XDS lineup, sized for serious ethanol and methanol builds that have outgrown the 1300 class. Every set ships flow matched, and Injector Dynamics publishes full characterization data, including slope, offset (dead time) versus voltage and pressure, and short pulse width behavior, so your tuner can load real numbers instead of chasing fuel trims across the map. Accurate dead times are what make large injectors behave at idle and cruise, and they are the reason these tune quickly and stay tuned. This is the short 34mm body with no top adapter, a direct fit where the rail was designed for short injectors. The Denso lower cushion seats these in Denso-style manifold bores. If your harness does not have USCAR plugs, plug and play connector adapters are available separately, no cutting or soldering required.

Kit Includes

• 1 Set of 4 - ID1750-XDS Fuel Injectors

Applications

• Kawasaki ZX10
• Kawasaki ZX14
