Injector Dynamics ID1750-XDS Fuel Injectors | Set of 2 | 1979-1995 Mazda RX-7 (1750.11.06.60.14.2)

Duty cycle pegged at 95 percent is not a tune, it is a warning.

A factory fuel system that was sized for stock power runs out of injector long before a built engine runs out of airflow. The ID1750-XDS answers that with 1728cc/min of flow at 3.0 bar, compatibility with methanol, ethanol, and all known hydrocarbon fuels, delivered as a matched set of 2 for your 1979-1995 Mazda RX-7. Each set is flow matched using Dual Slope Matching and backed by full characterization data, so your ECU gets real numbers, not estimates. Matched hardware and real data, nothing left to guess at.

What You'll Feel

• Fuel trims that stay put season to season instead of drifting with the weather
• Headroom to grow the build without touching the fuel system again
• Cylinder-to-cylinder consistency you can see in your lambda and EGT logs
• Faster dyno sessions, because accurate injector data means less time chasing fuel trims
• Stock-like idle and clean cold starts, even at this injector size

Features

• Nominal flow rate: 1728cc/min at 3.0 bar (43.5 psi), measured with E10 emissions certification fuel at 49 degrees C (120 degrees F)
• Maximum differential fuel pressure: 7.0 bar (101.5 psi)
• Compatible with methanol, ethanol, MTBE, nitromethane, and all known hydrocarbon fuels
• Corrosion resistant construction for long service life on alcohol fuels
• USCAR electrical connector

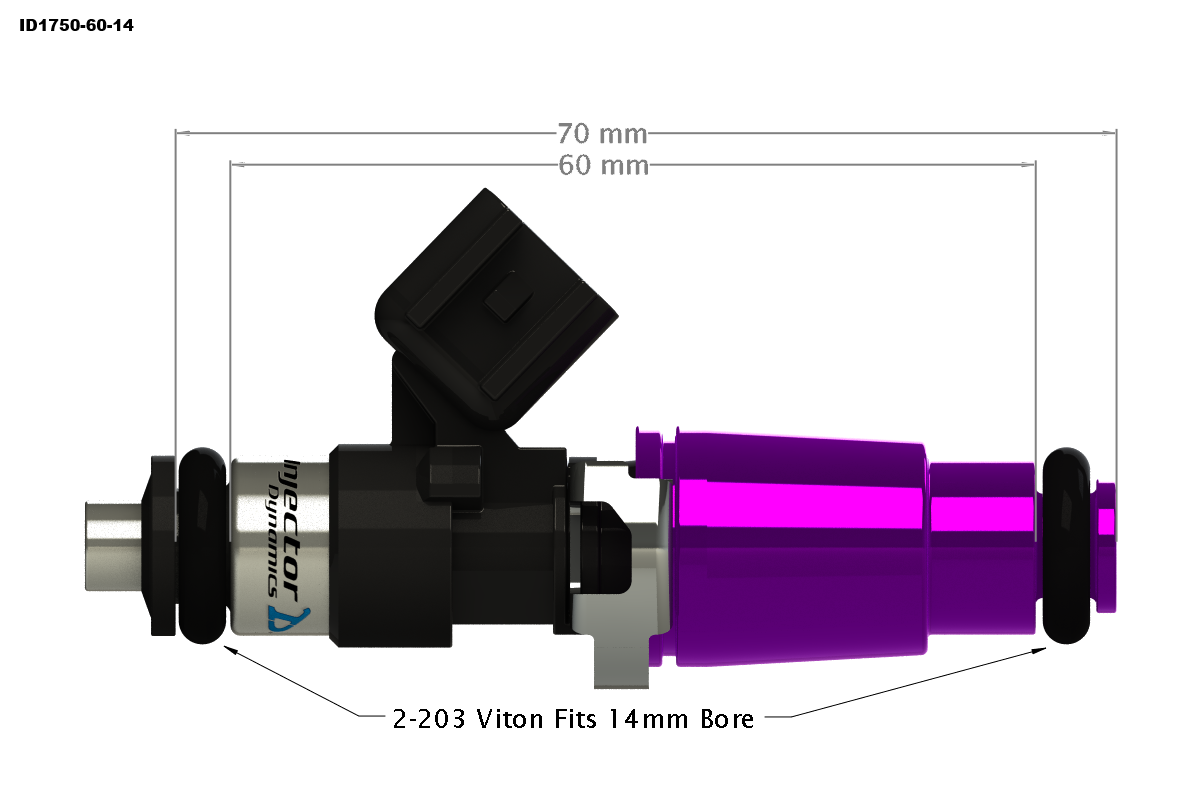

• Configuration: 60mm body, 14mm top, application-specific lower fitment
• Supplied as a flow-matched set with Dual Slope Matching for consistent delivery at low pulse widths

The Details

The ID1750-XDS is the successor to the ID1700x. It adds a higher dynamic flow rate with no increase in minimum fuel mass, better cylinder-to-cylinder balance at low pulse widths, and improved pressure sensitivity, while keeping the "compatible with everything but dirt" corrosion resistance the 1700 was known for. It sits between the 1300 and 2600 in the XDS lineup, sized for serious ethanol and methanol builds that have outgrown the 1300 class. Every set ships flow matched, and Injector Dynamics publishes full characterization data, including slope, offset (dead time) versus voltage and pressure, and short pulse width behavior, so your tuner can load real numbers instead of chasing fuel trims across the map. Accurate dead times are what make large injectors behave at idle and cruise, and they are the reason these tune quickly and stay tuned. This is an application-specific part number with machined fitment hardware, so it drops in without guessing at adapters. If your harness does not have USCAR plugs, the matching ID plug and play adapter is 91.1 (USCAR to EV1) or 91.3 (USCAR to Denso), available separately, no cutting or soldering required.

Fitment Notes

• Mazda RX-7 79-84 (14mm): 79-86 RX-7. 14mm (purple) adapters. -204 / 14mm lower o-rings.
• Mazda RX-7 85-86 (14mm): 79-86 RX-7. 14mm (purple) adapters. -204 / 14mm lower o-rings.
• Mazda RX-7 87-92 (14mm): 87-88 RX-7 (incl. Turbo II). 14mm (purple) adapter top. -204 / 14mm lower o-rings.
• Mazda RX-7 93-95 (14mm): 93-95 RX-7, Requires Top Feed Conversion. 14mm (purple) adapters. -204 / 14mm lower o-rings.

Kit Includes

• 1 Set of 2 - ID1750-XDS Fuel Injectors

Applications

• 1979-1984 Mazda RX-7 - RX-7 79-84 (14mm)
• 1985-1986 Mazda RX-7 - RX-7 85-86 (14mm)
• 1987-1992 Mazda RX-7 - RX-7 87-92 (14mm)
• 1993-1995 Mazda RX-7 - RX-7 93-95 (14mm)
