Injector Dynamics ID1050-XDS Fuel Injectors | Set of 8 | 48mm, 14mm Adapter Top, 15mm Lower O-Ring (1050.48.14.15.8)

Maxed-out injectors turn every dyno pull into a gamble.

Undersized injectors force high duty cycles, hot injector bodies, and fueling that gets less predictable exactly when you need it most. The ID1050-XDS (the current evolution of the ID1050x) answers that with 1065cc/min of flow at 3.0 bar, compatibility with all known fuels including E85, delivered as a matched set of 8 for your 48mm, 14mm Adapter Top, 15mm Lower O-Ring. Each set is flow matched using Dual Slope Matching and backed by full characterization data, so your ECU gets real numbers, not estimates. Sized right, characterized right, tuned right.

What You'll Feel

• Stock-like idle and clean cold starts, even at this injector size
• Steady AFRs when boost climbs, no lean spikes at the top of the pull
• Faster dyno sessions, because accurate injector data means less time chasing fuel trims
• Confidence to run ethanol daily without worrying what it is doing to your injectors
• Fuel trims that stay put season to season instead of drifting with the weather

Features

• Nominal flow rate: 1065cc/min at 3.0 bar (43.5 psi), measured with gasoline at 52 degrees C
• Maximum differential fuel pressure: 10.0 bar (145.0 psi)
• Compatible with all known fuels, including gasoline, E85, and ethanol blends
• USCAR electrical connector
• Configuration: 48mm body, 14mm adapter top, 15mm lower o-ring
• Supplied as a flow-matched set with Dual Slope Matching for consistent delivery at low pulse widths
• Corrosion resistant internals for extended service life on ethanol and other corrosive fuels

The Details

The ID1050-XDS is the current evolution of the ID1050x, built to spec with Bosch Motorsport rather than modified from a production part. Dual Slope Matching matches flow in both the linear and nonlinear range, so cylinder-to-cylinder delivery stays consistent even at the short pulse widths where big injectors usually get ugly. Every set ships flow matched, and Injector Dynamics publishes full characterization data, including slope, offset (dead time) versus voltage and pressure, and short pulse width behavior, so your tuner can load real numbers instead of chasing fuel trims across the map. Accurate dead times are what make large injectors behave at idle and cruise, and they are the reason these tune quickly and stay tuned. This configuration uses machined top adapters (already fitted) to suit the rail height listed above. If your harness does not have USCAR plugs, plug and play connector adapters are available separately, no cutting or soldering required.

Kit Includes

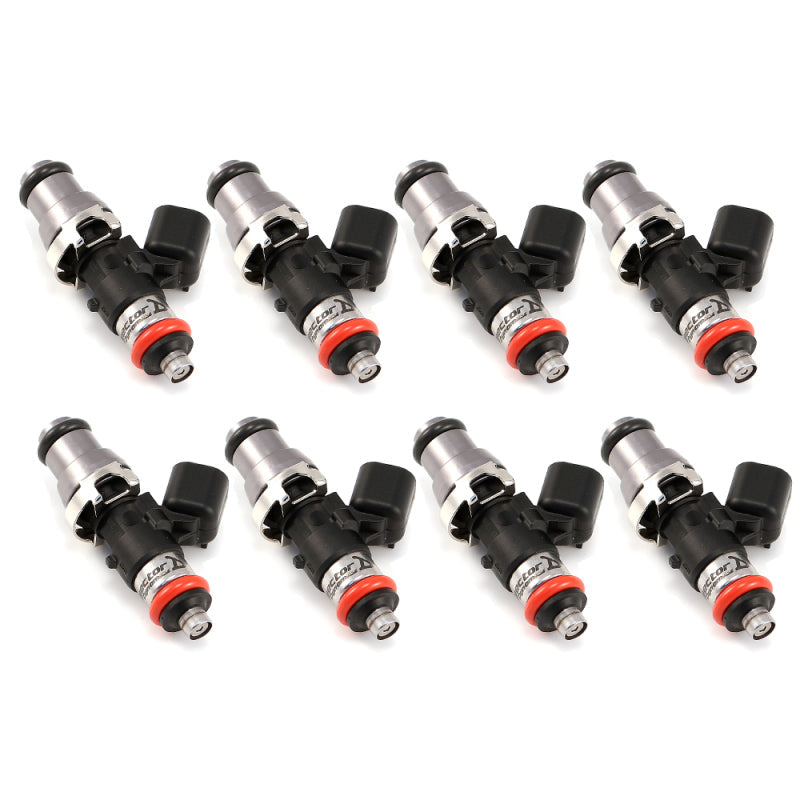

• 1 x set of 8 ID1050-XDS fuel injectors

Applications

• Universal, 48mm body, 14mm adapter top, 15mm lower o-ring, USCAR connector
• [SPEC: CONFIRMED VEHICLE APPLICATIONS]
