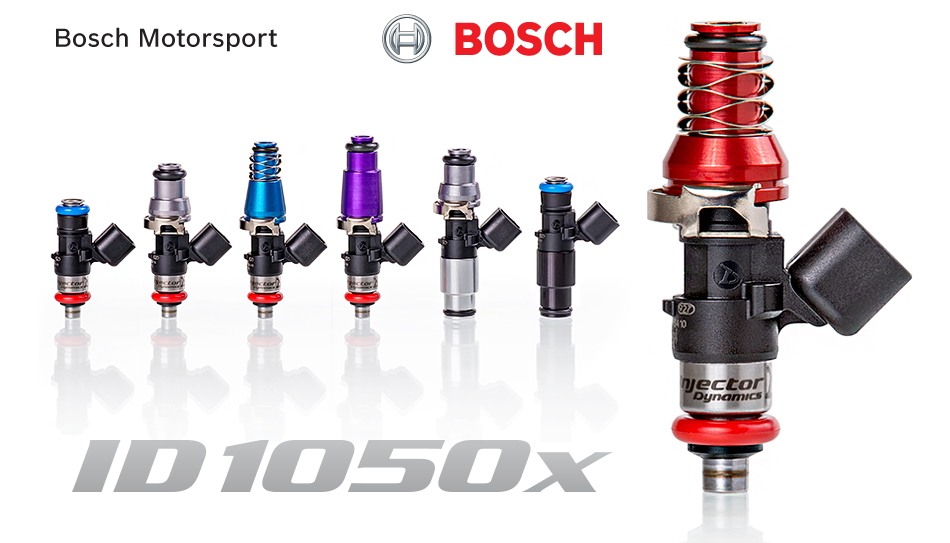

ID1050-XDS fuel injectors set of 4 for universal fitment, sold by Tuned By Shawn

Vendor:Injector Dynamics

Injector Dynamics ID1050-XDS Fuel Injectors | Set of 4 | Multiple Fitments (1050.17.01.60.11.4)

SKU: IDY 1050.17.01.60.11.4

$656.04
From Shawn: Not sure this product is right for your build? Email me at service@tunedbyshawn.com before you order. I answer these myself.

ECUs always ship FREE with Tuned By Shawn!

Manufacturer Limited Warranty

Product details

Description

Mismatched injectors make every cylinder run its own tune.

Undersized injectors force high duty cycles, hot injector bodies, and fueling that gets less predictable exactly when you need it most. The ID1050-XDS (the current evolution of the ID1050x) answers that with 1065cc/min of flow at 3.0 bar, compatibility with all known fuels including E85, delivered as a matched set of 4. Each set is flow matched using Dual Slope Matching and backed by full characterization data, so your ECU gets real numbers, not estimates. It is the boring, repeatable fueling every serious build needs.

What You'll Feel

  • Stock-like idle and clean cold starts, even at this injector size
  • Confidence to run ethanol daily without worrying what it is doing to your injectors
  • Steady AFRs when boost climbs, no lean spikes at the top of the pull
  • Cylinder-to-cylinder consistency you can see in your lambda and EGT logs
  • Crisp part-throttle response instead of the surge and stumble big injectors are known for

Features

  • Nominal flow rate: 1065cc/min at 3.0 bar (43.5 psi), measured with gasoline at 52 degrees C
  • Maximum differential fuel pressure: 10.0 bar (145.0 psi)
  • Compatible with all known fuels, including gasoline, E85, and ethanol blends
  • USCAR electrical connector
  • Supplied as a flow-matched set with Dual Slope Matching for consistent delivery at low pulse widths
  • Corrosion resistant internals for extended service life on ethanol and other corrosive fuels

The Details

The ID1050-XDS is the current evolution of the ID1050x, built to spec with Bosch Motorsport rather than modified from a production part. Dual Slope Matching matches flow in both the linear and nonlinear range, so cylinder-to-cylinder delivery stays consistent even at the short pulse widths where big injectors usually get ugly. Every set ships flow matched, and Injector Dynamics publishes full characterization data, including slope, offset (dead time) versus voltage and pressure, and short pulse width behavior, so your tuner can load real numbers instead of chasing fuel trims across the map. Accurate dead times are what make large injectors behave at idle and cruise, and they are the reason these tune quickly and stay tuned.

Kit Includes

  • 1 x set of 4 ID1050-XDS fuel injectors

Applications

  • [SPEC: CONFIRMED VEHICLE APPLICATIONS]
