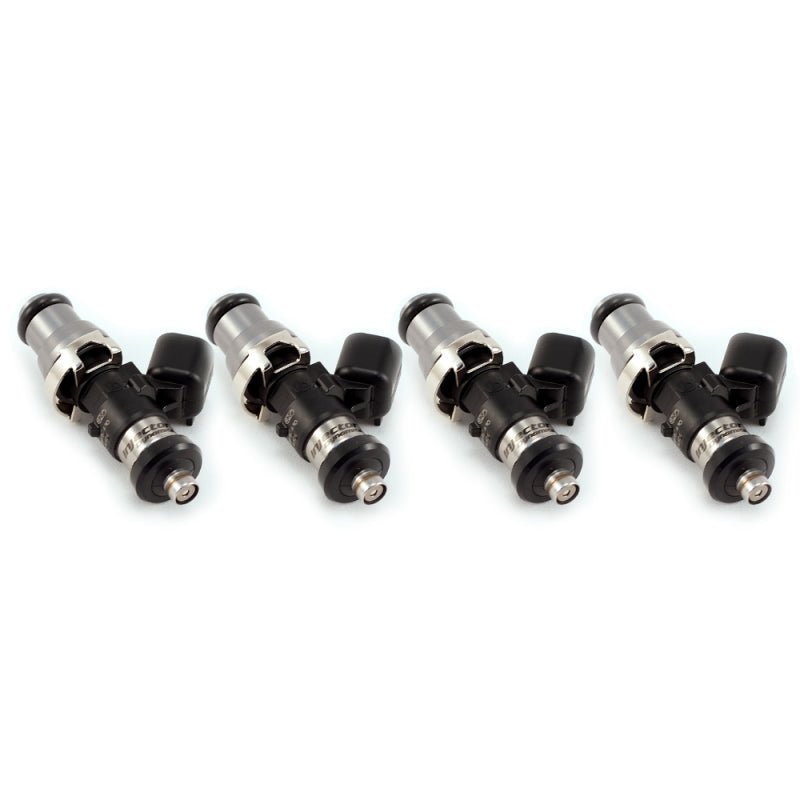

ID1050-XDS fuel injectors set of 4 for 2012-2015 Honda Civic Si, sold by Tuned By Shawn

Vendor:Injector Dynamics

Injector Dynamics ID1050-XDS Fuel Injectors | Set of 4 | 2012-2015 Honda Civic Si (1050.07.21.48.14.4)

SKU: IDY 1050.07.21.48.14.4

$600.60
From Shawn: Not sure this product is right for your build? Email me at service@tunedbyshawn.com before you order. I answer these myself.

ECUs always ship FREE with Tuned By Shawn!

Manufacturer Limited Warranty

Product details

Description

An E85 build is only as good as the injectors feeding it.

A factory fuel system that was sized for stock power runs out of injector long before a built engine runs out of airflow, and 2012-2015 Honda Civic Si builds hit that wall early. The ID1050-XDS (the current evolution of the ID1050x) answers that with 1065cc/min of flow at 3.0 bar, compatibility with all known fuels including E85, delivered as a matched set of 4 for your 2012-2015 Honda Civic Si. Each set is flow matched using Dual Slope Matching and backed by full characterization data, so your ECU gets real numbers, not estimates. This is what consistent fueling actually looks like.

What You'll Feel

  • Steady AFRs when boost climbs, no lean spikes at the top of the pull
  • Headroom to grow the build without touching the fuel system again
  • Cylinder-to-cylinder consistency you can see in your lambda and EGT logs
  • Fuel trims that stay put season to season instead of drifting with the weather
  • Stock-like idle and clean cold starts, even at this injector size

Features

  • Nominal flow rate: 1065cc/min at 3.0 bar (43.5 psi), measured with gasoline at 52 degrees C
  • Maximum differential fuel pressure: 10.0 bar (145.0 psi)
  • Compatible with all known fuels, including gasoline, E85, and ethanol blends
  • USCAR electrical connector
  • Supplied as a flow-matched set with Dual Slope Matching for consistent delivery at low pulse widths
  • Corrosion resistant internals for extended service life on ethanol and other corrosive fuels

The Details

The ID1050-XDS is the current evolution of the ID1050x, built to spec with Bosch Motorsport rather than modified from a production part. Dual Slope Matching matches flow in both the linear and nonlinear range, so cylinder-to-cylinder delivery stays consistent even at the short pulse widths where big injectors usually get ugly. Every set ships flow matched, and Injector Dynamics publishes full characterization data, including slope, offset (dead time) versus voltage and pressure, and short pulse width behavior, so your tuner can load real numbers instead of chasing fuel trims across the map. Accurate dead times are what make large injectors behave at idle and cruise, and they are the reason these tune quickly and stay tuned.

Kit Includes

  • 1 x set of 4 ID1050-XDS fuel injectors

Applications

  • [SPEC: CONFIRMED VEHICLE APPLICATIONS]
