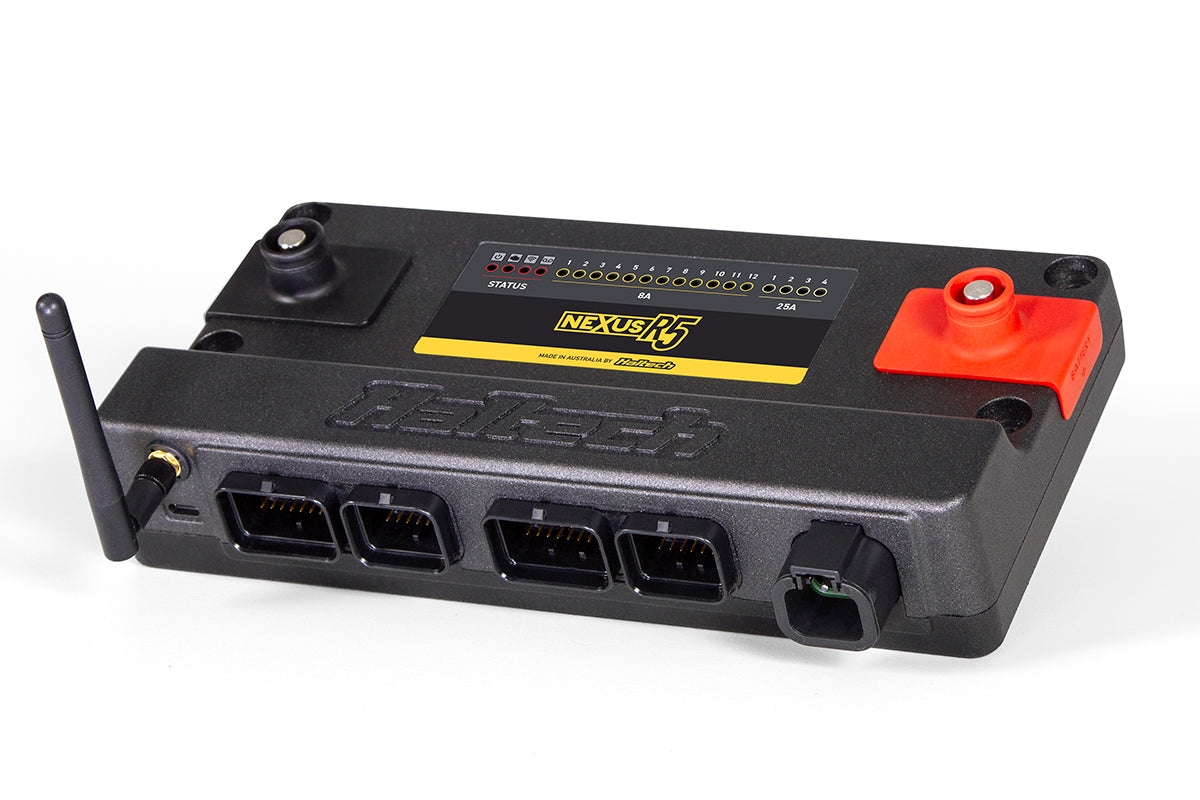

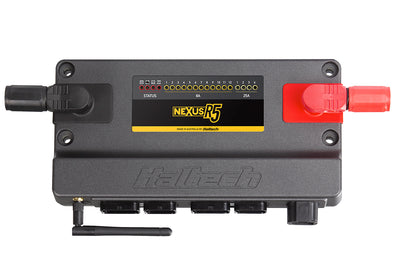

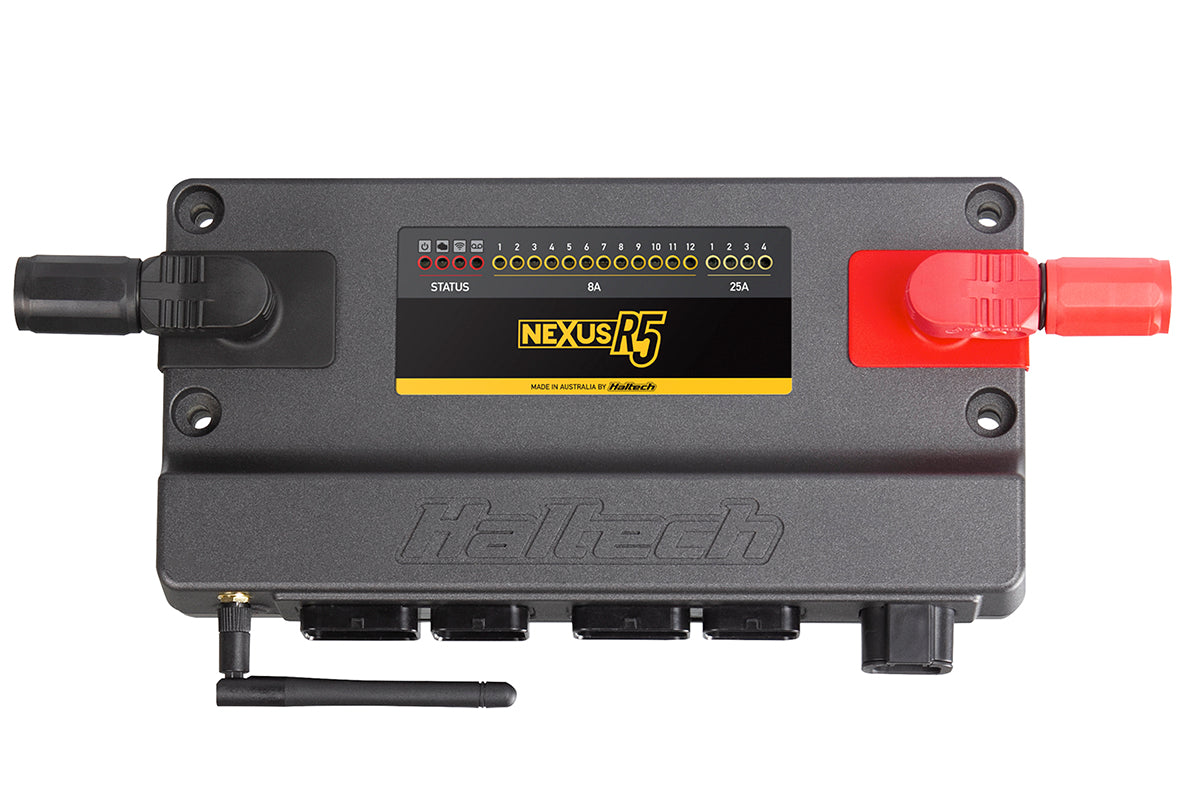

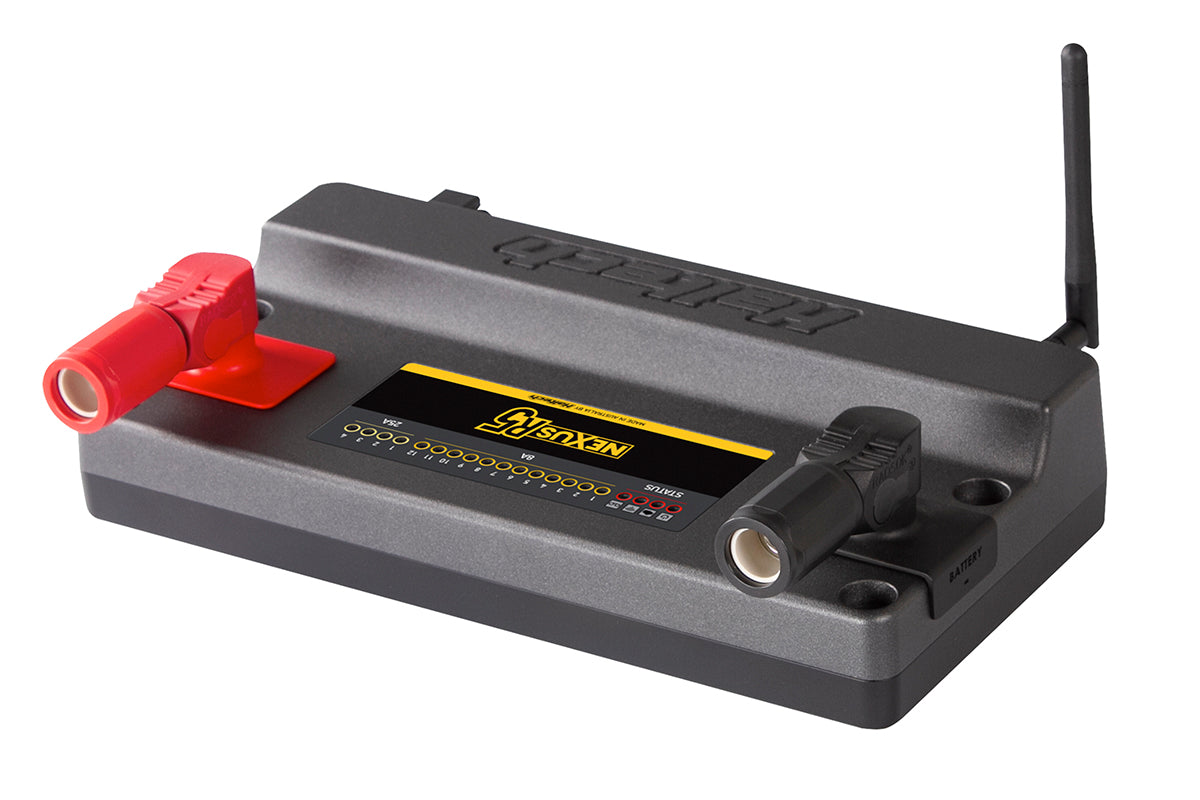

NEXUS R5 +Plug and Pin Set


SUITS: Racing application where advanced race features, data logging and power management control is required.

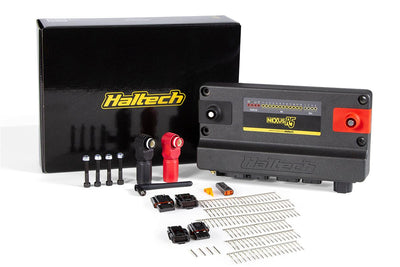

INCLUDES: NEXUS R5 VCU, SurLok connectors (Red and Black), Wi-Fi antenna, mounting bolts, USB-C Cable, USB-C dust cap, USB drive with NSP Software. Plug and pin set AMP 26 pin key 1 and 3, 34 pin key 1 and 2, DTP-4.

OVERVIEW


  • use in converting an existing loom to suit NEXUS R5 applications.
    VCU OVERVIEW
    NEXUS R5 is the new Haltech flagship product combining the functionality of a power distribution module, a data logger, a dual channel wideband controller and a state-of-the art engine management system in one powerful device we call a VCU (Vehicle Control Unit).
    • 4 x 25A (continuous) push-pull PWM capable (5 kHz) outputs (for power to injectors / coils, transbrake, thermofan, fuel pump)
    • 12 x 8A (continuous) high side outputs (low speed PWM, 200 Hz) outputs (power to sensors, NOS solenoids, etc)
    • 18 x peak/hold injector drivers (can be used as low side drive outputs)
    • 12 x low current ignition outputs (can be used as low side drive outputs)
    • 8 x low side drive outputs, PWM capable (DPOs)
    • 4 x push-pull / h-bridge outputs (8A, PWM capable), eg for electronic throttle
    • 23 x 0-5V analog inputs with redunancy for electronic throttle and switchable 5V pullup
    • Trigger and home inputs with differential inputs, adjustable thresholds and glitch filters
    • 10 x synchronous pulsed inputs, zero crossing or adjustable thresholds - cam sensor inputs, frequency inputs or 0-5V analog inputs
    • 2 x onboard wideband controllers, supporting NTK and LSU4.9
    • 3 x CAN ports with switchable termination

    FEATURES


    VCU FEATURES

    • Long Term Learning
    • Stepper Motor Control
    • 4D Closed Loop Boost Control
    • Closed Loop CO2 Control
    • Rotational Idle
    • Launch Control
    • Traction Control
    • Anti-Lag
    • Dual Knock Control
    • Trans Brake Control
    • Race Timer
    • Multi Stage Fuel Injection
    • Multi-level Engine Protection
    • 6 Stage Nitrous Control
    • 4-sensor variable cam control
    • Intake Air Bleed Control
    • Flat Shift Control
    • Shock Travel & Ride Height Control
    • Advanced Torque Management

    AUTOMATIC TRANSMISSION CONTROL

    • Ford AODE/4R70W
    • GM 4L60E

    • GM 4L80E

    • Toyota A340E
    • Lenco
    • Liberty

    ECU Comparison Table

    OUTPUTS
    Elite VMS/VMST
    Elite 550
    Elite 750
    Elite 950
    Elite 1000
    Elite 1500
    Elite 2000
    Elite 2500/T
    NEXUS R5
    Platinum Pro Plugin
    Platinum Sport GM
    Injection
    0
    1 to 4
    1 to 6
    1 to 8
    1 to 4
    1 to 4
    1 to 8
    1 to 8
    18
    as per OEM
    2
    Ignition
    8
    1 to 4
    1 to 6
    1 to 4
    1 to 4
    1 to 4
    1 to 8
    1 to 8
    12
    as per OEM
    1
    Eng Cont Relay
    0
    0
    0
    0
    1
    1
    1
    1
    Up to 6
    as per OEM
    as per OEM
    User Definable
    9
    5
    5
    5
    9
    11
    9
    11
    28
    4
    4
    Total
    17
    13
    17
    17
    18
    20
    26
    28
    58
    N/A
    N/A
    INPUTS
    Elite VMS/VMST
    Elite 550
    Elite 750
    Elite 950
    Elite 1000
    Elite 1500
    Elite 2000
    Elite 2500/T
    NEXUS R5
    Platinum Pro Plugin
    Platinum Sport GM
    Dedicated
    3
    6
    3
    3
    5
    5
    6
    6
    7
    as per OEM
    as per OEM
    User Definable
    7
    2
    7
    7
    14
    14
    14
    14
    33
    4
    4
    Total
    10
    8
    10
    10
    19
    19
    20
    20
    40
    N/A
    N/A
    FEATURES
    Elite VMS/VMST
    Elite 550
    Elite 750
    Elite 950
    Elite 1000
    Elite 1500
    Elite 2000
    Elite 2500/T
    NEXUS R5
    Platinum Pro Plugin
    Platinum Sport GM
    Waterproofing
    YES
    YES
    YES
    YES
    YES
    YES
    YES
    YES
    YES
    NO
    NO
    Drive By Wire
    NO
    NO
    NO
    NO
    NO
    Single
    NO
    Single
    Dual
    Single
    NO
    Flex Fuel Input
    NO
    YES
    YES
    YES
    YES
    YES
    YES
    YES
    YES
    YES
    YES
    Closed Loop O2 Control
    NO
    Single
    Single
    Single
    Dual
    Dual
    Dual
    Dual
    Dual
    as per OEM
    Single
    Knock Control
    NO
    NO
    NO
    NO
    Single
    Single
    Dual
    Dual
    Dual
    as per OEM
    NO
    Variable Cam Control
    NO
    Single
    Single
    Single
    Up to 2
    Up to 4
    Up to 2
    Up to 4
    Up to 4
    as per OEM
    NO
    Long Term Learning
    Up to 3D
    Up to 3D
    Up to 3D
    Up to 3D
    Up to 3D
    Up to 4D
    Up to 3D
    Up to 4D
    Up to 4D
    as per OEM
    NO
    Laptop Data Logging
    YES
    YES
    YES
    YES
    YES
    YES
    YES
    YES
    YES
    YES
    YES
    On-board Data Logging
    YES
    YES
    YES
    YES
    YES
    YES
    YES
    YES
    YES
    YES
    YES
    Anti-Lag / Rotational Idle
    YES
    NO
    NO
    NO
    YES
    YES
    YES
    YES
    YES
    YES
    NO
    Rolling Anti-Lag
    YES
    NO
    NO
    NO
    YES
    YES
    YES
    YES
    YES
    NO
    NO
    Launch Control
    YES
    YES
    YES
    YES
    YES
    YES
    YES
    YES
    YES
    YES
    YES
    Traction Control
    YES (VMST)
    NO
    NO
    NO
    YES
    YES
    YES
    YES
    YES
    NO
    NO
    Tuning Table Resulution
    32x32x8
    16x32
    16x32
    16x32
    32x32
    32x32x8
    32x32
    32x32x8
    32x32x8 4D
    32x32
    32 x 32
    Engine Protection
    Multi-Level
    Single Level
    Single Level
    Single Level
    Single Level
    Multi Level
    Single Level
    Multi Level
    Multi Level
    Single Level
    Single Level
    On-board Wideband
    NO
    NO
    NO
    NO
    NO
    NO
    NO
    NO
    2 x LSU4.9/NTK
    NO
    NO
    IMU
    NO
    NO
    NO
    NO
    NO
    NO
    NO
    NO
    YES
    NO
    NO
    Wi-Fi Comms
    NO
    NO
    NO
    NO
    NO
    NO
    NO
    NO
    YES
    NO
    NO
    RACE FUNCTIONS
    Elite VMS/VMST
    Elite 550
    Elite 750
    Elite 950
    Elite 1000
    Elite 1500
    Elite 2000
    Elite 2500/T
    NEXUS R5
    Platinum Pro Plugin
    Platinum Sport GM
    Nitrous Control
    Up to 6 Stages
    1 Stage
    1 Stage
    1 Stage
    1 Stage
    Up to 6 Stages
    1 Stage
    Up to 6 Stages
    Up to 6 Stages
    1
    1
    Boost Control
    4D
    3D
    3D
    3D
    3D
    4D
    3D
    4D
    4D
    3D
    2D
    CO2 Control
    YES
    NO
    NO
    NO
    NO
    YES
    NO
    YES
    YES
    NO
    NO
    Intake Air Bleed Control
    YES
    NO
    NO
    NO
    NO
    YES
    NO
    YES
    YES
    NO
    NO
    Flat Shift Support
    YES
    Basic
    Basic
    Basic
    Basic
    Advanced
    Basic
    Advanced
    Advanced
    Basic
    Basic
    Intake Air Bleed Control
    YES
    NO
    NO
    NO
    NO
    YES
    NO
    YES
    YES
    NO
    NO
    Shock Travel & Ride Height
    YES
    NO
    NO
    NO
    NO
    YES
    NO
    YES
    YES
    NO
    NO
    Trans Brake
    YES
    NO
    NO
    NO
    NO
    YES
    NO
    YES
    YES
    NO
    NO
    Torque Management
    YES (VMST)
    NO
    NO
    NO
    NO
    NO
    NO
    YES (2500T)
    YES
    NO
    NO
    Race Timer
    YES
    YES
    YES
    YES
    YES
    YES
    YES
    YES
    YES
    YES
    NO
    Shock Travel
    YES
    NO
    NO
    NO
    NO
    YES
    NO
    YES
    YES
    NO
    NO
    Ride Height
    YES
    NO
    NO
    NO
    NO
    YES
    NO
    YES
    YES
    NO
    NO
    Water Injection
    NO
    Basic
    Basic
    Basic
    Advanced
    Advanced
    Advanced
    Advanced
    Advanced
    NO
    NO
