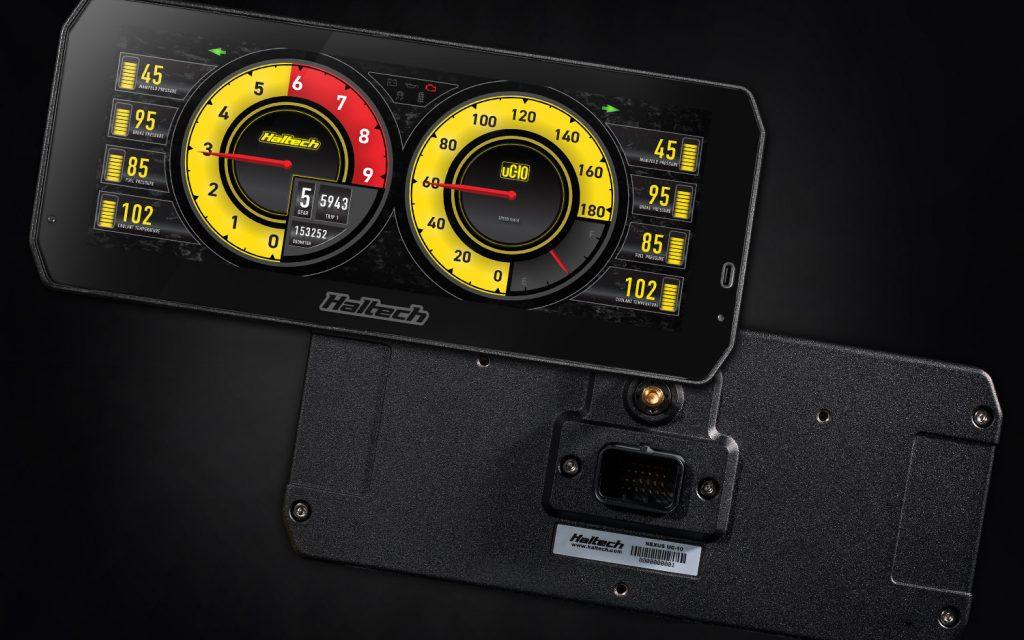

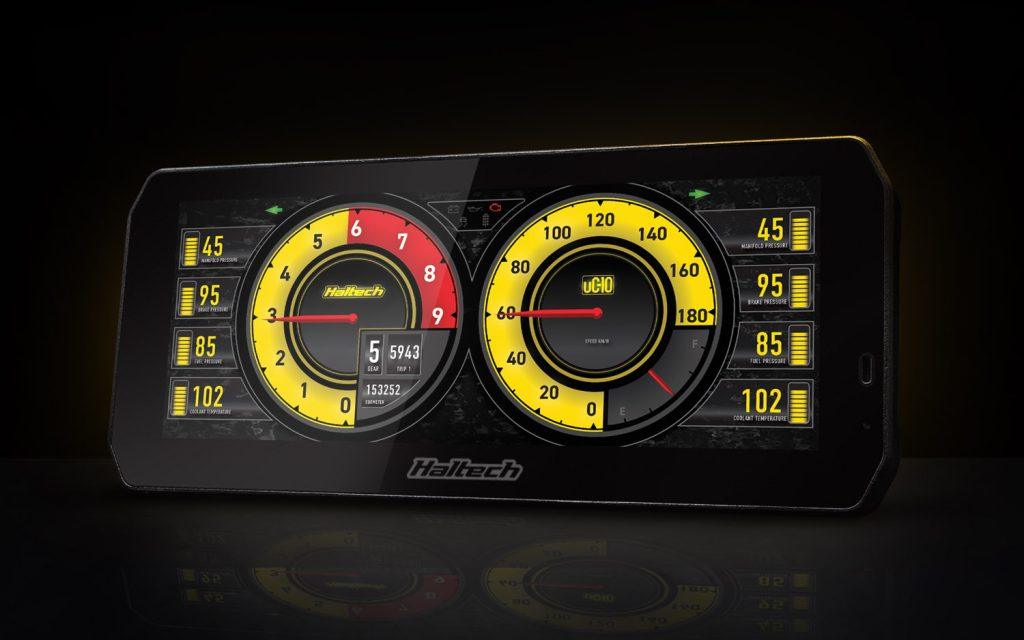

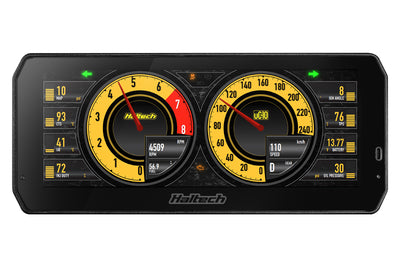

The Haltech uC-10 dash is a classic blend of technology and style. Its 10-inch display offers ample space to monitor critical vehicle data in real-time. The full-colour TFT screen is optically bonded, ensuring crystal-clear visibility even in bright sunlight, and the sleek aluminium enclosure ensures it will look great in any vehicle.
We are accepting orders as pre-order - not available until Q1

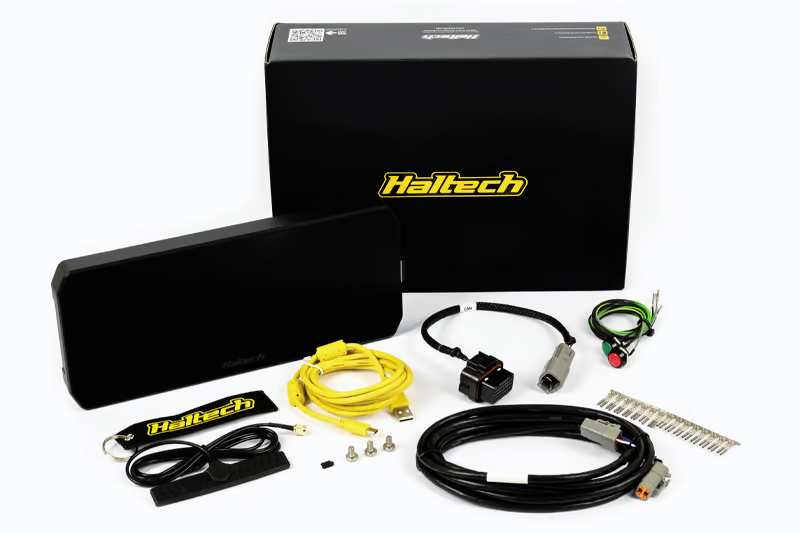

What’s in the box?
1 x Haltech uC-10 10” Colour Display Dash
3 x M5x8mm mounting screws
1 x Haltech fabric keytag
1 x 34P connector
1 x Haltech DTM4 to DTM4 CAN cable 3.0m (120”)
1 x OBDII to CAN cable 1.4m (55”)
2 x Momentary switches, pre-terminated 800mm 22AWG Cable
1 x Glass Mount Wi-Fi antenna
Haltech stickers
Key Features
Compatibility: The uC-10 is compatible with Haltech CAN, OBD2, and selected aftermarket ECU brands. It can also be wired in as a complete stand-alone unit. This versatility ensures that it can seamlessly integrate into a wide range of vehicles and setups.
Expansion
The uC-10 offers plenty of scope for sensors and other inputs in a stand-alone configuration, or for use as an I/O expander in a Haltech environment.
- User Definable I/O: 10 x AVIs, 4 x DPOs, 4 x SPIs.
- Fixed I/O: 1 x Tacho Input and 1 x Alternator Excite.
On-Board Data Logging: The uC-10 comes equipped with 512MB of on-board looped data logging.
NSP compatible: The uC-10 will be compatible with our free NSP software, straight out of the box.
