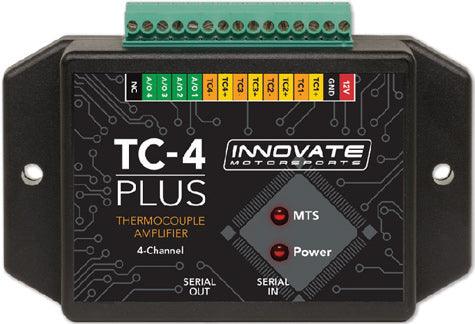

The TC-4 PLUS is 4 channel type-K thermocouple amplifier device that can be used a stand-alone system or as part of a MTS (Modular Tuning System). The TC-4 PLUS includes a digital input/output, 4 full-programmable analog outputs

K-Type thermocouple amplifier that adds 4 temperature inputs to an MTS Log Chain
Temperature range 32-1999 deg F, 0- 1093 deg C
4-Configurable linear 0-5V analog outputs (one per input)
The TC-4 PLUS can be used to measure other temperature metrics such as intercooler inlet, outlet temperature and catalytic converter

What is included?

TC-4 PLUS
Serial Program Cable
Molex to Molex Patch Cable
Manual

Adaptronic Users:

To connect your Innovate Motorsports TC-4 Plus EGT module to the ECU you will use the Molex to Molex Patch cable to go from the Out on the the TC-4 Plus to the IN S1 or S2 on the Adaptronic Modular ECU.
To allow you to see your EGTs in the Eugene software you will go to Functions > Serial Comms - Serial IN 1 or 2 - Set the connection to Innovate - Type None, Number of MTXL, LC2 or LC1 connect to 0. If you are daisy chaining this unit through the Innovate MTX-L plus wideband you will have this device be the end of the daisy chain and the out will go to the IN on the MTX-L wideband and then the out from the MTX-L wideband will go to IN S1 or S2 on the adaptronic Modular ECU and the Number of MTXL, LC2 or LC1 connect to 1.
The Gauge type in Eugene will be Serial EGT 1, 2, 3 or 4 depending on what input on the TC-4 Plus you have the EGT sensor connected.
