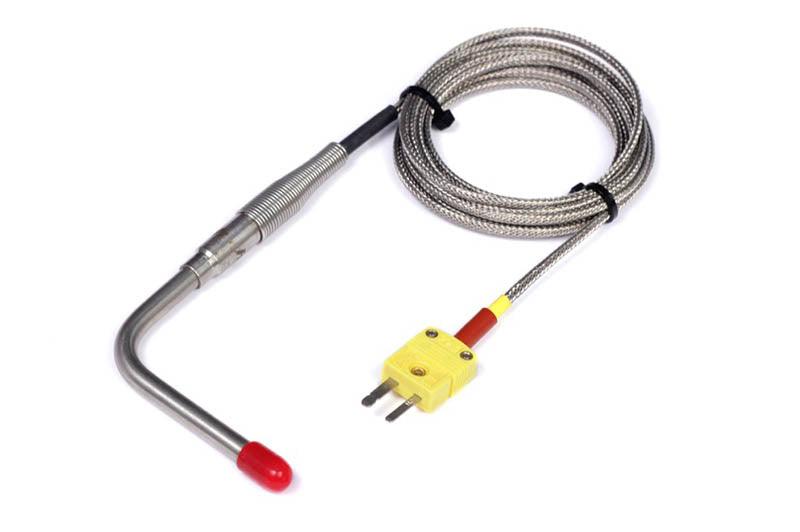

1/4" Open Tip Thermocouple - 1.41m (55.5") (HT-010867)

1/4" Open Tip Thermocouple - 1.41m (55.5") adds a channel your calibration can trust. NA or Forced induction applications. Requires a TCA2 or TCA4 thermocouple amplifier. Genuine Haltech-supplied hardware, matched to Haltech ECU inputs and calibrations in the software.

What You'll See

Exhaust gas temperature per cylinder, the earliest warning a tuned engine gives. A lean hole shows up in EGT before it shows up in damage, and cylinder-to-cylinder spread reveals fueling or airflow imbalance nothing else catches.

The Details

• SKU: HT-010867
• Length: 1.41m (55.5")
• Sensor: K Type thermocouple (Nickel-Chromium / Nickel-Alumel), rated -200°C to 1260°C (-328°F to 2300°F)
• Tip: 1/4" open tip, roughly 200ms response - quick enough to catch a lean cylinder or a misfire as it happens
• Connection: Mini K Type plug into a TCA2, TCA4 or TCA-8 amplifier, which feeds the readings to your ECU or dash over CAN
• Notes: Does not include any fitting hardware. Please order separately if required.

Kit Includes

• Mini K Type connector.

Installation Notes

Mount every probe the same distance from the head and to the same depth, or the cylinder-to-cylinder comparison means nothing. On naturally aspirated engines run the tip toward the centre of the pipe; on forced induction recess it no more than 6mm so the probe survives while still reading true gas temperature. Bungs and fittings are sold separately.

Applications

NA or Forced induction applications. Requires a TCA2 or TCA4 thermocouple amplifier. Check the notes above before ordering; if anything is unclear, send us your setup details and we will confirm.
