Clutch Fork Stop, EVO 8-9-10
SKU:
$37.95
From Shawn: Not sure this product is right for your build? Email me at service@tunedbyshawn.com before you order. I answer these myself.
ECUs always ship FREE with Tuned By Shawn!
Manufacturer Limited Warranty
Clutch Fork Stop, EVO 8-9-10
$37.95
Product details
Description
Click here to download installation instructions (PDF)
COMPATIBILITY
MITSUBISHI EVO 8 with 5-Speed and 6-Speed transmissions
MITSUBISHI EVO 9 with 5-Speed and 6-Speed transmissions
MITSUBISHI EVO 10 with 5-Speed manual transmission
The Radium Engineering clutch fork return stop addresses a common problem on the Mitsubishi EVO pull-type clutch slave cylinder. During hard shifting and fast clutch pedal operation, the clutch fork can return too far and cause the throw-out bearing to become unclipped from the clutch fork. This results in expensive transmission removal to fix. The Radium clutch return stop prevents the fork from over-traveling, eliminating a throw-out bearing issue. Inexpensive insurance to protect your clutch.
The clutch stop is multi-axis CNC machined in order to position the hex bolt precisely square with the clutch fork.

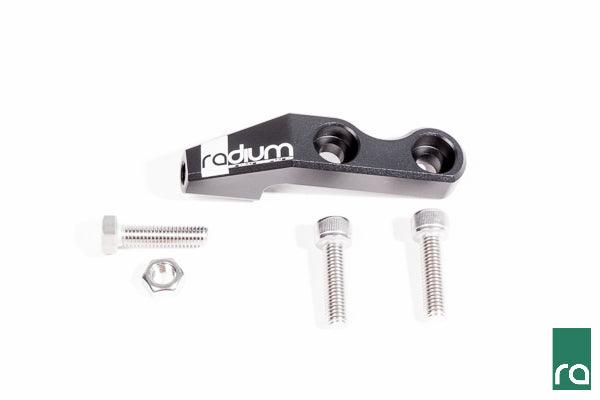

INCLUDES
-CNC machined/anodized clutch fork stop
-Stainless steel adjustment screw and lock nut
-Stainless steel mounting bolts
MITSUBISHI EVO 8 with 5-Speed and 6-Speed transmissions
MITSUBISHI EVO 9 with 5-Speed and 6-Speed transmissions
MITSUBISHI EVO 10 with 5-Speed manual transmission
The Radium Engineering clutch fork return stop addresses a common problem on the Mitsubishi EVO pull-type clutch slave cylinder. During hard shifting and fast clutch pedal operation, the clutch fork can return too far and cause the throw-out bearing to become unclipped from the clutch fork. This results in expensive transmission removal to fix. The Radium clutch return stop prevents the fork from over-traveling, eliminating a throw-out bearing issue. Inexpensive insurance to protect your clutch.
The clutch stop is multi-axis CNC machined in order to position the hex bolt precisely square with the clutch fork.
INCLUDES
-CNC machined/anodized clutch fork stop
-Stainless steel adjustment screw and lock nut
-Stainless steel mounting bolts
