10AN ORB PCV Valves
SKU: TBS-55bc56c2e6
$37.95
From Shawn: Not sure this product is right for your build? Email me at service@tunedbyshawn.com before you order. I answer these myself.
ECUs always ship FREE with Tuned By Shawn!
Manufacturer Limited Warranty
Product details
Description

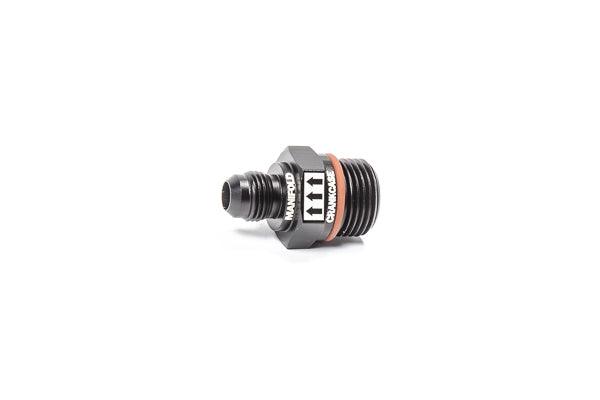

Radium Engineering valve for PCV (positive crankcase ventilation) systems. Do not mistake this for a simple one-way check valve. The PCV valve's internal plunger dynamically meters the appropriate amount of crankcase vent airflow based on current engine load. Proper PCV valves prevent the "vacuum leak" that a check valve would create at low loads. Also, in the event of a backfire, the PCV valve prevents combustible vapors from igniting in the crankcase.
The PCV valves can be used on the outlet of any Radium Engineering Catch Can (shown above) or any related part that uses -10AN ORB threads.
SPECIFICATIONS
Aluminum: 6061 Type-II Anodized
Sealing O-rings: FKM and Silicone
Inlet: 10AN ORB (7/8"-14 threads)
Outlet (20-0530): 3/8" Barb (9.5mm)
Outlet (20-0561): 6AN Male
The PCV valves can be used on the outlet of any Radium Engineering Catch Can (shown above) or any related part that uses -10AN ORB threads.
SPECIFICATIONS
Aluminum: 6061 Type-II Anodized
Sealing O-rings: FKM and Silicone
Inlet: 10AN ORB (7/8"-14 threads)
Outlet (20-0530): 3/8" Barb (9.5mm)
Outlet (20-0561): 6AN Male
