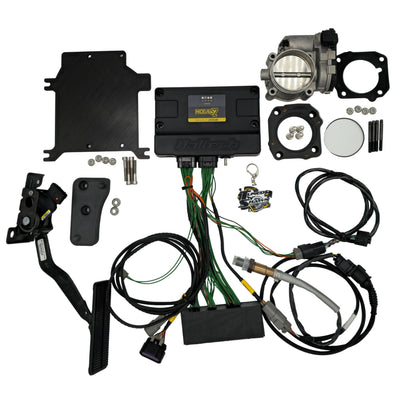

TunedByShawn Haltech Honda S2000 AP1 Drive By Wire Plug and Play System (TBS-A104)
$4,399.00
Shipping calculated at checkout.
SKU: TBS-A104
Nexus Must-Haves
ECU
Engine management
Plug-In Fitment
No wiring needed
Drive By Wire
Electronic throttle
Wideband O2
Sensor included
Complete Kit
ECU plus harness
From Shawn: Not sure this product is right for your build? Email me at service@tunedbyshawn.com before you order. I answer these myself.
ECUs always ship FREE with Tuned By Shawn!
Manufacturer Limited Warranty
TunedByShawn Haltech Honda S2000 AP1 Drive By Wire Plug and Play System (TBS-A104)
$4,399.00
Product details
Description
NEW TunedByShawn AP1 S2000 Haltech DBW System!
Completely plug and play. Convert your car to a Haltech with all the benefits of drive by wire (Such as Rev Match Downshifting), and all of the amazing features of a Haltech Nexus S2 ECU!

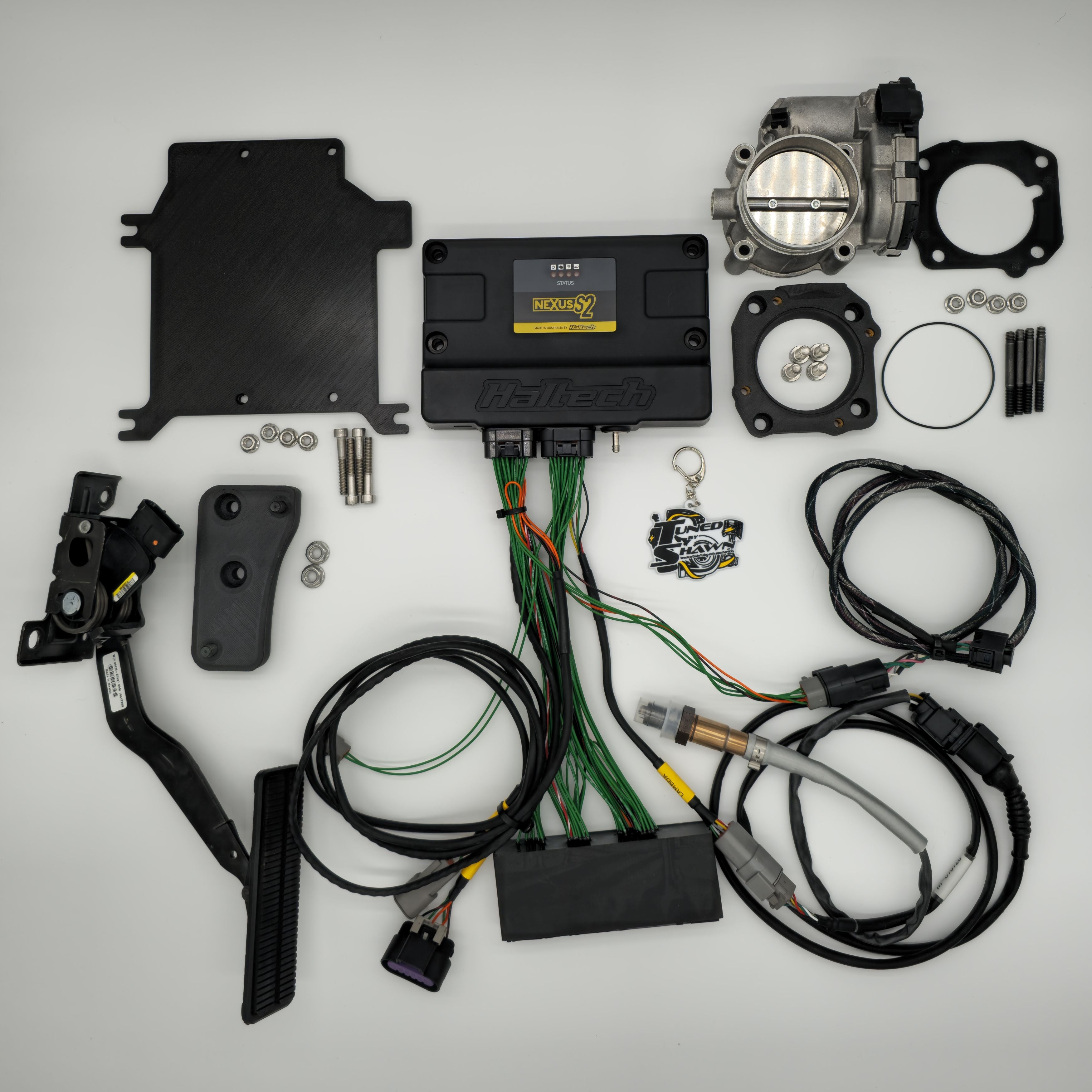

Includes:
-Haltech Nexus S2 ECU

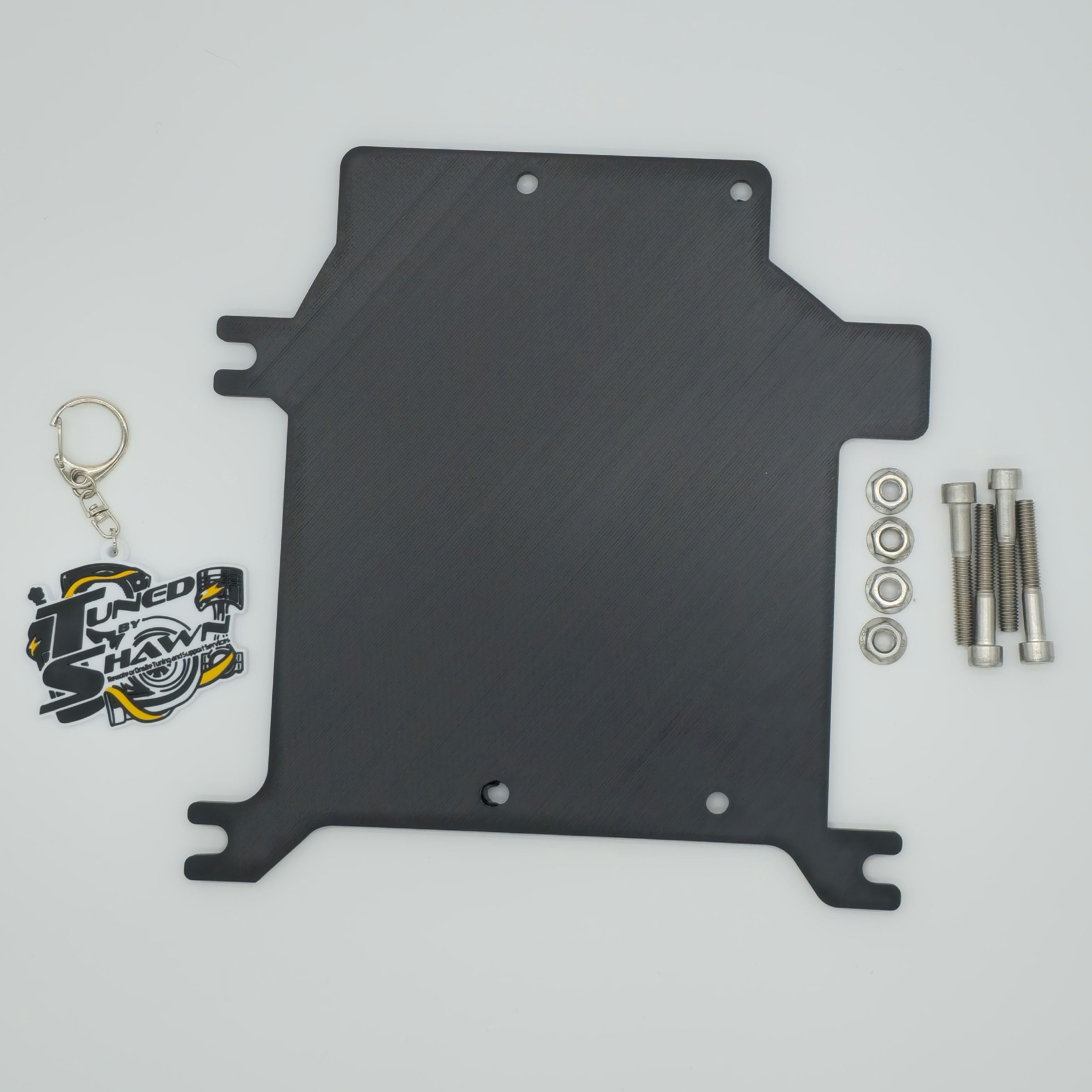

-TunedByShawn ECU Mount

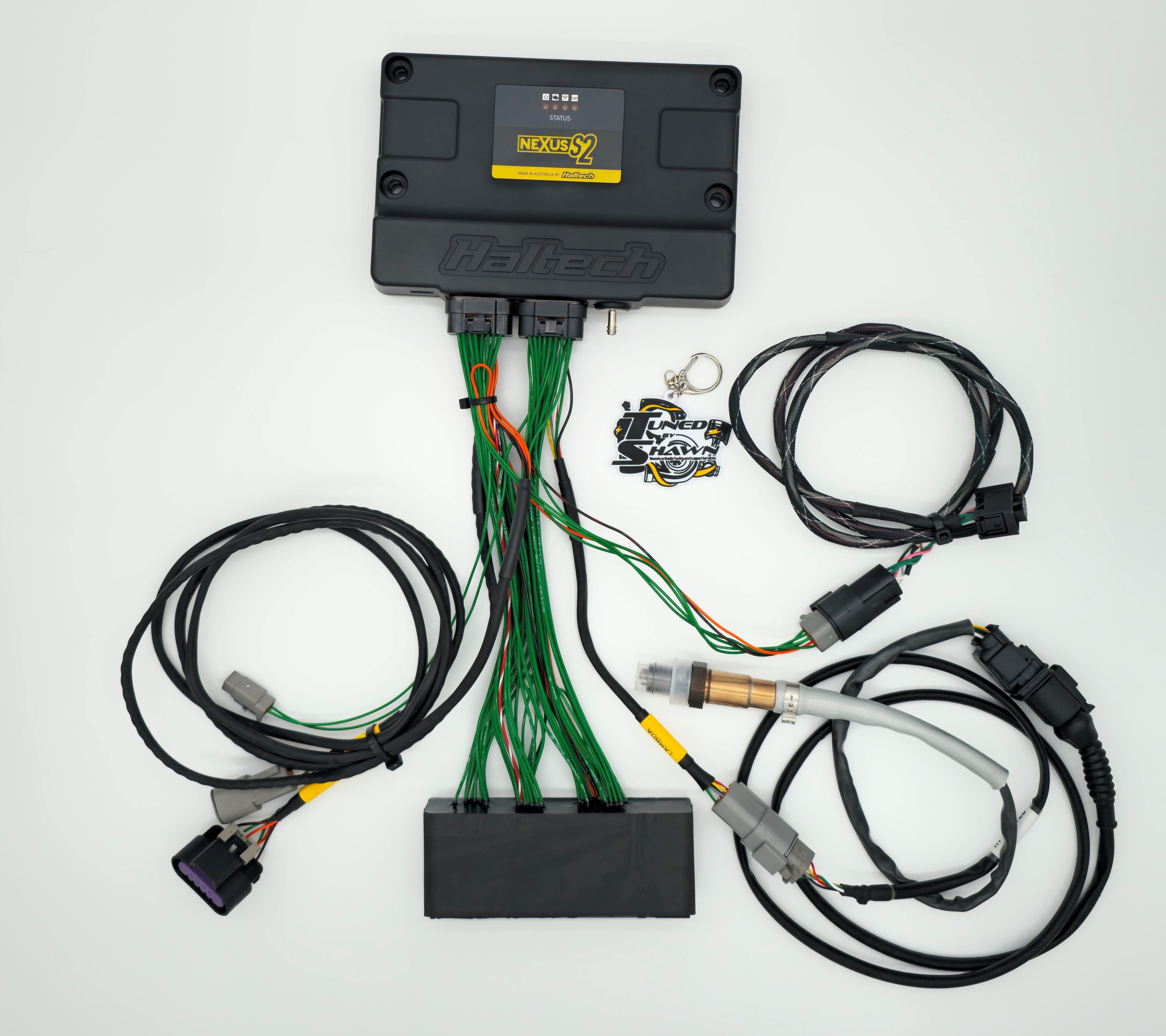

-TunedByShawn PNP Adapter Harness
-Haltech Wideband

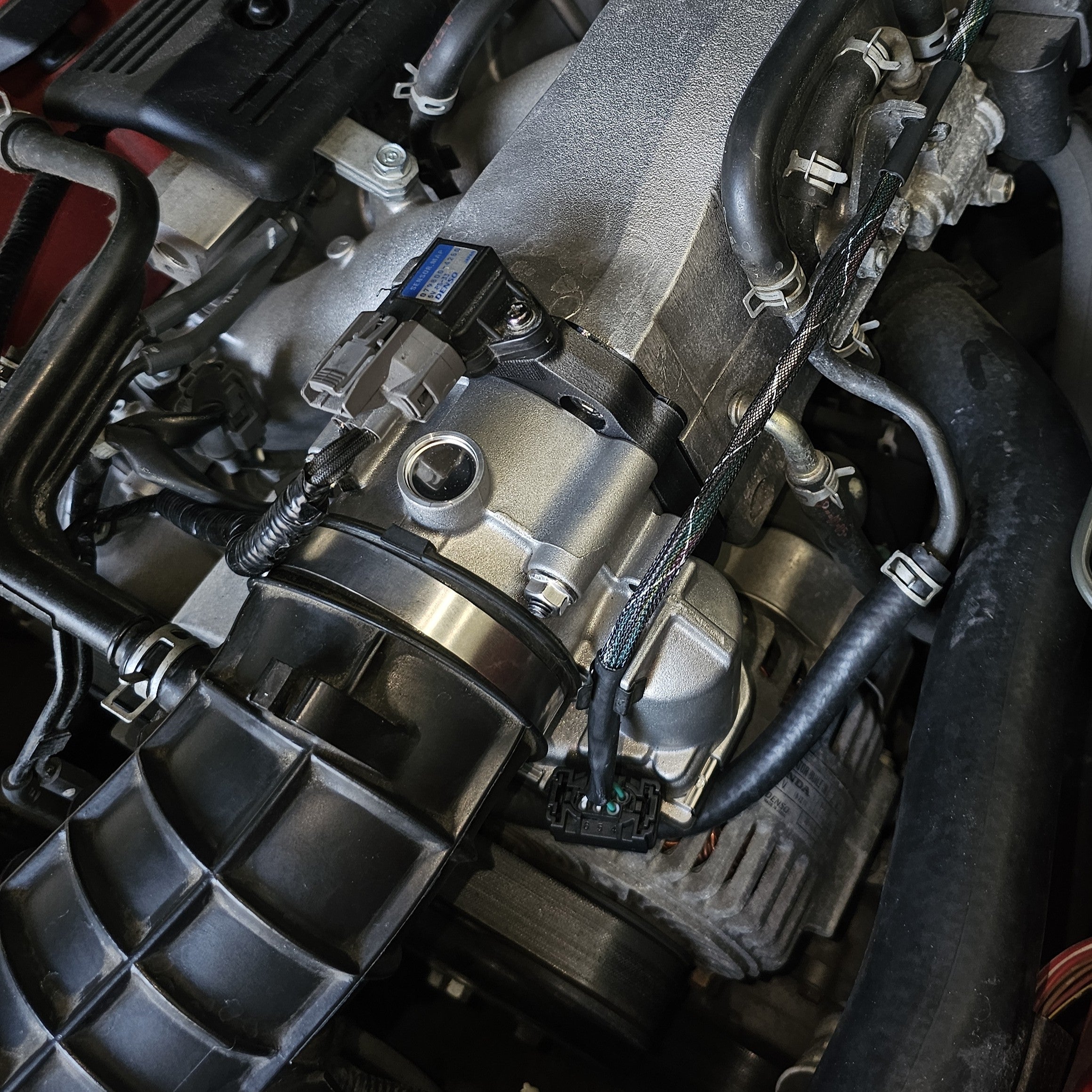

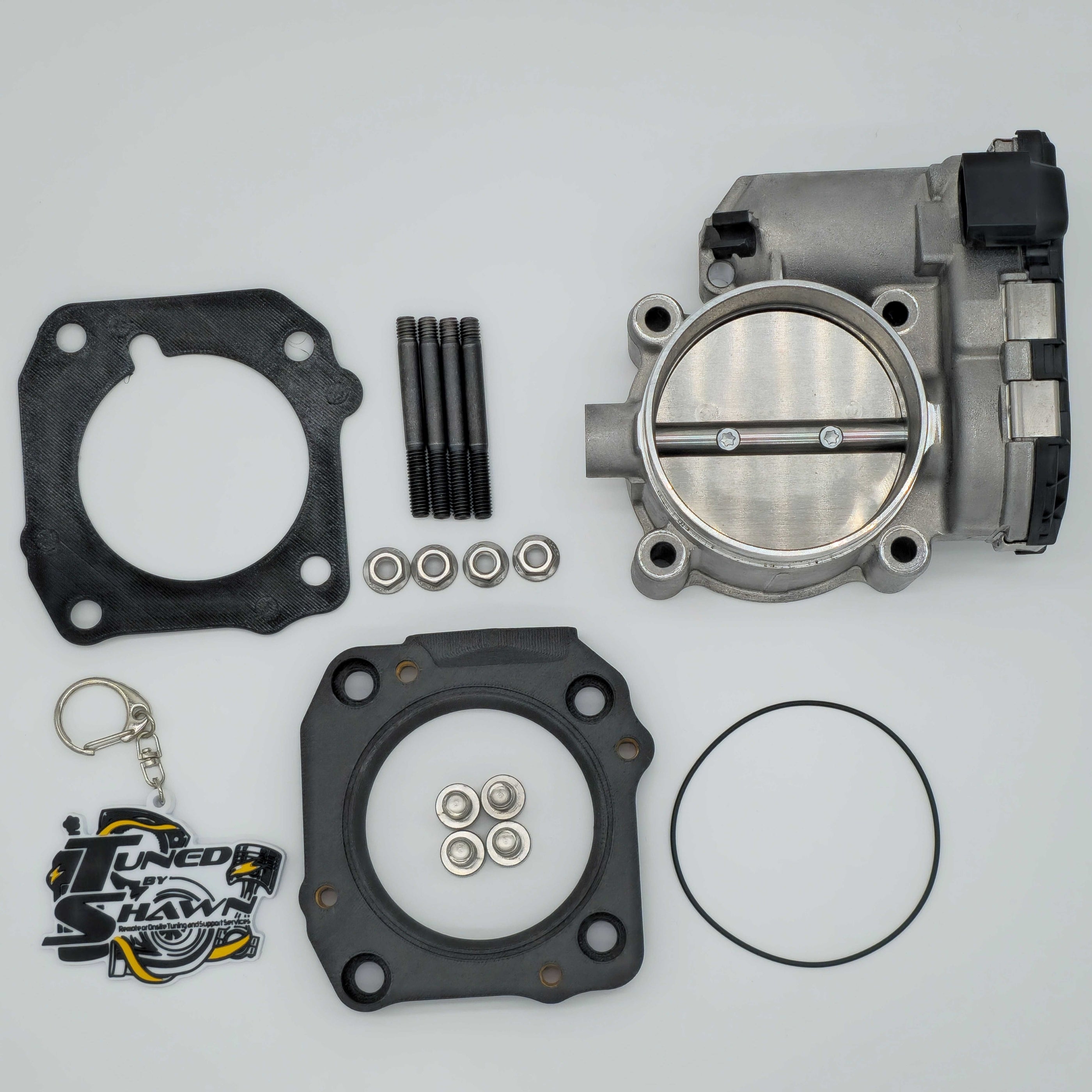

-74mm Bosch Throttle Body with TunedByShawn Adapter

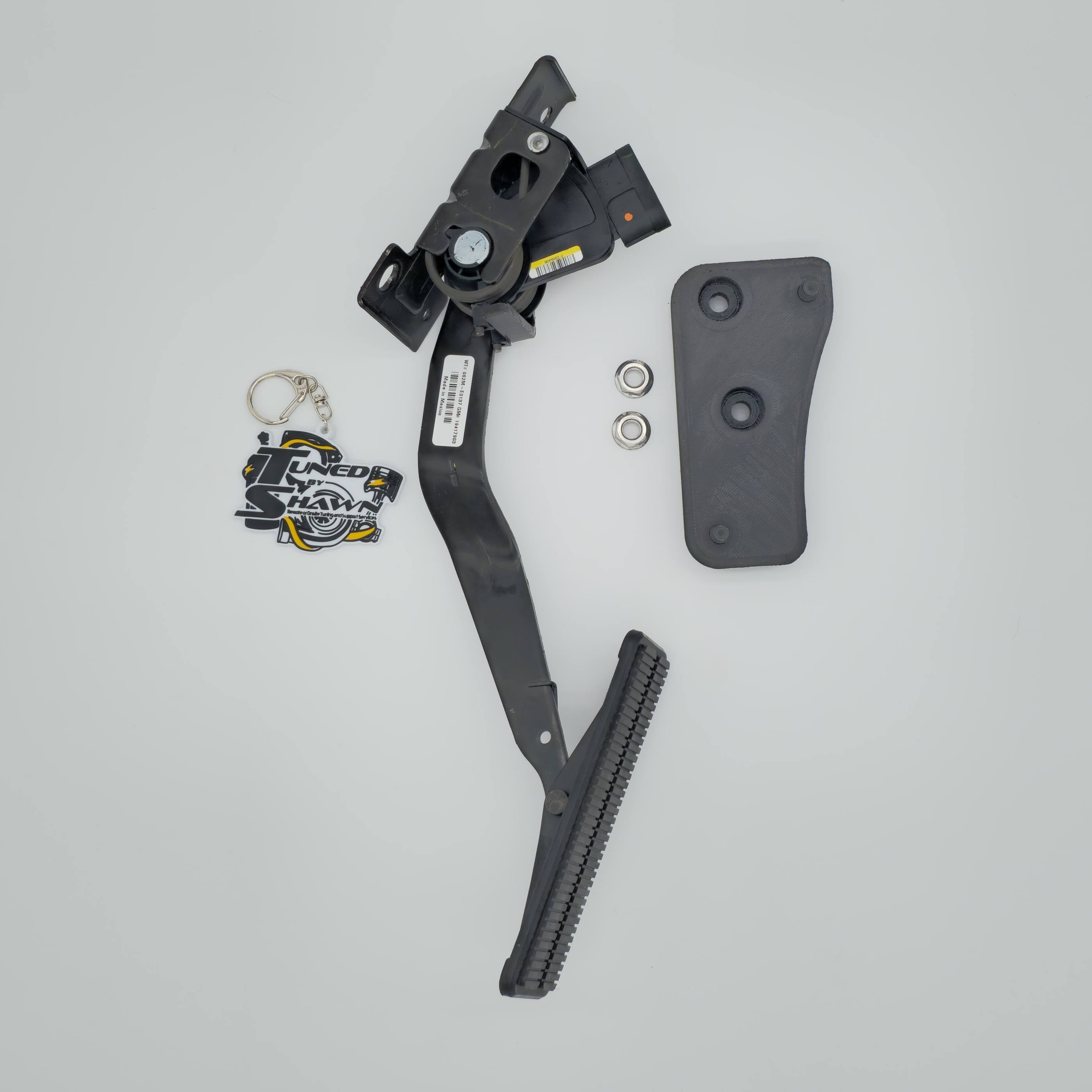

-Throttle Pedal with TunedByShawn Pedal Adapter
ECU OVERVIEW
Haltech's Nexus S2 is the successor to the acclaimed Elite 1500, offering a serious upgrade in performance and functionality. The S2 combines all the classic functionality of the Elite 1500 with new features and the superior processing power of the successful Nexus platform.
- 4 x peak/hold injector drivers (can be used as low side drive outputs)
- 4 x low current ignition outputs (can be used as low side drive outputs)
- 6 x low side drive outputs, PWM capable (DPOs)
- 4 x push-pull / half bridge outputs (8A, PWM capable), eg for electronic throttle
- 1 x ECR output
- 11 x 0-5V analog inputs with redundancy for electronic throttle and switchable 5V pullup
- Trigger and home inputs with differential inputs, adjustable thresholds and glitch filters
- 6 x synchronous pulsed inputs, zero crossing or adjustable thresholds - cam sensor inputs, frequency inputs or 0-5V analog inputs
- 1 x on-board wideband controller, supporting NTK and LSU4.9
- 1 x on-board 4 bar MAP sensor
- 2 x CAN ports with switchable termination
