Tuned By Shawn 3 PORT MAC VALVE (ECU CONTROLLED BOOST CONTROL) W/ FITTINGS


Universal 3 port MAC solenoid to be used with your Adaptronic ECU for a complete boost control system.

These valves are non polarity specific. One wire goes to key on 12v switched power. the other wire gets connected to the ECU to one of the free Aux Outputs.

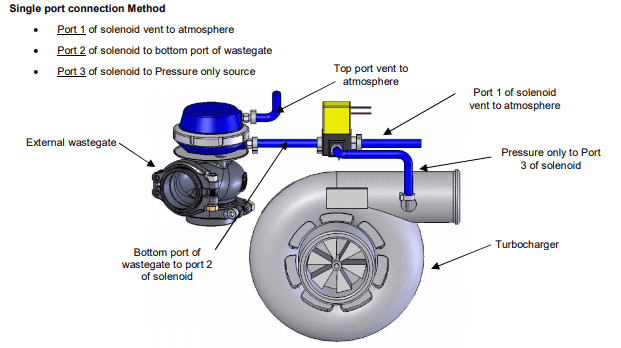

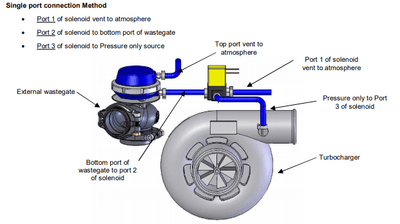

Turbosmart provides excellent instructions for routing the vacuum lines to the WG solenoid

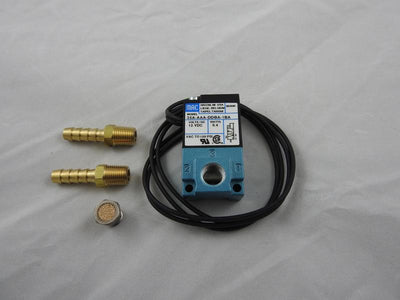

What is included?

  • Mac Valve
  • 2 x Vacuum port fittings
  • 1 vent filter (prevents dirt getting into the valve)

Adaptronic users:

If you are connected to Eugene and go to the outputs tab, then outputs and select the output you have the valve wired too change the function to wastegate duty 1 and check the PWM check box. Set the Hertz to 25hz.
