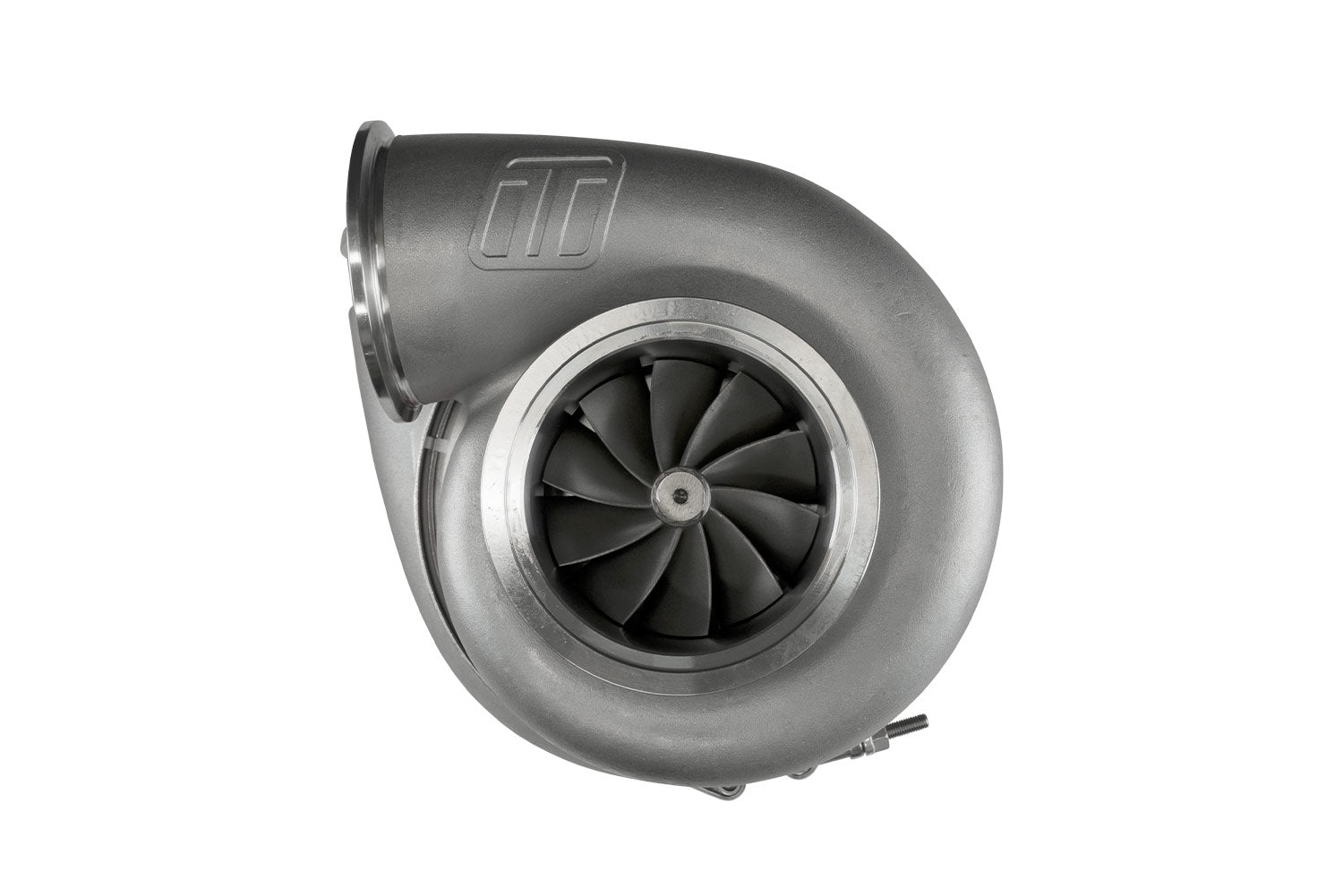

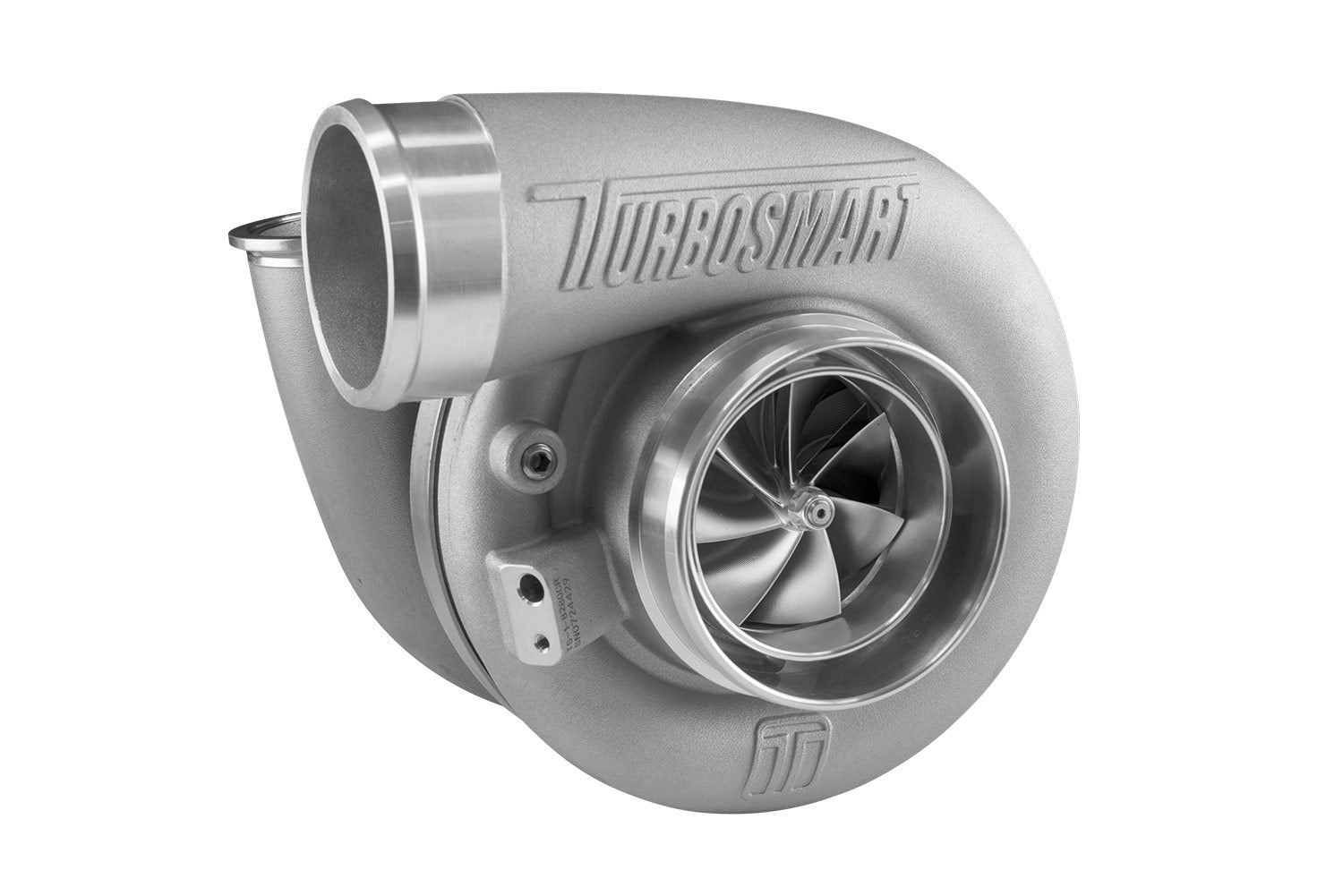

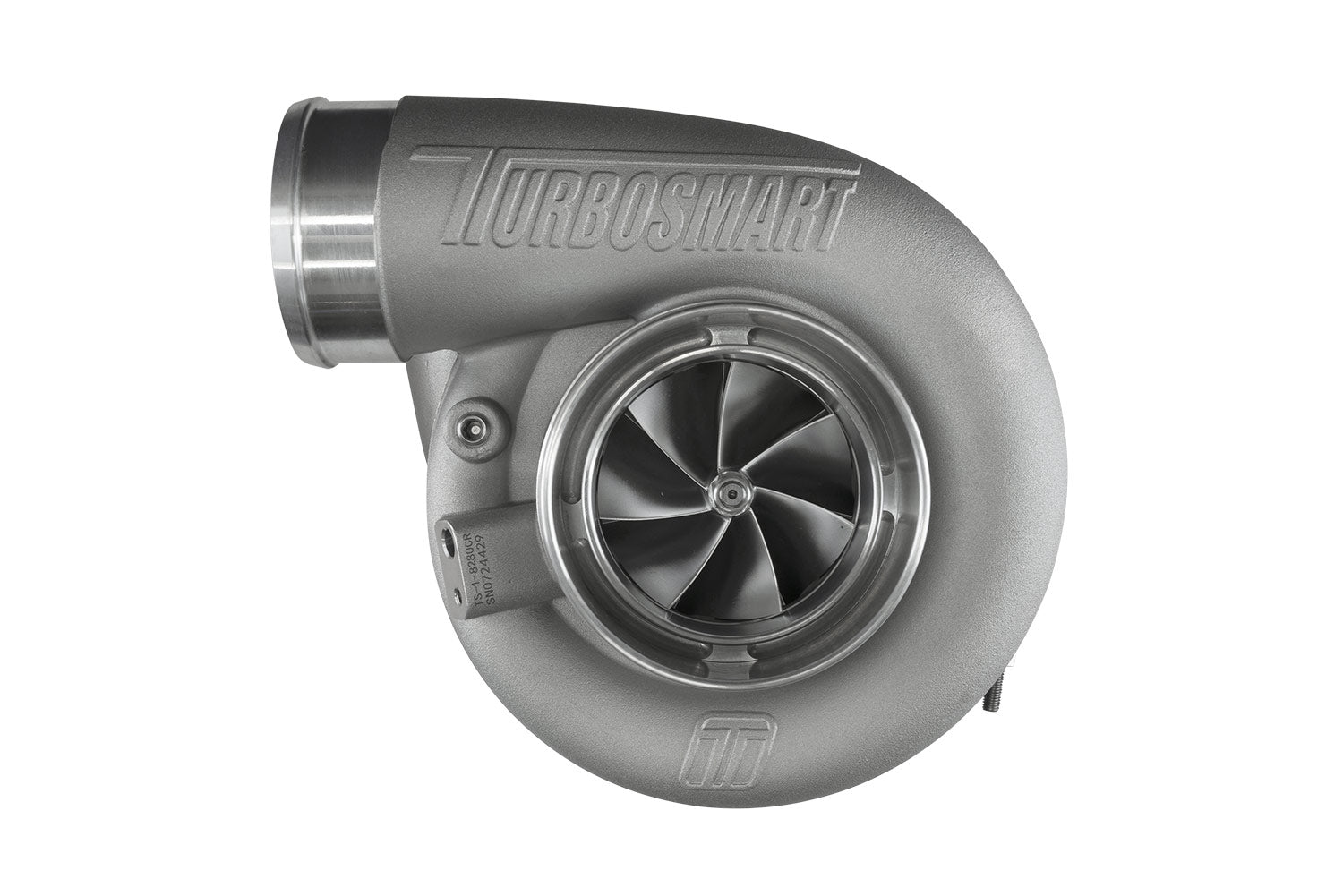

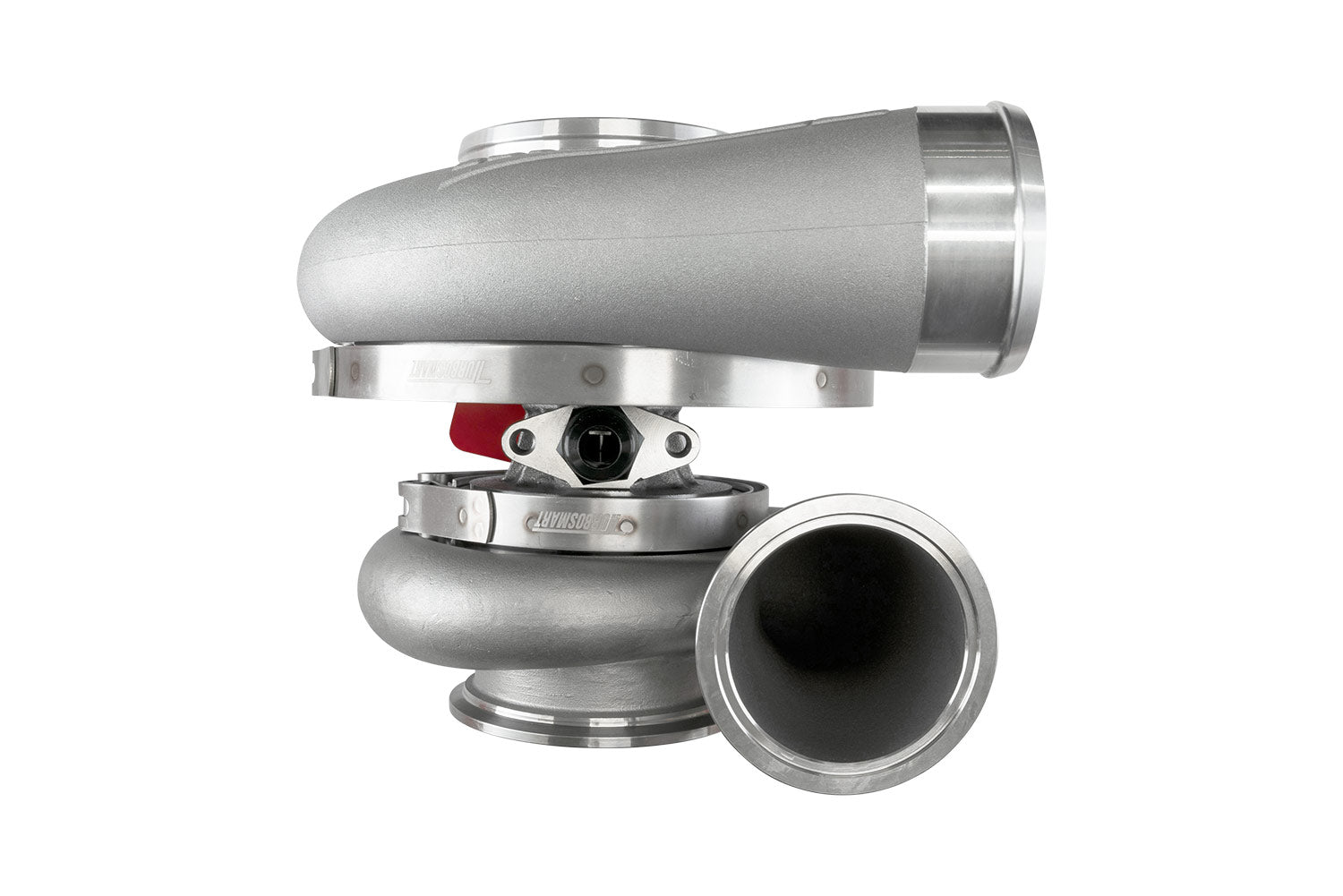

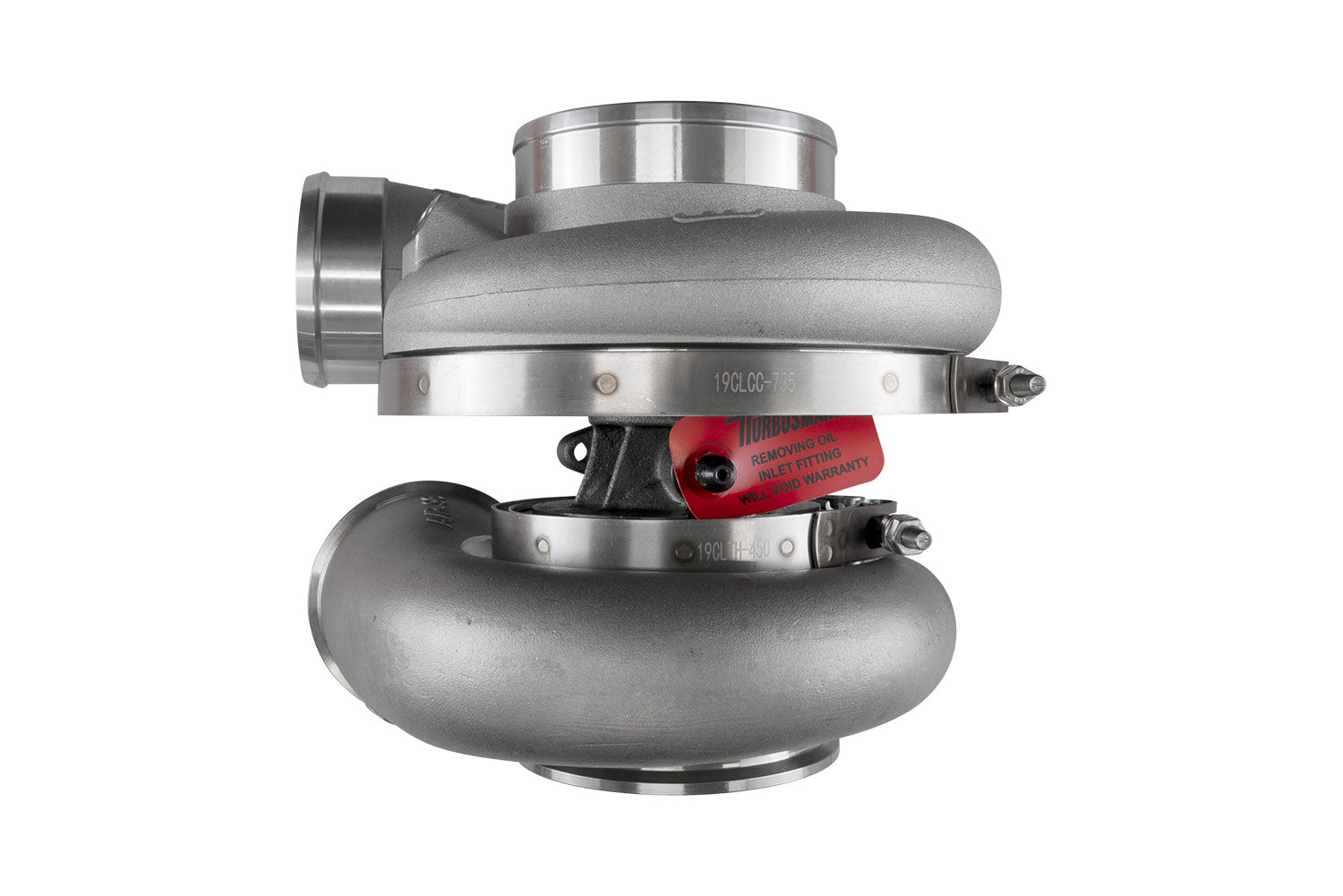

TS-1 Performance Turbocharger 8280 V-Band Reverse Rotation 0.96AR Externally Wastegated
SKU: TS-1-8280C-VR096E
ECUs always ship FREE with Tuned By Shawn!
Manufacturer Limited Warranty
TS-1 Performance Turbocharger 8280 V-Band Reverse Rotation 0.96AR Externally Wastegated
Product details
Description
The Turbosmart TS-1 8280 is an oil-cooled dual ceramic ball-bearing turbocharger with a 82 mm compressor inducer and a 80 mm Inconel turbine wheel. It has a V-band turbine inlet, reverse rotation and a 0.96 A/R investment-cast stainless steel turbine housing. Turbosmart rates it at 1225-1445 hp.
The TS-1 range is built for quick spool and fast transient response: a low-inertia shaft and bearing assembly drives an aggressive 7+7 splitter-blade compressor wheel, so the turbo makes boost at lower shaft speeds, while the Inconel turbine wheel and CFD-designed housings keep back pressure down at high load and high flow.
Externally wastegated: this turbine housing has no internal wastegate, so plan on an external wastegate on the manifold. Turbosmart's GenV gates are a direct match.
Specifications
| Spec | Value |
|---|---|
| Part number | TS-1-8280C-VR096E |
| Series | TS-1 (oil-cooled) |
| Compressor inducer | 82 mm |
| Compressor inlet | 4" / 101.6mm |
| Turbine exducer | 80 mm |
| Turbine inlet | V-band (3.00") |
| Turbine A/R | 0.96 |
| Turbine outlet | V-band (3.50") |
| Rotation | Reverse |
| Wastegate | External (no internal wastegate) |
| Power rating | 1225-1445 hp |
Features
- Proprietary dual ceramic ball-bearing system for fast, consistent spool
- 7+7 splitter-blade compressor wheel machined from 2618 aluminum
- 713C Inconel turbine wheel rated for extreme exhaust gas temperatures
- Lightweight 310S stainless steel investment-cast turbine housing
- Lightweight aluminum compressor cover
- CFD-designed housings for optimized A/R and flow
- Integrated iron backplate on the center housing
- VSR speed balanced

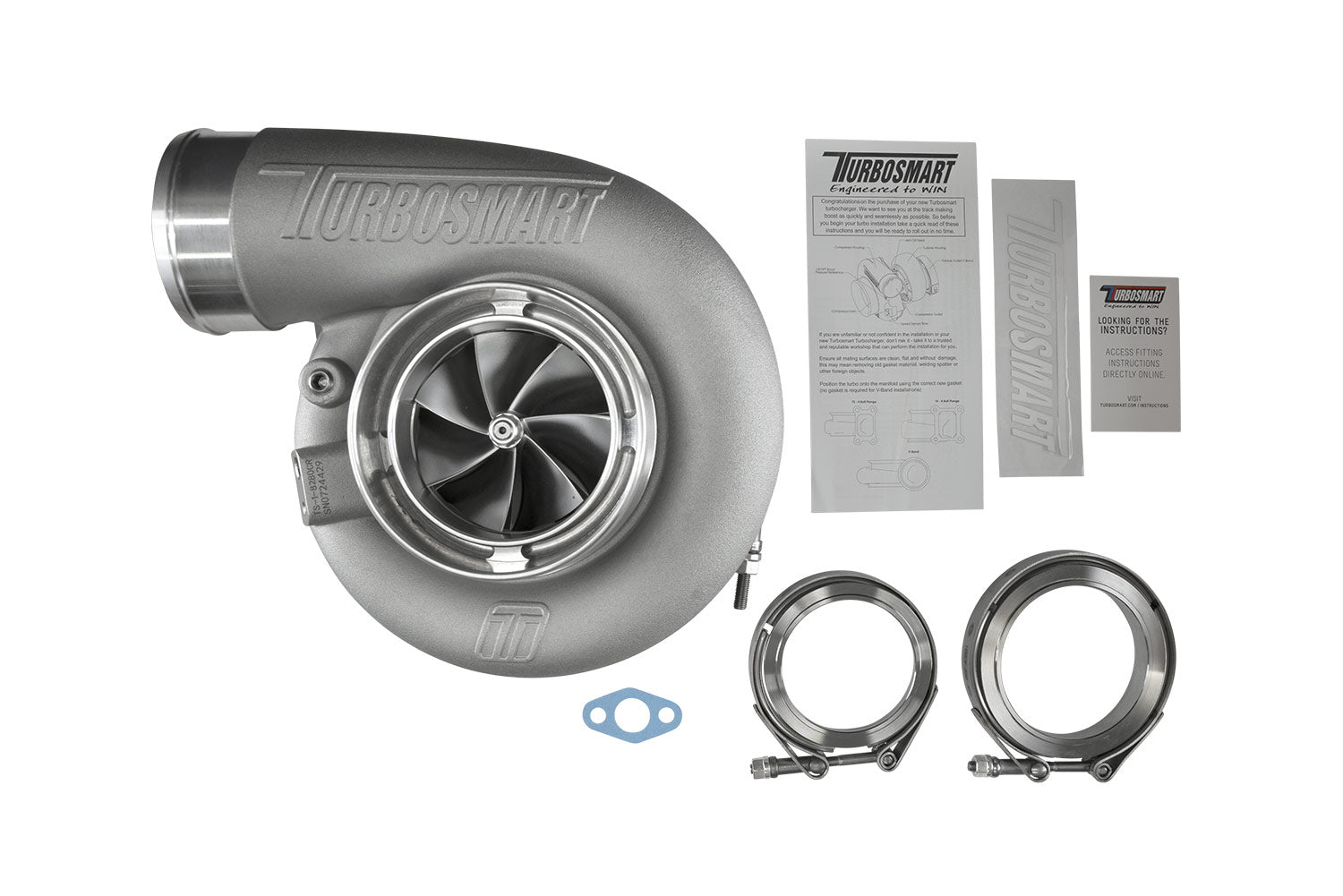

What's in the Box
Every Turbosmart turbo ships with the hardware needed to install it:
- Turbine inlet and outlet weld flanges
- V-band clamps
- Gaskets
- Oil feed and drain fittings
