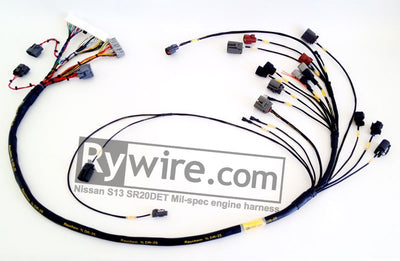

Rywire SR20DET Swap Mil-Spec Engine Harness - Nissan S13 SR20DET (S13-Milspec)

Rywire S13-Milspec is a mil-spec engine harness for the S13 SR20DET, whether it lives in a Nissan or goes into a non-Nissan car as an SR20 swap. The lower transmission harness is built in, so it is one harness instead of two, and the MAF connector is a Deutsch plug, making it easy to move to an aftermarket MAF or a standalone MAP/IAT setup. Each harness comes with a chassis adapter for the car you choose: change chassis later and you only need a new adapter.

Engine Swap Fitment

• Nissan S13 SR20DET engine
• Nissan or non-Nissan chassis (chassis adapter matched to the vehicle year you choose, or a race/flying-lead setup)
• Built with 1991-1999 180SX computer connectors
• Works with the 2.0L turbo 1991-1999 Nissan 180SX computer, AEM EMS 30-6601, and plug-and-play standalone computers such as Haltech and Apex FC
• Ask about other computer configurations

Features

• Mil-spec Teflon-coated wire rated to 200°C
• Raychem DR-25 heat shrink with adhesive-lined junctions to keep moisture out
• Pneumatic-head crimps and yellow ID labels on every connector
• High-interference circuits shielded and grounded
• Lower transmission harness integrated
• Deutsch connector at the MAF for aftermarket MAF or MAP/IAT conversion
• Connects to the factory coil sub-harness (coil packs are not on this harness)

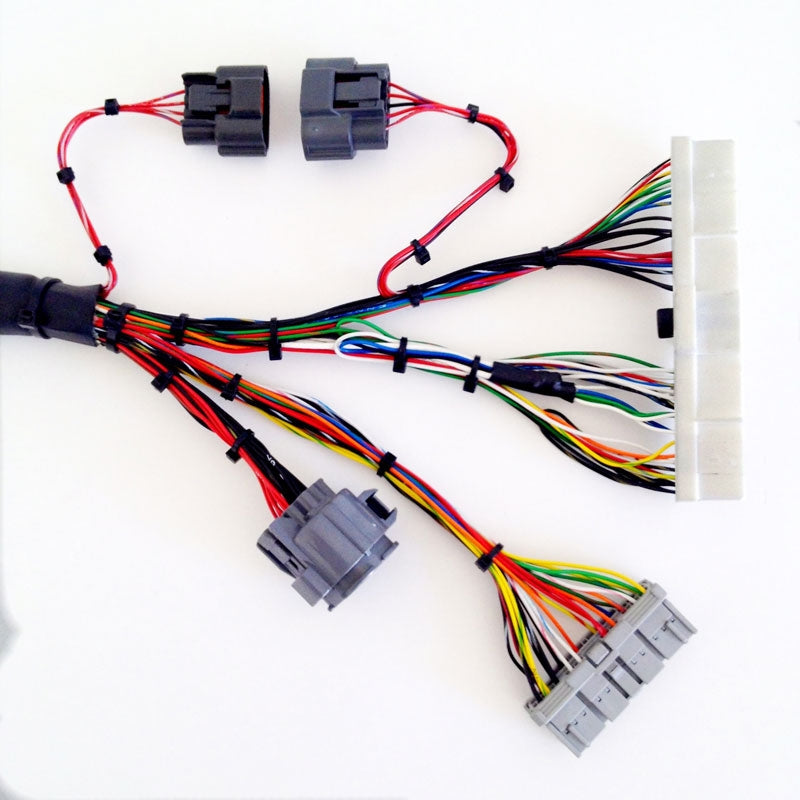

• Removable chassis adapter: reuse the engine harness in another chassis
• 100% pin-to-pin tested and resistance checked

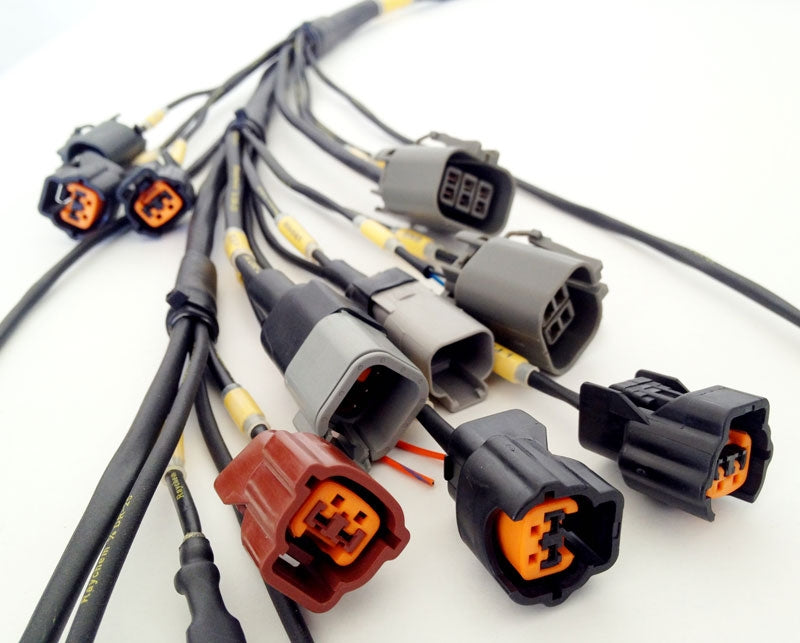

Connector List

• Computer plug
• Chassis plug
• Power cap plug
• Ignitor (both sides)
• Cam angle sensor
• Speed sensor
• Alternator
• MAF or MAP/IAT
• TPS (throttle position)
• Oxygen sensor
• Coolant temp sender (gauge)
• Coolant temp sensor (computer)
• Injectors 1-4
• Boost solenoid
• 2 extra wires
• Reverse lights
• Ground
• Starter
• Oil pressure warning light
• Knock sensor
• Coil 6-pin sub-harness connector

Choosing Options

• Vehicle Year: sets the chassis adapter Rywire builds for your car (1989-1990, 1991-1994, 1995-1996 or 1997-1998), or choose Race / Flying Lead for a car without a matching factory chassis.
• Coil Type: dumb coils, smart coils, LS1 coils or RSX coils. Coil harnesses for other coil types carry an extra charge.
• Injector Plug / MAF: Injector Dynamics gray, Injector Dynamics black, RC/EV1 or OEM injector plugs, and your airflow setup: OEM MAF, Z32 MAF, or IAT/MAP with no MAF (the MAF plug is a Deutsch connector, so it is easy to change later).

What's Included

• SR20DET mil-spec engine harness with integrated transmission harness
• Chassis adapter for the vehicle year you choose

Frequently Asked Questions

Can I use it in a non-Nissan car?

Yes. It is designed for an S13 SR20DET in a Nissan or a non-Nissan car. Choose Race / Flying Lead if your chassis does not match one of the listed years.

Which computer does it plug into?

It is built with 1991-1999 180SX computer connectors, so it plugs into the 180SX computer, the AEM EMS 30-6601 and plug-and-play standalones such as Haltech. Ask us about other computer configurations.

Are the coils on this harness?

No. The harness connects to the factory coil sub-harness through a 6-pin connector; coil harnesses are available for an added fee. Email service@tunedbyshawn.com with your engine, chassis and ECU before ordering if you are unsure which configuration you need. Tuned By Shawn can tune your swap on Haltech.

For off-road and competition use only. Not legal for use on pollution-controlled motor vehicles.
