Rywire RSX/S2000 Coil-On-Plug Harness - Standalone Computer, Cam/Crank Trigger (COP-RSX-S2000-coil-harness)

Rywire COP-RSX-S2000-coil-harness runs RSX/S2000 (K-series) coil-on-plug coils from a standalone engine computer with no CDI ignition box. It also carries the cam and crank pickup wiring for a T1 cam trigger, and Rywire pins it for your standalone computer.

Why This RSX/S2000 Coil-On-Plug Harness

The Rywire COP-RSX-S2000-coil-harness runs RSX/S2000 coil-on-plug coils from a standalone computer with no CDI box and carries the T1 cam trigger wiring.

• Versus adding a CDI or ignition box: this Rywire coil harness lets the standalone computer drive the RSX/S2000 coils directly.
• Versus making up a coil harness: this Rywire coil harness ships with all connectors shown in the photos plus computer pins for OBD1, OBD2a or OBD2b plugs.
• What you still wire: this Rywire coil harness installs per your cam/crank trigger diagram and standalone computer schematic, since installation varies by setup.

Best for: builds running RSX/S2000 coils and a T1 cam trigger on a standalone computer with OBD1, OBD2a or OBD2b plugs.

Fitment

• K-series and S2000 coil-on-plug coils
• T1 cam trigger for cam and crank signals
• Standalone computers, with Rywire-supplied computer pins

Features

• No CDI ignition box needed
• Cam/crank trigger wiring built in
• Supplied with all connectors shown in the product photos
• Computer pins for OBD1, OBD2a or OBD2b plugs

Choosing Options

• Cam/Crank Trigger: built for the T1 cam trigger.
• Computer Plug: OBD1, OBD2a or OBD2b computer pins.

Recommended Add-Ons

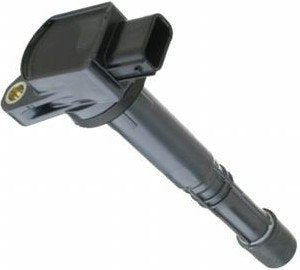

• Rywire Genuine Honda RSX/S2000 K-Series Ignition Coils, Set of 4.

Add any of these from the Recommended Add-Ons list above. Each one is its own listing.

What's Included

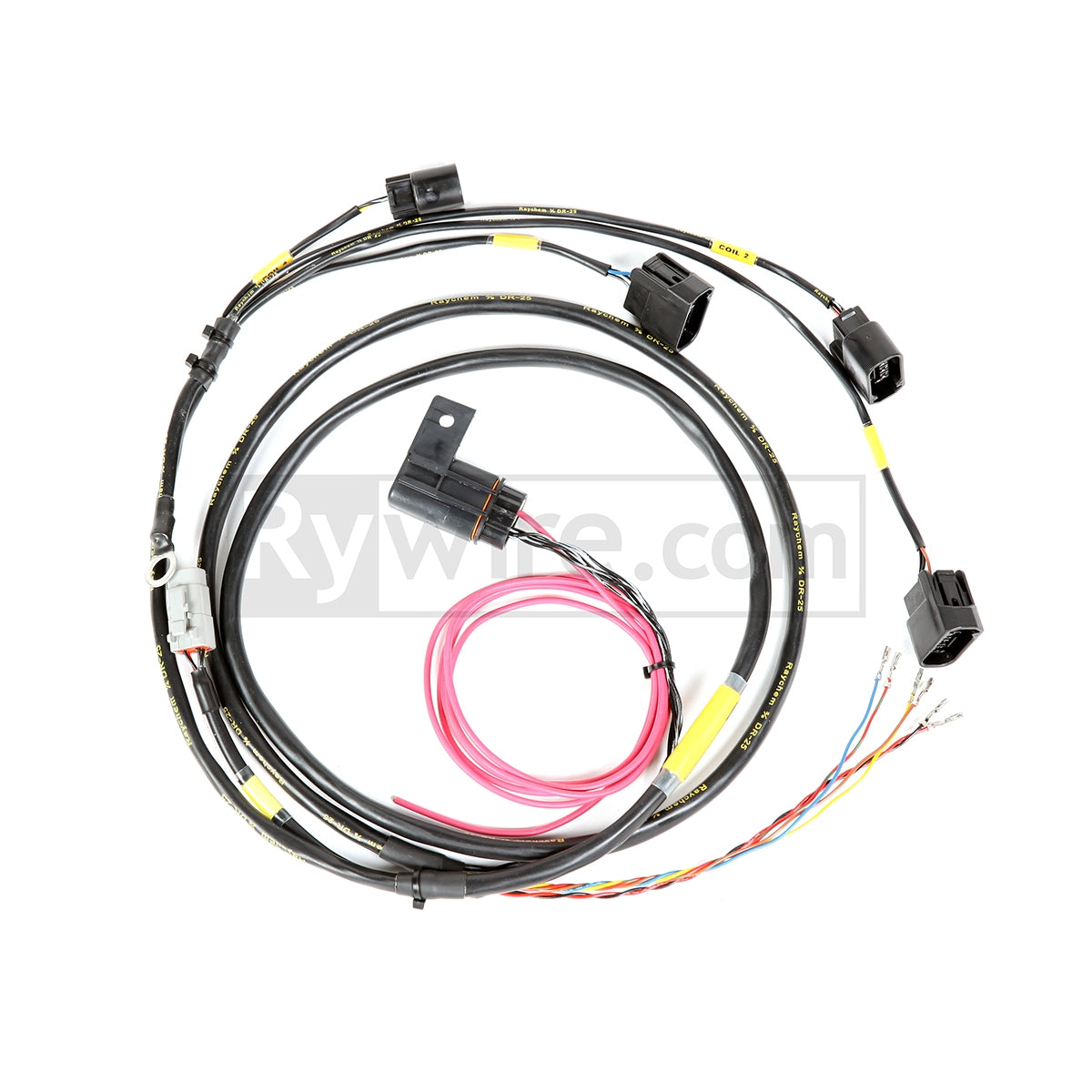

• RSX/S2000 coil harness with cam/crank trigger wiring
• All connectors shown in the product photos
• Computer pins for the plug type you select

Frequently Asked Questions

Do I need a CDI or ignition box?

No. The harness drives the RSX/S2000 smart coils directly from your standalone computer.

How is it installed?

Installation varies by setup. Use your cam/crank trigger wiring diagram and your standalone computer schematic to wire it in. Email service@tunedbyshawn.com with your engine, chassis and ECU before ordering if you are unsure which configuration you need.

Do I need a CDI box to run RSX/S2000 coils on a standalone computer?

No. The Rywire COP-RSX-S2000-coil-harness drives the RSX/S2000 coils directly from the standalone computer and includes the T1 cam trigger wiring.

For off-road and competition use only. Not legal for use on pollution-controlled motor vehicles.
