Rywire Proportion Valve Relocation Kit - 88-00 Civic, 88-91 CRX, 90-01 Integra (Proportion-Valve-Relocation-ki)

Rywire Proportion-Valve-Relocation-ki moves the proportion valve behind the firewall for a clean, tucked engine bay on Civic, CRX and Integra builds. Choose hard line or soft line in the bay; behind the firewall the kit runs soft line. All you do is drill holes for the bulkheads and flare the two rear lines.

Vehicle Fitment

• 1988-1991 Honda Civic and CRX (LHD), plus 1988-1991 EF8/EF9 right-hand drive
• 1990-1991 Acura Integra
• 1992-1993 Acura Integra
• 1992-1995 Honda Civic
• 1994-2001 Acura Integra
• 1996-1998 Honda Civic
• 1999-2000 Honda Civic
• Designed for EG/DC style "Y" proportion valves
• Non-ABS master cylinders only: OEM ABS master cylinders are not supported

Features

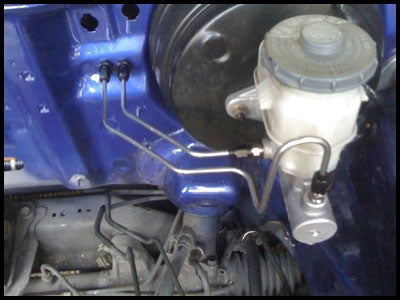

• Relocates the proportion valve behind the firewall
• Hard line or soft line options in the engine bay; soft line behind the firewall
• All fittings and lines finished in black
• Soft line kits work for left-hand or right-hand drive cars

Choosing Options

• Vehicle: pick your chassis and years so the lines are cut for your car.
• Master Cylinder: stock non-ABS 1988-1997 masters use soft line only; stock non-ABS 1998-up masters can use hard or soft line; the Wilwood single-port master option uses hard line. Rywire recommends a 1988-1997 (soft line) or 1998-up non-ABS master cylinder.

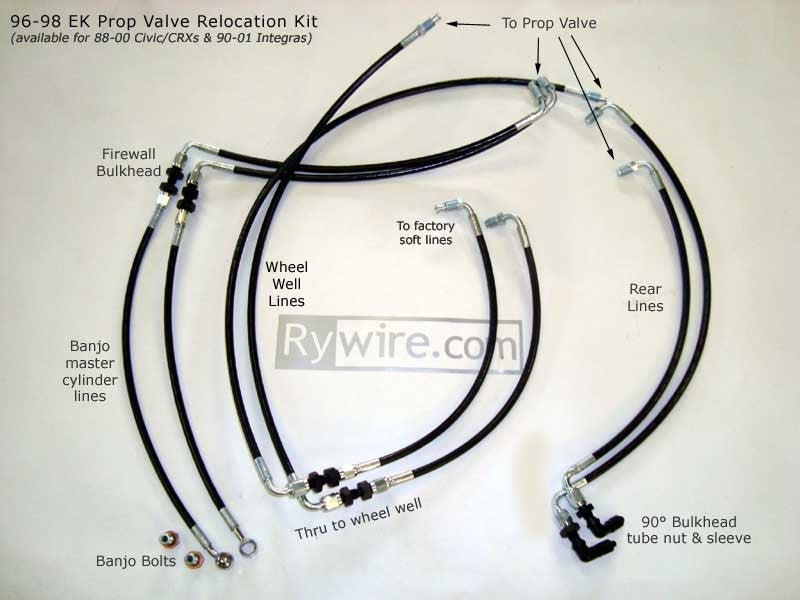

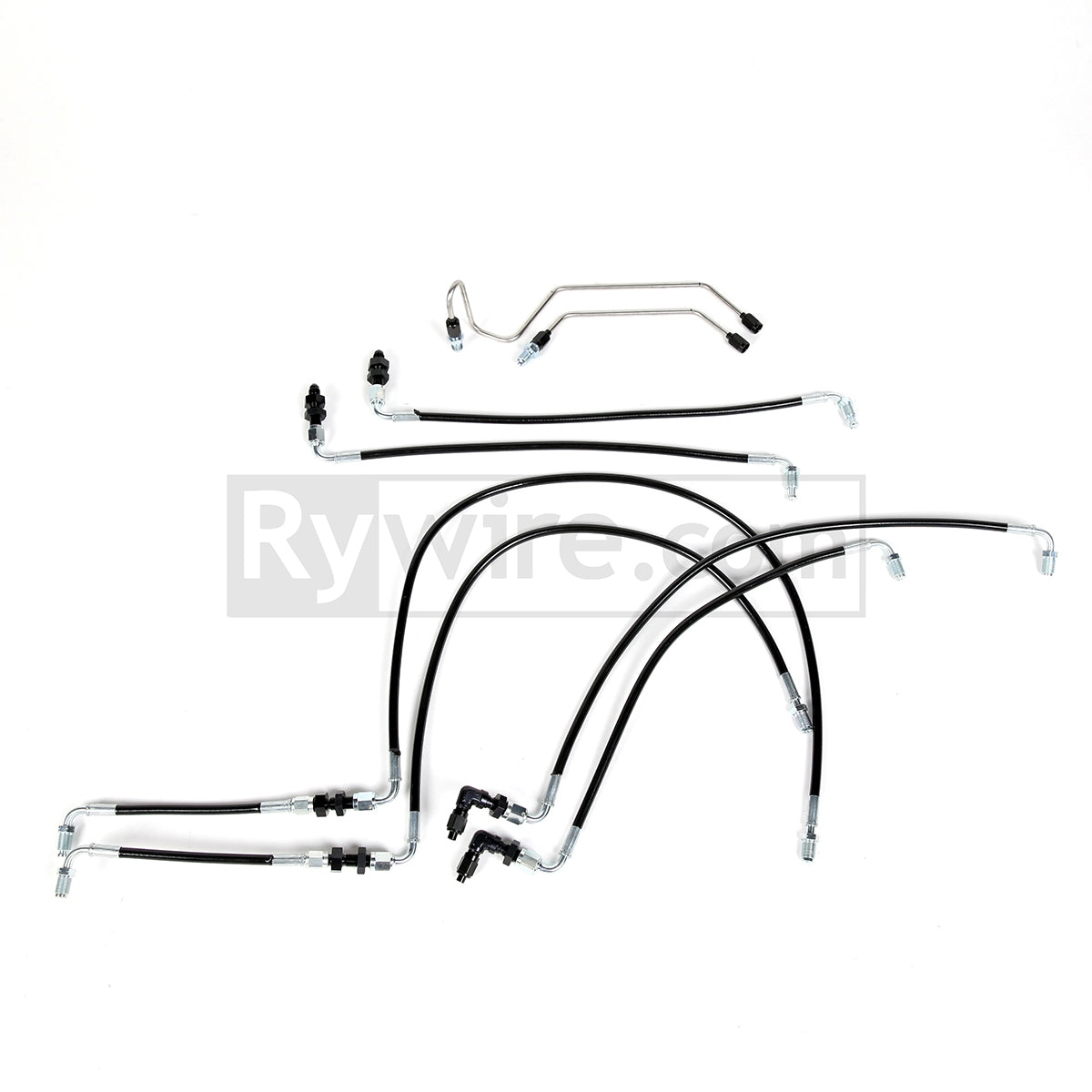

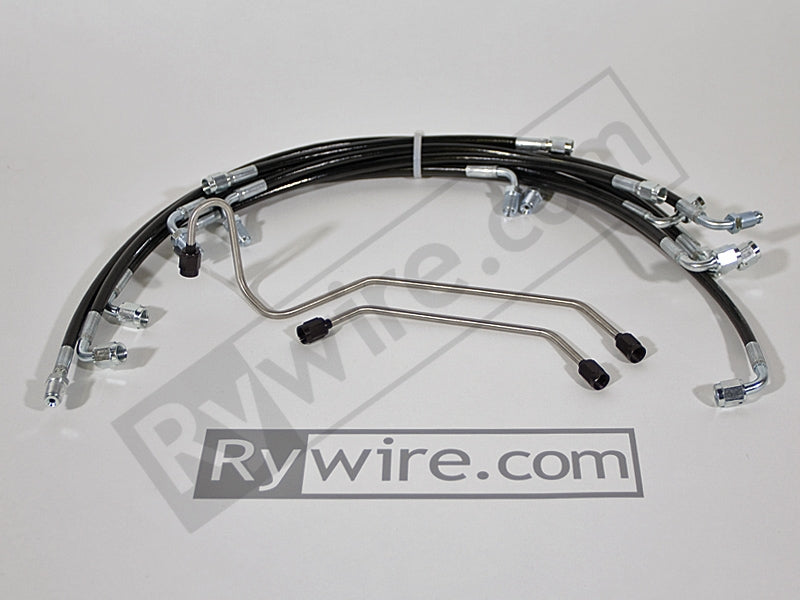

What's Included

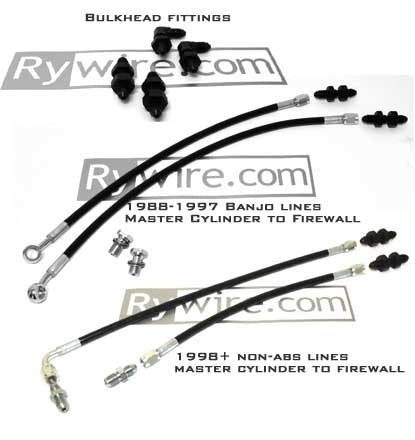

• Bulkhead fittings
• Tube nuts and sleeves
• Union fittings
• Brake lines (black)

Frequently Asked Questions

Will it work with my ABS master cylinder?

No. The kit does not support OEM ABS master cylinders. Use a non-ABS 1988-1997 or 1998-up master cylinder, or the Wilwood single-port option.

What work is required to install it?

You drill holes for the bulkheads and flare the two rear brake lines. Everything else needed comes in the kit.

Is there a right-hand drive version?

Yes. Choose the 1988-1991 EF8/EF9 RHD option. All soft line kits work for LHD or RHD. Email service@tunedbyshawn.com with your chassis and master cylinder before ordering if you are unsure which configuration you need.
