Rywire Mil-Spec Tucked S2000 F20C/F22C Engine Harness (S2K-Milspec)

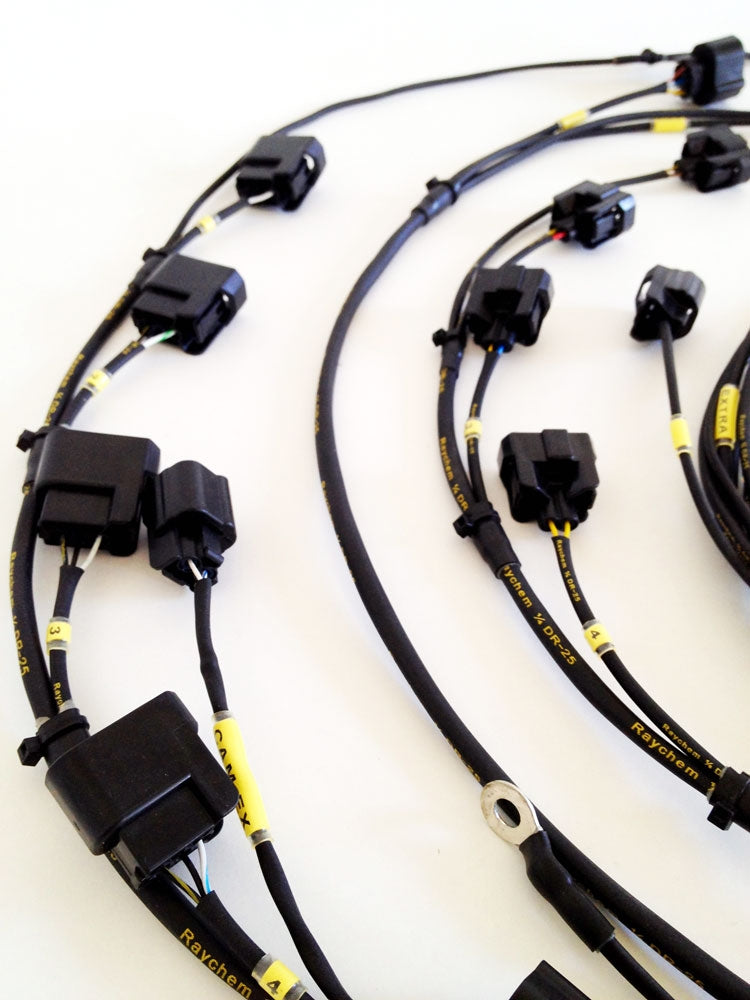

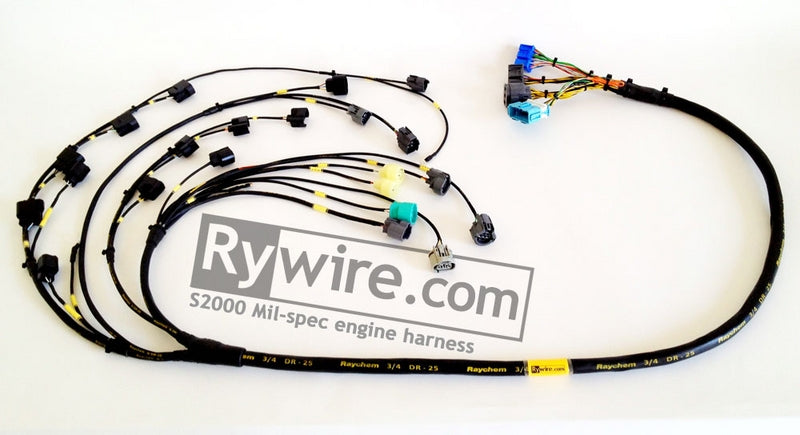

Rywire S2K-Milspec is a mil-spec tucked engine harness for the Honda S2000 F20C and F22C. It uses Teflon-coated wire rated to 200°C in the standard factory wire colors, looms everything in Raychem DR-25 heat shrink with adhesive-lined junctions, and plugs into the stock computer plugs so any aftermarket computer that uses OEM plugs is plug and play. Built to order by Rywire in the USA.

Why This Mil-Spec S2000 F20C/F22C Engine Harness

The Rywire S2K-Milspec is a new mil-spec tucked S2000 F20C/F22C engine harness in factory wire colors that plugs into the stock computer plugs, replacing an aging original harness.

• Versus repairing the factory harness: this Rywire S2000 harness is all-new wire, pins and plugs, pneumatically crimped, ID-labeled at every connector, and pin-to-pin and resistance tested before shipping.
• Versus a used junkyard harness: this Rywire S2000 harness needs no core and is built with the injector plug chosen at checkout.
• Versus a universal flying-lead harness: this Rywire S2000 harness ends in OEM computer plugs B and C, so any aftermarket computer using the OEM plugs is plug and play.
• Factory colors, mil-spec materials: this Rywire S2000 harness uses 200 C Teflon-coated wire in factory colors, Raychem DR-25 heat shrink, adhesive-lined junctions and shielded high-interference circuits.
• Tucked bay: this Rywire S2000 harness uses tucked routing, and Rywire can build in a firewall quick disconnect on request.

Best for: S2000 F20C and F22C engines on the stock computer or an OEM-plug aftermarket computer, where a new tucked harness beats repairing the original.

Engine Swap Fitment

• Honda S2000 F20C and F22C engines
• Plug and play with aftermarket computers that use the OEM S2000 computer plugs (B and C)

Features

• Mil-spec Teflon-coated wire rated to 200°C, in factory wire colors
• Raychem DR-25 heat shrink with adhesive-lined junctions
• All-new connectors with pneumatic-head crimps
• Yellow ID label on every connector
• High-interference circuits shielded and grounded
• 100% pin-to-pin tested and resistance checked

Connector List

• Oil pressure sending unit
• Knock sensor
• Intake air temperature (intake manifold style)
• Primary oxygen sensor (4-wire)
• Alternator
• 2 extra wires
• Injectors 1-4
• MAP sensor
• TPS (throttle position)
• Coils 1-4
• Electronic speed sensor
• Ground
• Fan switch
• Intake cam
• Exhaust cam
• Reverse lights
• Engine coolant temperature
• Starter signal
• VTEC solenoid
• Computer plugs B and C
• Power distribution cap

Choosing Options

• Injector Plug: pick the plug that matches your injectors: RDX; Nippon Denso / Injector Dynamics 2000cc; NH1 / Honda OBD2; Delphi; Bosch EV6; Bosch EV1 / Honda OBD1; or Bosch EV14 (all other Injector Dynamics types).
• Rywire can also build in a mil-spec firewall quick-disconnect plug; ask us for a quote if you want one.

Recommended Add-Ons

• Rywire Mil-Spec Firewall Quick Disconnect Plug - Harness Build Option.
• Rywire RyTi Titanium VTEC Solenoid Bolt - VTEC Oil Pressure Switch Delete.
• Rywire One-Piece Charge Harness - Honda B/D/F/H/K-Series Swap Harnesses.
• Rywire Engine Ground Kit - 4-Gauge Battery Cable & 8-Gauge Grounds for Swap Harnesses.
• Rywire Mil-Spec Connector Plate, 3 x 5 in - A/C Firewall Hole Harness Pass-Through.
• Rywire Mil-Spec Connector Plate, 3 x 3 in - A/C Firewall Hole Harness Pass-Through.

Add any of these from the Recommended Add-Ons list above. Each one is its own listing.

What's Included

• S2000 F20C/F22C mil-spec tucked engine harness with your chosen injector plugs

Frequently Asked Questions

Which computer does it work with?

Any aftermarket engine computer that uses the OEM S2000 computer plugs. The harness terminates in computer plugs B and C.

Do I need the charge harness?

Rywire suggests it for everyone. It adds the starter and alternator leads to the fuse box; skip it only if you are running your own alternator power lead.

Which injector plug should I choose?

Match the plug to your injectors. Use Bosch EV14 for Injector Dynamics injectors other than the ID2000, and Nippon Denso for the ID2000. Email service@tunedbyshawn.com with your engine, chassis and ECU before ordering if you are unsure which configuration you need. Tuned By Shawn can tune your swap on Haltech.

Should I repair my S2000 engine harness or replace it with a Rywire mil-spec harness?

A repair keeps the original wire and plugs. The Rywire S2K-Milspec replaces them with all-new, tested mil-spec wiring in factory colors that plugs into the OEM computer plugs B and C.

For off-road and competition use only. Not legal for use on pollution-controlled motor vehicles.
