Rywire K24 Master Engine Connector Kit - K24 Swap Harness Build (K24-Connector-Kit)

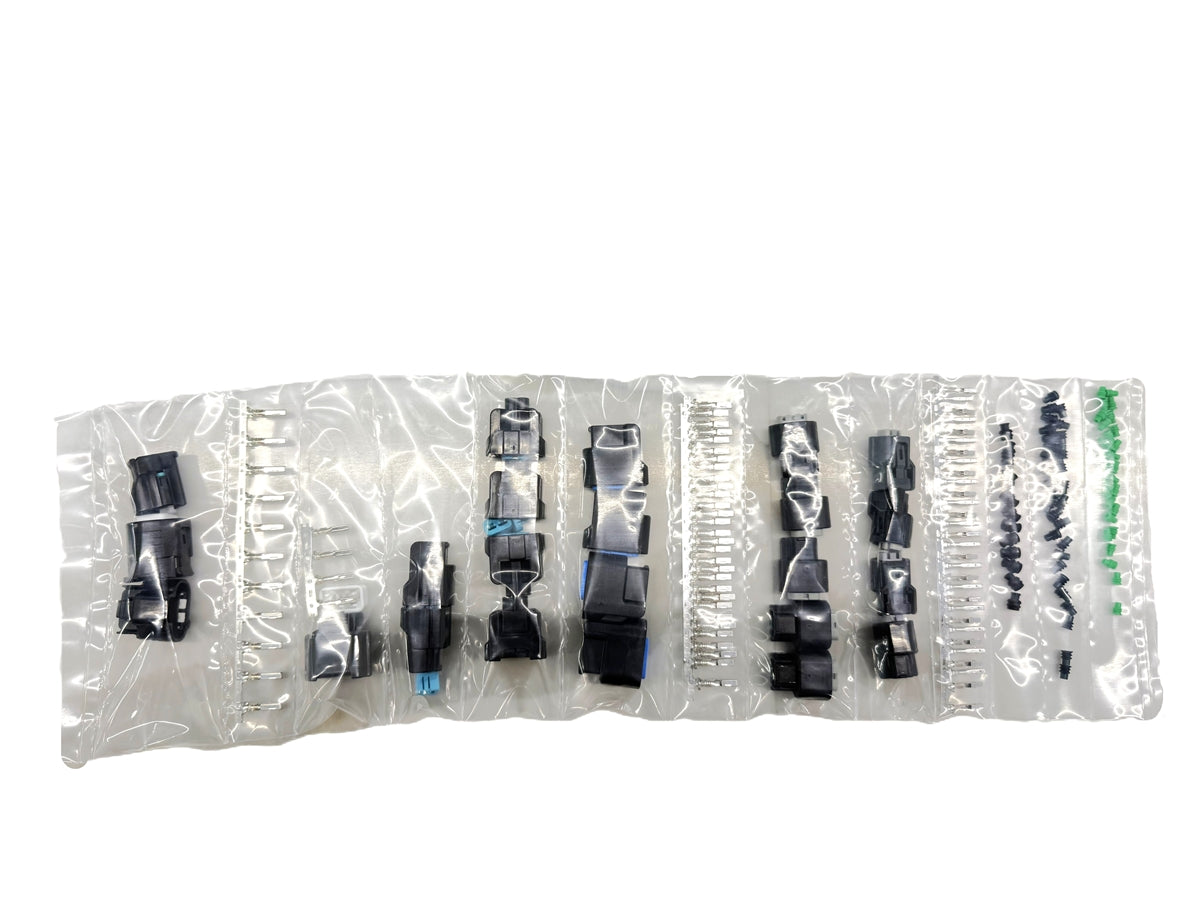

Rywire K24-Connector-Kit is a master connector kit for building a K24 swap engine harness. It carries the K20-style engine plugs plus the K24 small knock sensor and K24 crank sensor connectors. This connector kit is meant for building your own engine harness from scratch or re-terminating a tucked harness. Every connector comes with its housing, terminals, seals and terminal locks.

What's Included

• 4 coil connectors (K20 style)
• 4 injector connectors (K20 style)
• 1 VTEC solenoid connector
• 1 VTC solenoid connector
• 1 alternator connector
• 1 reverse lockout solenoid connector
• 1 reverse light switch connector
• 1 idle air control connector
• 1 mainshaft speed sensor (VSS) connector
• 1 K24 knock sensor connector (small)
• 1 intake air temperature connector
• 1 coolant temperature connector
• 1 intake cam sensor connector
• 1 exhaust cam sensor connector
• 1 K24 crank sensor connector
• 1 throttle position connector
• 1 manifold pressure connector

Not Included (Order Separately If Needed)

• Flex fuel (ethanol content) sensor connector

Fitment

• Honda K24 engine plugs, with K24 knock and crank sensor connectors
• Building or repairing a K24 swap engine harness
• For K20 knock and crank sensor plugs, see the K20 Master Engine Connector Kit (k20-Connector-Kit)

Wire is not included. Crimp tooling is required.
