Rywire Engine Ground Kit - 4-Gauge Battery Cable & 8-Gauge Grounds for Swap Harnesses (ground-kit)

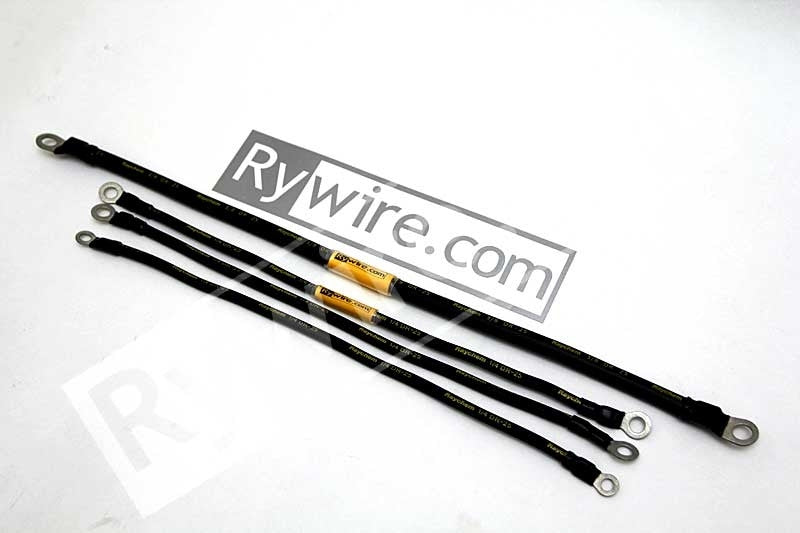

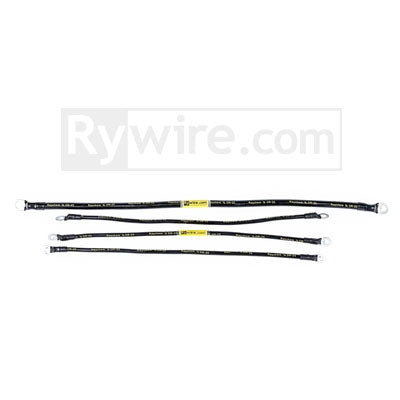

Rywire ground-kit is a set of heavy-gauge ground cables for a tucked or swapped engine bay. A 4-gauge battery cable and three 8-gauge grounds cover the battery, front and rear transmission and cylinder head, all finished in DR-25 high-temperature heat shrink to match Rywire mil-spec harnesses. Rywire offers it as an add-on to their engine harnesses.

Why This Ground Kit for Your B/D-Series Swap

The Rywire ground-kit supplies the battery, transmission and head grounds a B-series or D-series swap needs, in heavy gauge and finished to match a Rywire mil-spec bay.

• Versus making grounds from bulk cable: this Rywire ground kit comes cut and terminated: one 4-gauge 20-inch battery cable with ring terminals and three 8-gauge 14-inch grounds.
• Versus reusing old ground straps: this Rywire ground kit covers the points Rywire grounds on a swap: front transmission, rear transmission and head/valve cover.
• Matches the harness: this Rywire ground kit is finished in DR-25 high-temperature heat shrink like a Rywire mil-spec harness.

Best for: B-series and D-series swaps getting a Rywire engine harness.

Fitment

• Honda B-series and D-series engine bays (Rywire offers it with their engine harnesses)
• Front and rear transmission grounds and head/valve cover ground

Features

• 4-gauge, 20-inch battery cable with ring terminals
• Three 8-gauge, 14-inch ground wires
• DR-25 high-temperature heat shrink on every ground

What's Included

• (1) 4-gauge 20-inch battery cable, ring terminal style
• (3) 8-gauge 14-inch ground wires

Frequently Asked Questions

Where do the three short grounds go?

Rywire uses them for the front transmission ground, rear transmission ground and the head/valve cover ground.

Do I need this with a Rywire engine harness?

It is offered as an optional add-on to Rywire engine swap harnesses. Email service@tunedbyshawn.com with your engine, chassis and ECU before ordering if you are unsure which configuration you need.

Where do the Rywire ground kit cables go on a swap?

The 4-gauge cable is the battery cable. Rywire uses the three 8-gauge grounds for the front transmission, rear transmission and head/valve cover.
