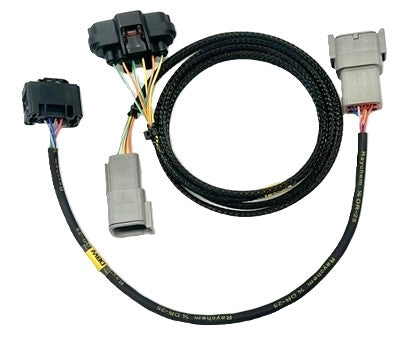

Rywire Drive-By-Wire Sub-Harness Kit - B/K-Series Standalone Swap Harnesses (DBW-Sub)

Rywire DBW-Sub adds drive-by-wire throttle control to a Rywire B-series or K-series standalone race harness. It plugs into the spare connectors Rywire builds into those harnesses, then runs to a Bosch (Porsche GT3) 68 mm or 82 mm electronic throttle body in the bay and the Rywire DBW pedal in the cabin.

Why This Drive-By-Wire Sub-Harness for Your B/K-Series Build

The Rywire DBW-Sub drive-by-wire sub-harness plugs into the spare connectors on Rywire standalone B-series and K-series race harnesses to run an electronic throttle body and pedal.

• Versus splicing into your harness: this Rywire DBW sub-harness plugs into the Engine Spare 8-position and Cabin Spare 6-position Deutsch connectors, with no cutting.
• Versus making your own DBW wiring: this Rywire DBW sub-harness arrives terminated for the Bosch (Porsche GT3) 68 mm or 82 mm throttle body and the Rywire DBW pedal.
• Order it with the harness: this Rywire DBW sub-harness may need computer-side harness changes, which Rywire makes when both are ordered together.

Best for: Rywire standalone B/K race engine harnesses. For other standalone harnesses, pick the Rywire Drive By Wire Universal Harness Kit (DBW-SUB-Universal).

Engine Swap Fitment

• Rywire Haltech, Link, Emtron, Syvecs, MoTeC and FuelTech B-series and K-series race engine harnesses
• Bosch (Porsche GT3) 68 mm or 82 mm drive-by-wire throttle body
• Rywire Drive By Wire Pedal Kit (DBW-PEDAL-KIT-EG)

Connector List

• Engine bay: plugs into the harness Engine Spare 8-position Deutsch connector under the intake manifold
• Engine bay: Bosch (Porsche GT3) throttle body connector
• Cabin: plugs into the harness Cabin Spare 6-position Deutsch connector near the computer
• Cabin: Rywire DBW pedal connector

What's Included

• Engine-bay throttle body sub-harness
• Cabin pedal sub-harness

Frequently Asked Questions

Should I order it with my engine harness?

Yes, ideally. Some changes may be needed on the computer side of the engine harness, and Rywire can install and adjust them when the sub-harness is ordered with the harness.

Does it work with a non-Rywire harness?

This kit is made for the spare connectors on Rywire standalone B/K race harnesses. For other standalone harnesses use the Rywire Drive By Wire Universal Harness Kit (DBW-SUB-Universal). Email service@tunedbyshawn.com with your engine, chassis and ECU before ordering if you are unsure which configuration you need.

Will the Rywire DBW sub-harness work with a non-Rywire harness?

No. The Rywire DBW-Sub is made for the spare connectors on Rywire standalone B/K race harnesses. Other standalone harnesses use the Rywire DBW-SUB-Universal kit.

For off-road and competition use only. Not legal for use on pollution-controlled motor vehicles.
