Rywire Drive-By-Wire Pedal Kit - Honda EG/EK Civic & DC Integra DBW Swap (DBW-PEDAL-KIT-EG)

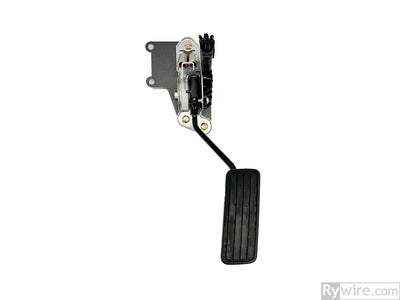

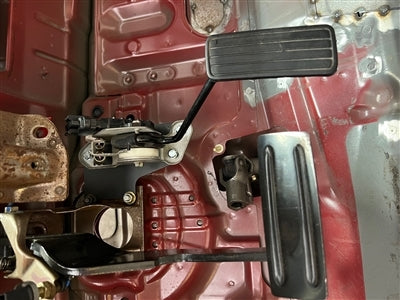

Rywire DBW-PEDAL-KIT-EG is a drive-by-wire accelerator pedal kit designed for the Honda EG and EK Civic and DC Integra chassis. It bolts a new OEM electronic pedal into the car on a powder-coated bracket, ready for a drive-by-wire engine swap (such as a Rywire L15B7 or standalone K/B-series build) or an electric conversion.

Vehicle Fitment

• Designed for Honda EG/DC and EK chassis
• Rywire customers have installed it in CRX chassis with slight modifications
• Rywire believes it may suit most Honda platforms and some other vehicles, unconfirmed

Requirements

• An engine or motor computer that accepts a throttle-by-wire input and can scale the pedal sensor
• An electronic throttle body when used with a gas engine
• The factory throttle pedal will most likely need to be cut off

Pedal Connector Pinout

• Pin 1: pedal 5 V+
• Pin 2: signal 2
• Pin 3: pedal 5 V+
• Pin 4: pedal 0 V ground
• Pin 5: signal 1
• Pin 6: pedal 0 V ground

What's Included

• New OEM drive-by-wire pedal

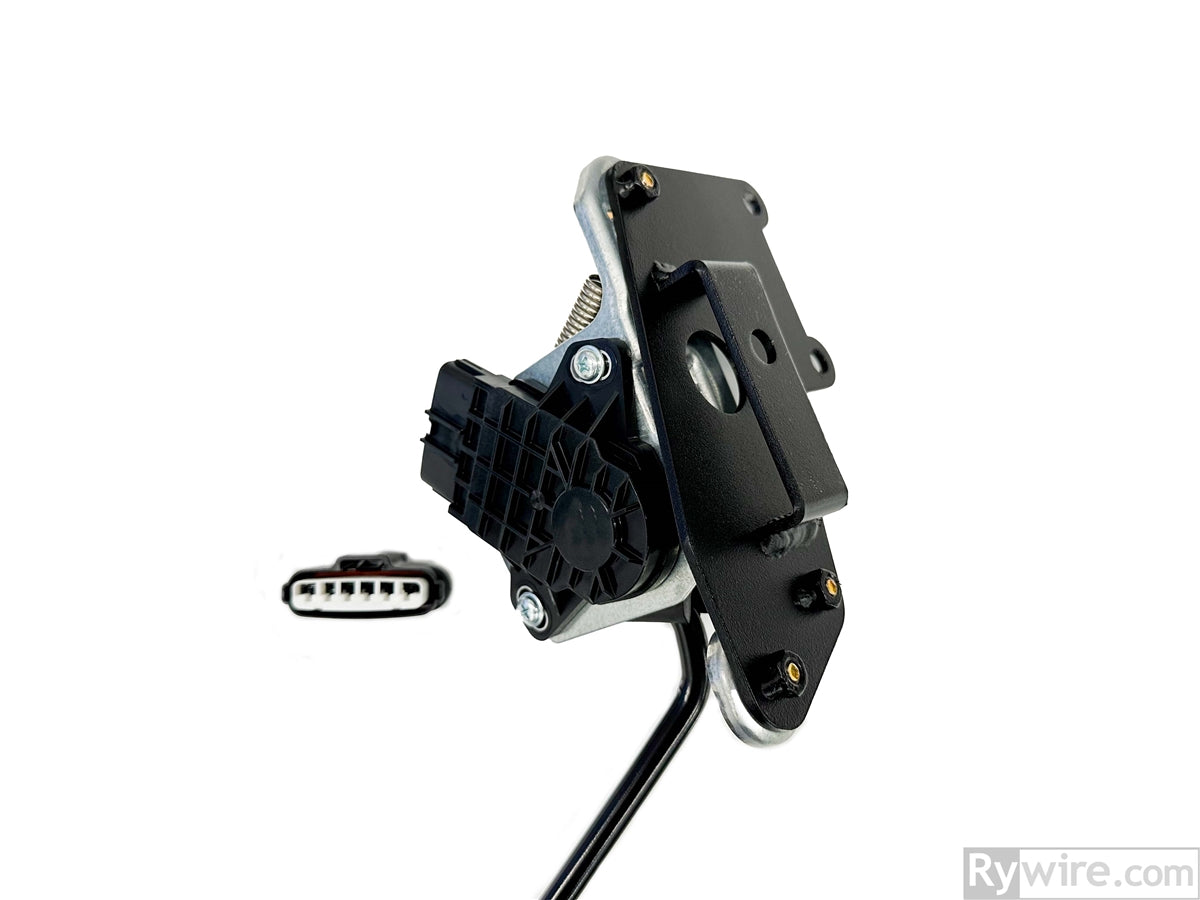

• Powder-coated pedal bracket
• Pedal mounting hardware

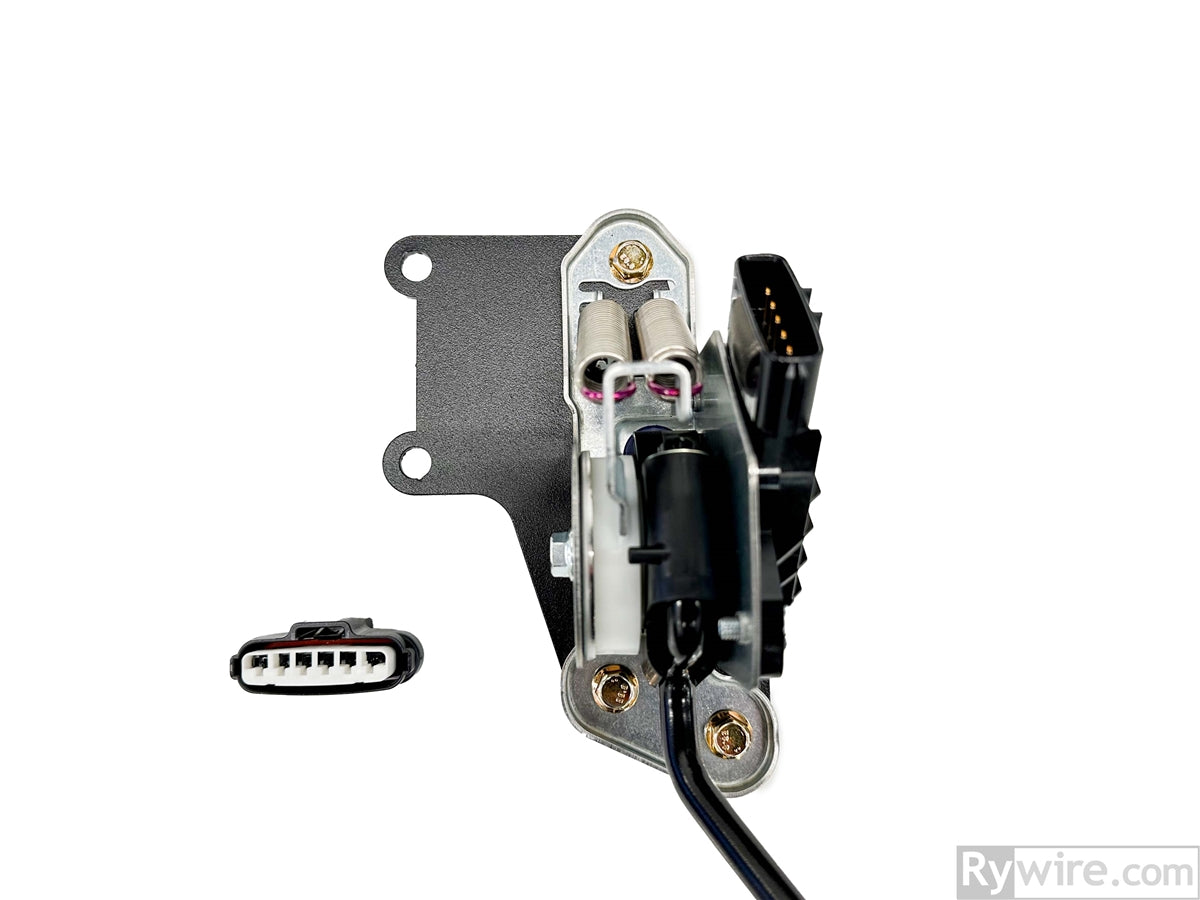

• Pedal connector kit with loose seals and terminals

Frequently Asked Questions

Can I use it with my factory engine computer?

Not likely. You need a computer that accepts a drive-by-wire pedal input and can scale the sensor.

Will a Mugen pedal face fit the pedal pad?

Likely, yes.

How do I wire it to my engine harness?

The Rywire Drive By Wire Sub Harness Kit (DBW-Sub) and Universal Harness Kit (DBW-SUB-Universal) plug into this pedal, and the Rywire L15B7 Swap Engine Harness is prewired for it. Email service@tunedbyshawn.com with your engine, chassis and ECU before ordering if you are unsure which configuration you need.

For off-road and competition use only. Not legal for use on pollution-controlled motor vehicles.
