Rywire Budget Tucked D/B-Series Engine Harness, OBD1 - B-Swap for Civic, CRX, Integra (B1-Base)

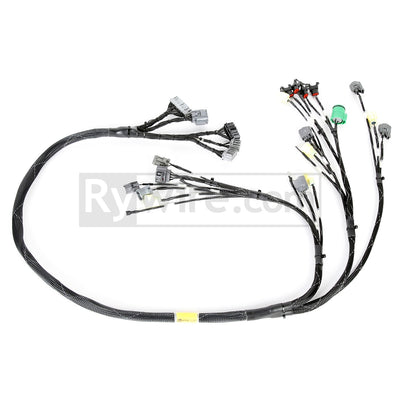

Rywire B1-Base is the budget tucked engine harness for D-series and B-series swaps using OBD1 (1992-1995) engine parts and an OBD1 engine computer. It follows the same layout as the Rywire mil-spec tucked harness; the differences are the single black wire color and expandable loom instead of color-coded wire and heat shrink. The interior side is a separate chassis adapter matched to your car, so if you change chassis later you only need a new adapter, not a new harness.

Why This Budget OBD1 B-Series Swap Harness

The Rywire B1-Base is a new tucked B-series swap harness for D-series and B-series engines with OBD1 engine parts, an OBD1 computer and an interior chassis adapter built for your car.

• Versus re-pinning your donor or factory harness: donor harnesses are often 20+ years old, cut or missing plugs; this Rywire budget harness is all-new wire, pins and plugs, pneumatically crimped and labeled.
• Versus a used junkyard harness: this Rywire budget harness needs no core, is pin-to-pin and resistance tested before shipping, and includes the chassis adapter for the car picked at checkout.
• Versus a universal flying-lead harness: this Rywire budget harness arrives terminated for the full D/B-series connector list and OBD1 computer plugs A, B and D, so no crimping every connector yourself.
• Versus Rywire's mil-spec line: this budget harness keeps the mil-spec layout but uses single-color black wire in expandable loom instead of Tefzel wire under Raychem DR-25 heat shrink.
• Change cars later: this Rywire harness has tucked routing and a separate interior chassis adapter, so a new chassis needs only a new adapter, not a whole harness.

Best for: D/B-series swaps with 1992-1995 injectors, distributor and alternator on an OBD1 computer. Have 1996-2000 parts? Pick B2-Base. Want Tefzel and DR-25? Pick B1-Milspec.

Engine Swap Fitment

• Honda D-series and B-series engines with OBD1 injector, distributor and alternator plugs
• Chassis adapters for 1984-2000 Civic, 1984-1991 CRX, 1990-2001 Integra and 1987-1991 Prelude
• Any other chassis or race car through the Rywire Race Fuse/Relay Box V3 or a custom interior side
• Engine computer: OBD1 (1992-1995) plugs A, B and D. Aftermarket computers with OBD2 plugs and non-US OBD2 computers work through a computer plug adapter; USDM OBD2 computers and stock H22 and GSR computers are not supported

Features

• Tucked routing for a clean engine bay
• Single black wire in expandable loom: the budget version of the Rywire mil-spec tucked harness
• All new connectors, pneumatically crimped and tagged with white labels for easy install
• Interference-prone circuits shielded and grounded
• Every harness pin-to-pin and resistance tested before it ships
• Built to order by Rywire in the USA

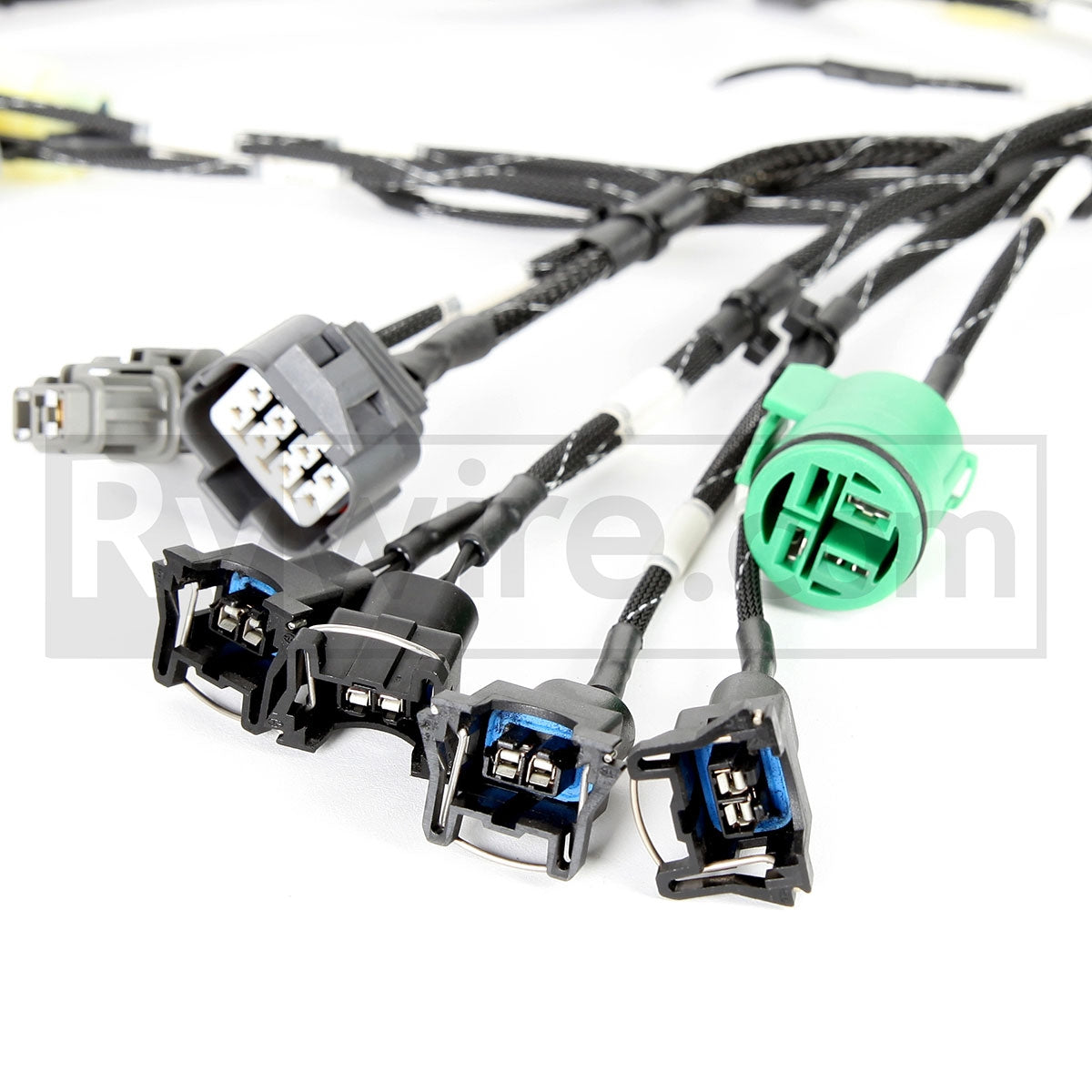

Connector List

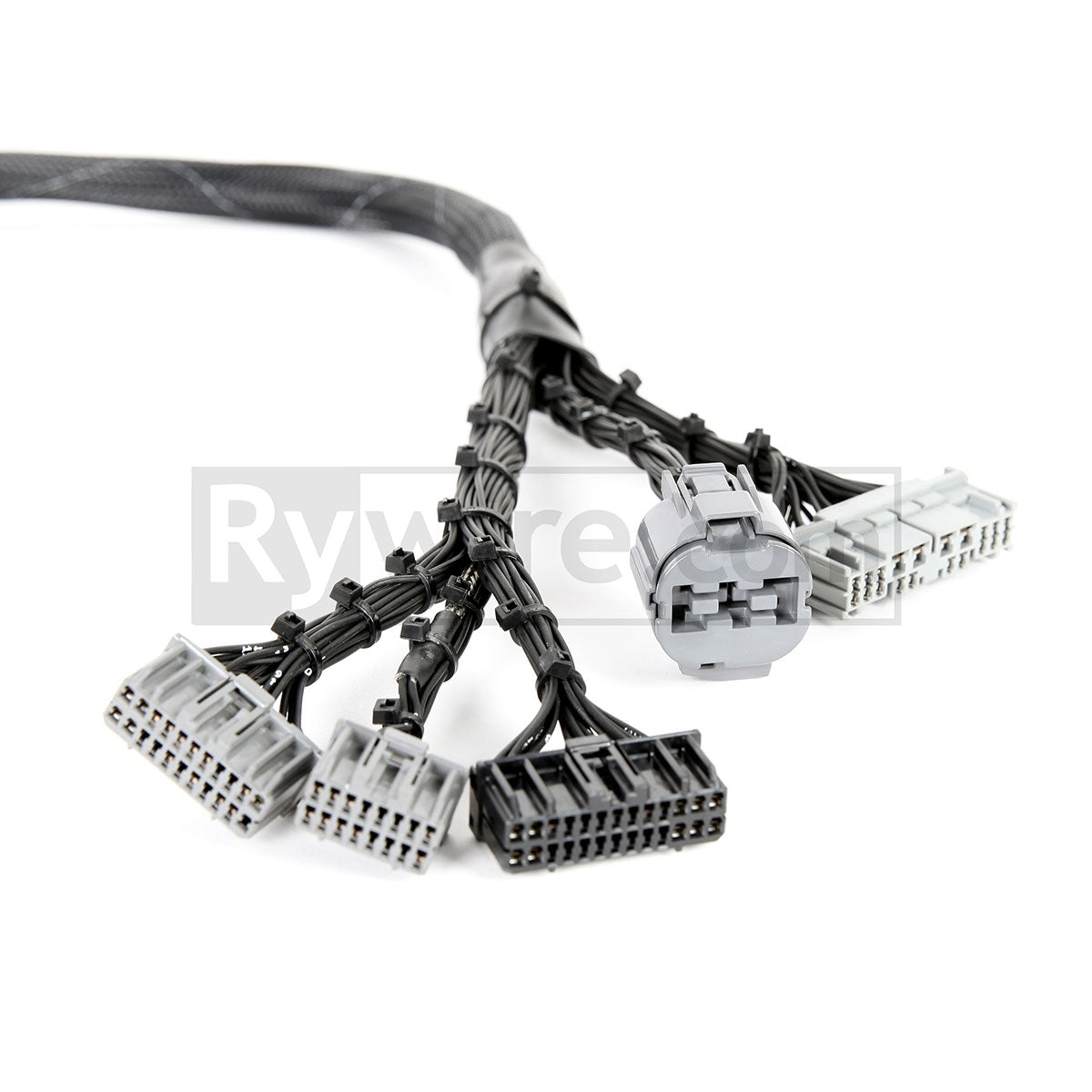

• OBD1 engine computer plugs A, B and D
• Power distribution cap
• Injectors 1-4 (OBD1)
• OBD1 distributor plugs
• Alternator (OBD1)
• Throttle position (TPS)
• MAP sensor
• Intake air temperature (intake manifold style)
• Engine coolant temperature
• Coolant temperature sender for the gauge cluster
• Primary 4-wire oxygen sensor
• Knock sensor
• Oil pressure sending unit
• VTEC solenoid
• Idle control motor
• Electronic speed sensor
• Fan switch
• Reverse lights
• Starter signal
• Ground
• 2 extra wires

Choosing Options

• Chassis Adapter: pick your car to get the matching interior/shock-tower adapter; pick the Race Fuse/Relay Box V3 (with or without the Rywire Switch Panel) for a race car or gutted chassis; pick Rywire PDM System if you are running a Rywire chassis harness with PDM; or pick Other / Custom / Race-Style.

Recommended Add-Ons

• Rywire OBD0/OBD1 to OBD2 Alternator Adapter - 1988-1995 Honda/Acura Chassis.
• Rywire OBD1 Harness to OBD2 Injector Plug Adapters, Set of 4 - Honda OBD0/OBD1.
• Rywire OBD1 Harness to EV14/EV6/Injector Dynamics Injector Plug Adapters - Honda.
• Rywire OBD1 Harness to Nippon Denso/ID2000 Injector Plug Adapters, Set of 4 - Honda.
• Rywire OBD1 Harness to Acura RDX Injector Plug Adapters, Set of 4 - Honda.
• Rywire RyTi Titanium VTEC Solenoid Bolt - VTEC Oil Pressure Switch Delete.
• Rywire One-Piece Charge Harness - Honda B/D/F/H/K-Series Swap Harnesses.
• Rywire Engine Ground Kit - 4-Gauge Battery Cable & 8-Gauge Grounds for Swap Harnesses.

Add any of these from the Recommended Add-Ons list above. Each one is its own listing.

What's Included

• Rywire OBD1 budget tucked D/B-series engine harness
• Chassis adapter or interior side as selected

Frequently Asked Questions

Does this harness work with an OBD2 B-series?

This version has OBD1 injector, distributor and alternator plugs. If your engine has 1996-2000 parts, choose the OBD2 Budget D and B-series Tucked Engine Harness, or adapt the injectors here with the injector adapters.

Can I use an OBD2 computer?

Only aftermarket computers with OBD2 plugs and non-US OBD2 computers, through a computer plug adapter. USDM OBD2 computers, and the stock H22 and GSR computers, are not supported.

What is the difference between the budget and mil-spec harness?

The layout is nearly the same. The budget harness uses single-color black wire in expandable loom; the OBD1 Mil-Spec D and B-Series Tucked Engine Harness uses color-coded Tefzel wire under Raychem DR-25 heat shrink and can take a firewall quick disconnect. Email service@tunedbyshawn.com with your engine, chassis and ECU before ordering if you are unsure which configuration you need.

Should I re-pin my factory harness or buy a Rywire B-series swap harness?

Re-pinning a 20+ year old harness means many splices and hours of work on wiring of unknown condition. The Rywire B1-Base arrives new, terminated for OBD1 engine parts and computer, tested pin to pin, with a chassis adapter for your car.

For off-road and competition use only. Not legal for use on pollution-controlled motor vehicles.
