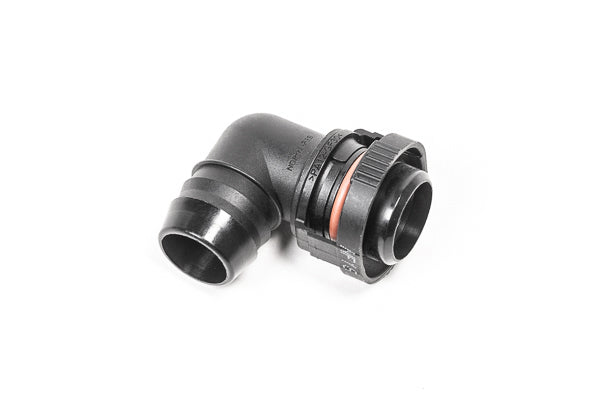

Radium V2 Quick Connect 19mm Male to 90 Degree 3/4in Barb Universal 14-0668

Vendor:Radium Engineering

Radium V2 Quick Connect 19mm Male To 90Deg 3/4in Barb | Universal (14-0668)

SKU: 14-0668

$18.95
From Shawn: Not sure this product is right for your build? Email me at service@tunedbyshawn.com before you order. I answer these myself.

ECUs always ship FREE with Tuned By Shawn!

Manufacturer Limited Warranty

Product details

Description

A hose end that snaps into the factory connector and turns the corner in one piece.

The Radium Engineering V2 quick connect, 19mm male to 90 degree 3/4in barb is a hose end that connects into a 19mm female V2 quick connect on the vehicle and turns ninety degrees into a 3/4 inch barb, routing crankcase ventilation hose tightly off a valve cover or turbo inlet without a separate elbow. Machined from 6061 billet aluminum and type-II anodized for corrosion protection.

Features

  • Connects to a 19mm V2 quick connect female
  • Outlet: 3/4in hose barb, 90 degree
  • 19mm hose ID; male barb OD roughly 22mm, female barb ID roughly 22.5mm
  • 6061 billet aluminum, type-II anodized

The Details

V2 sizing refers to the inside diameter of the hose the connector serves, not any dimension measurable on the fitting itself, which will measure larger. Confirm against the fitment list rather than reaching for calipers. Always lubricate the mating O-rings with petroleum jelly, O-ring lube, or motor oil before installation, and secure the barb end with a proper clamp. If a straight 10AN outlet suits the route better, use 14-0363.

Applications

  • Audi A3, Q3, Q5, Q7, S3, S4 (2.0L EA888); TT (2.0L TSI)
  • Porsche Macan (2.0T EA888)
  • VW Golf GTI MK7, Golf R MK7, Jetta (1.8L EA888), Passat (1.8L and 2.0L), Arteon, Alltrack, Beetle, Corrado, Phaeton
