Radium V2 Quick Connect 15mm Female to 10AN Male Straight Universal 14-0763

Vendor:Radium Engineering

Radium V2 Quick Connect 15mm Female To 10AN Male Straight | Universal (14-0763)

SKU: 14-0763

$18.95
From Shawn: Not sure this product is right for your build? Email me at service@tunedbyshawn.com before you order. I answer these myself.

ECUs always ship FREE with Tuned By Shawn!

Manufacturer Limited Warranty

Product details

Description

The MK8 and newer EA888 cars moved to a smaller V2 connector, and the 19mm fittings will not touch them.

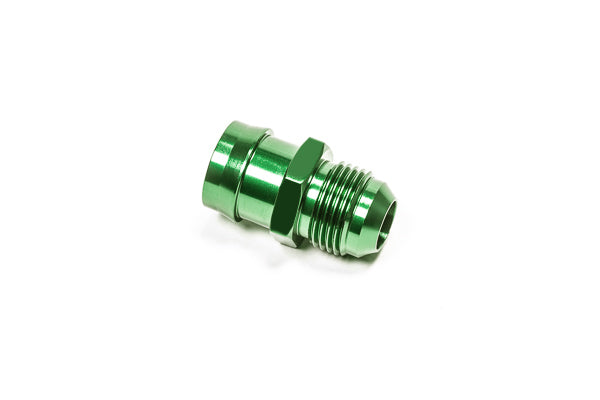

The Radium Engineering V2 quick connect, 15mm female to 10AN male straight adapts the male side of a 15mm V2 quick connect to a 10AN male fitting, covering the later EA888 platforms and the BMW S54 that use the smaller connector for crankcase ventilation and turbo inlet plumbing. Machined from 6061 billet aluminum and type-II anodized for corrosion protection.

Features

  • Connects to a 15mm V2 quick connect male
  • Outlet: 10AN male
  • 15mm hose ID; male barb OD roughly 18.1mm, female barb ID roughly 18.6mm
  • 6061 billet aluminum, type-II anodized

The Details

V2 sizing refers to the inside diameter of the hose the connector serves, not any dimension measurable on the fitting itself. Check your platform against the fitment list, since 15mm and 19mm connectors look similar at a glance and are not interchangeable; the 19mm equivalent of this fitting is 14-0363. Always lubricate the mating O-rings with petroleum jelly, O-ring lube, or motor oil before installation.

Applications

  • Audi A4, A5, A6, Q3, Q5, Q7, S3, S4 (EA888)
  • BMW M3 E46 (S54)
  • Porsche Macan (EA888)
  • VW Golf GTI MK8, Golf R MK8, Arteon, Atlas, Passat, Tiguan (EA888)
