Radium Universal Check Valve Kit 8AN | Universal (20-0534-08)

The check valve plus every fitting needed to make it 8AN on both ends.

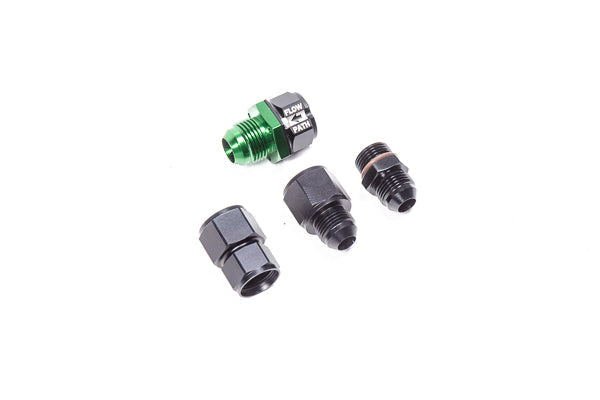

The Radium Engineering universal check valve kit, 8AN pairs the 20-0534 check valve body with all the adapter fittings required to convert both the inlet and the outlet to 8AN male or 8AN female, covering every plumbing scenario for that size in one box. The valve's internal plunger is shaped for smooth laminar flow, and the flow direction is laser etched on the body so it cannot be installed backwards.

Features

• 20-0534 check valve body plus 8AN adapter fittings for inlet and outlet
• Converts to 8AN male and/or 8AN female as the install requires
• Aerodynamic internal plunger for laminar flow
• Flow direction laser etched on the body
• Compatible with all fuel types including E85

The Details

The valve's native ports are a 10AN male outlet and an 8AN female inlet, so on an 8AN system the inlet may already suit while the outlet needs adapting; this kit supplies fittings for both ends and every combination. If your plumbing is 6AN or 10AN, the 20-0534-06 and 20-0534-10 kits cover those sizes, and the bare 20-0534 valve is available on its own if you already have adapters.

Applications

• Universal, any 8AN fuel or vapor circuit requiring a one-way valve
