Radium Universal Check Valve Kit 6AN | Universal (20-0534-06)

The check valve plus every fitting needed to make it 6AN on both ends.

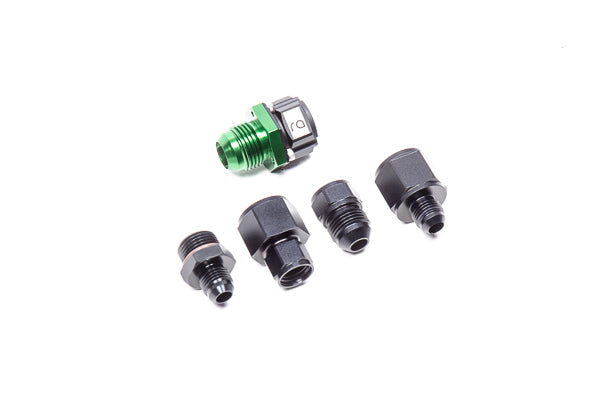

The Radium Engineering universal check valve kit, 6AN pairs the 20-0534 check valve body with all the adapter fittings required to convert both the inlet and the outlet to 6AN male or 6AN female, covering every plumbing scenario for that size in one box. The valve's internal plunger is shaped for smooth laminar flow, and the flow direction is laser etched on the body so it cannot be installed backwards.

Features

• 20-0534 check valve body plus 6AN adapter fittings for inlet and outlet
• Converts to 6AN male and/or 6AN female as the install requires
• Aerodynamic internal plunger for laminar flow
• Flow direction laser etched on the body
• Compatible with all fuel types including E85

The Details

The valve's native ports are a 10AN male outlet and an 8AN female inlet, so on a 6AN system both ends need adapting; this kit supplies those fittings rather than leaving you to source them. If your plumbing is 8AN or 10AN, the 20-0534-08 and 20-0534-10 kits cover those sizes, and the bare 20-0534 valve is available on its own if you already have adapters.

Applications

• Universal, any 6AN fuel or vapor circuit requiring a one-way valve
