Radium Swing Valve Remote Mount Fuel Filler | Universal (20-1103 / 20-1003 / 20-1203)

Capless filling, the way modern OEM cars do it. Nothing to unscrew, nothing to drop in the gravel.

The Radium Engineering swing valve remote mount fuel filler mounts to bodywork such as a fender and swings open when a fill nozzle is inserted, exactly like a factory capless filler. The valve seals on an FKM O-ring, and a press-fit dust cap tethers from the flange mount for quick access. The 30mm opening takes both gasoline and diesel nozzles.

Choose Your Version

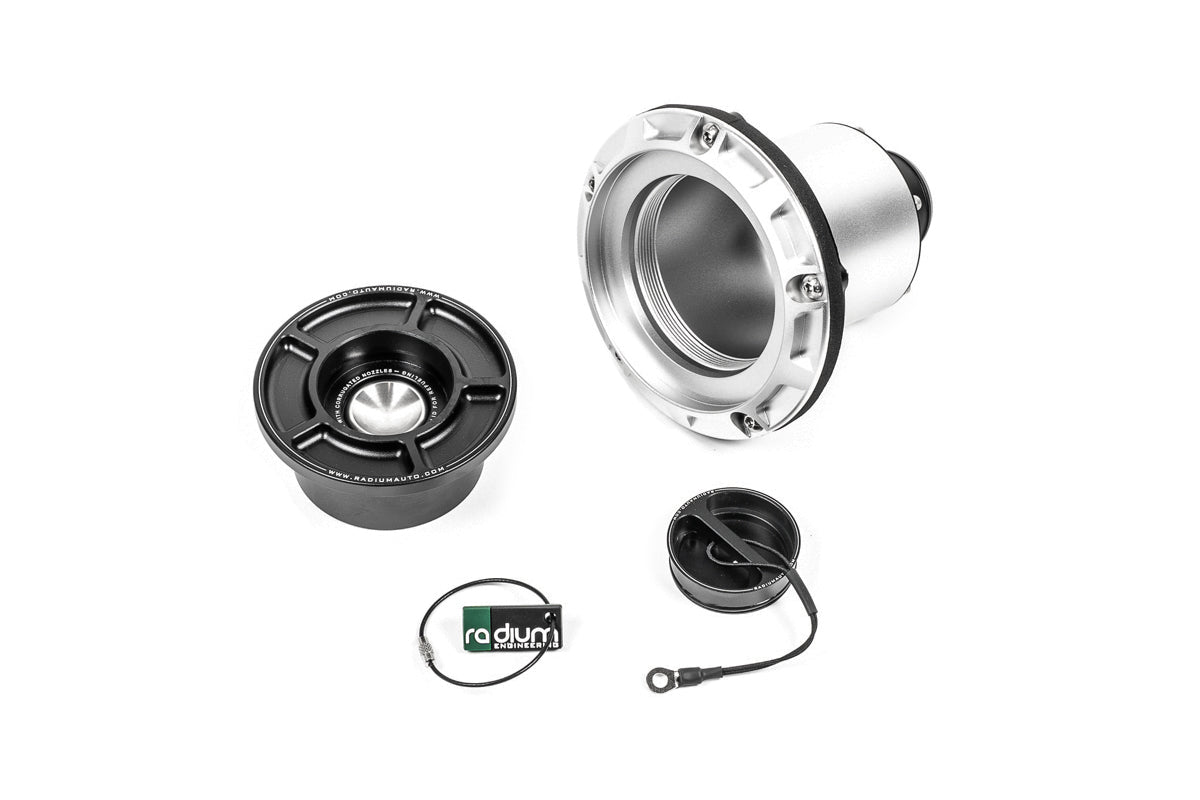

• 1.5in straight barb (20-1003): compact straight outlet for 1.5in filler hose

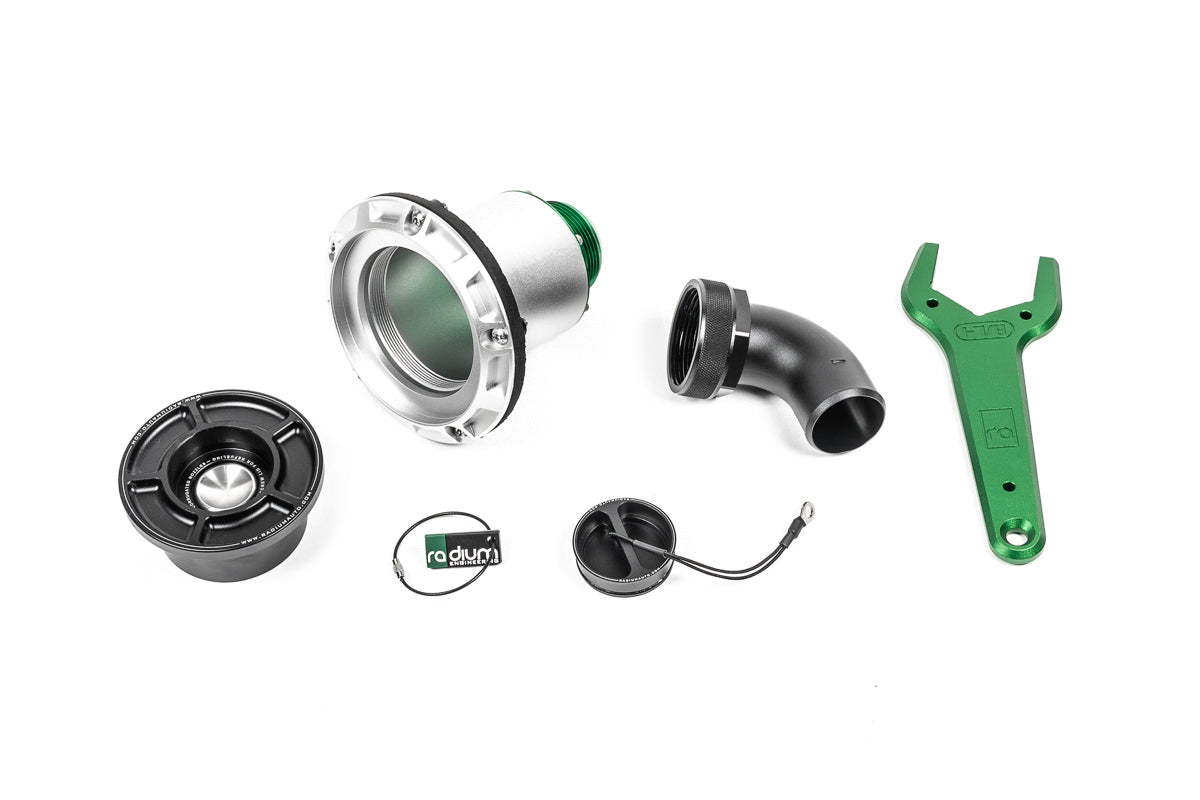

• 1.5in 24AN elbow (20-1103): 75 degree elbow that rotates to point any direction, and can be removed to attach 24AN filler hose. Includes B-nut and 1-7/8in wrench

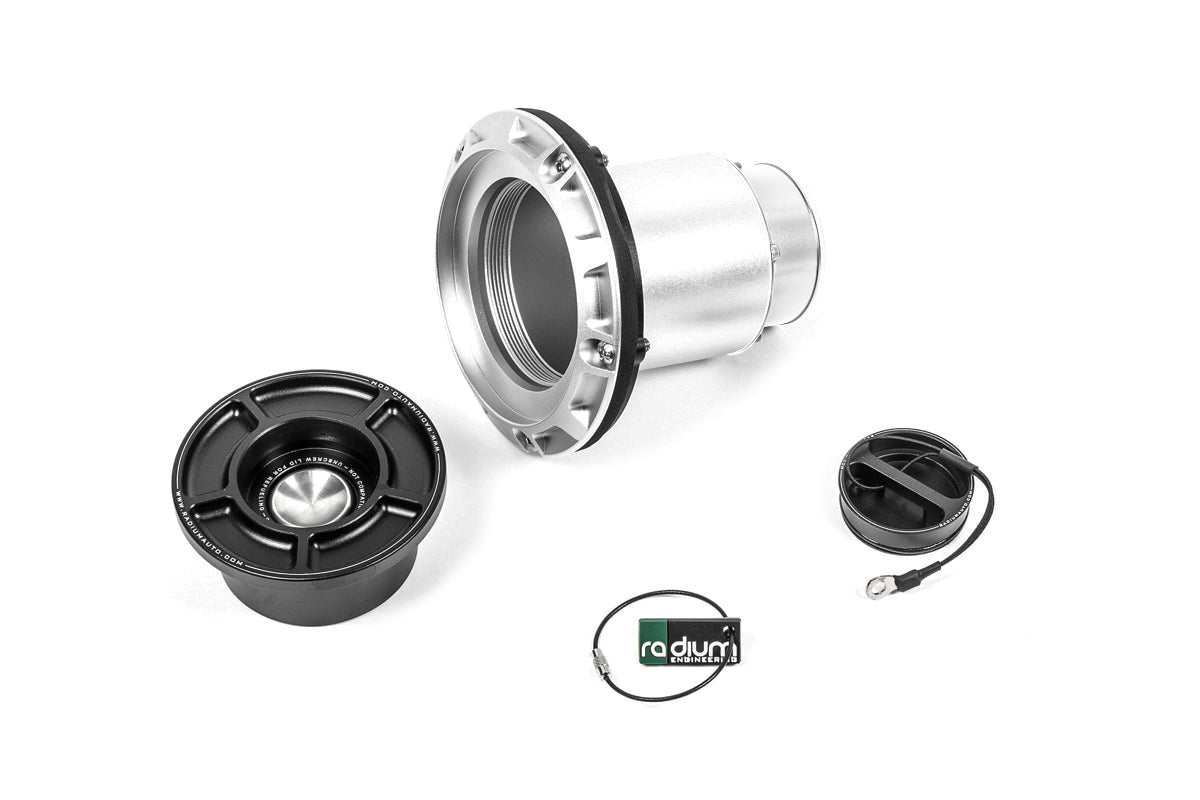

• 2.25in straight barb (20-1203): compact straight outlet for high volume 2.25in filler hose

What You'll Feel

• Refuelling without unscrewing a cap, then walking away without one to lose
• A 30mm opening that accepts any pump nozzle, gasoline or diesel
• An outlet you can change later without replacing the filler
• A dust cap tethered to the housing rather than rattling in the boot

Features

• Capless swing valve sealing on an FKM O-ring
• 30mm opening for gasoline and diesel nozzles
• Press-fit tethered dust cap
• Flange outer diameter 4.75in, bolt circle 4.25in PCD, five M5 bolts, total height 4.1in
• O-ring sealed interchangeable outlet adapter, six screws to swap
• Ozone and flame resistant gasket, anodized aluminum nut ring, stainless M5 bolts

The Details

A remote filler is one of three parts: this housing and cap on the bodywork, a fill neck at the tank or FCST end, and the filler hose joining them. This listing is the first of those three, so budget for the other two.

The outlet adapter is O-ring sealed and held by six screws, so the hose size is not a permanent decision; the 20-1007, 20-1008, and 20-1015 adapters swap it between 2.25in, 24AN, and 1.5in later. Better still, all three Radium filler cap styles share the same threads, so a swing valve filler can be converted to dry break operation down the line by fitting a 20-0549-V receptacle rather than buying a new housing.

Kit Includes

• Swing valve cap
• Flanged fill neck for the selected outlet size
• 24AN B-nut, elbow, and wrench (elbow version only)
• Ozone and flame resistant gasket, anodized aluminum nut ring, stainless steel M5 bolts
• Tether components
• NOT included: filler hose, fill neck for the tank end, and any tank connection accessories

Applications

• Universal remote mounting to an external body panel such as a fender

Important Notes

• Requires a 77mm (3.03in) hole to be fabricated in the mounting surface
• Does not include accessories to connect to the fuel tank or cell
• Can be upgraded to a dry break later using the 20-0549-V receptacle
