Radium SAE Quick Connect Adapter Fittings

Factory fuel lines speak SAE quick connect; your aftermarket system speaks AN. Someone has to translate.

Modern OEM fuel systems use SAE quick connect ends on their hard lines, and the cleanest builds adapt them instead of cutting them. Radium Engineering SAE Quick Connect Adapter Fittings make the handshake: female quick connects that click onto factory line ends and convert to 6AN male or barb, including low-profile elbows for tight quarters, plus ORB-to-SAE-male adapters that give Radium rails, filters, and hangers a factory-style connection point. Anodized, fuel-safe, and sold individually by exact configuration.

What You'll Feel

• Click-on, leak-free connections to factory lines with no cutting, flaring, or scrapped hard lines
• Fitment in cramped spots thanks to the low-profile elbow designs
• A reversible install, since the factory line is untouched if you ever return to stock
• Radium components speaking factory quick connect via the ORB-to-SAE male options

Features

• Anodized aluminum construction, compatible with all fuel types including E85

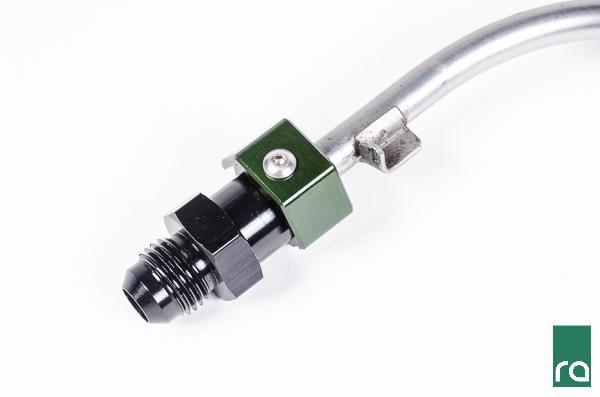

• Low-profile quick connect elbows: 5/16" SAE female to 6AN male (20-0290) and 3/8" SAE female to 6AN male (20-0291)
• Barb conversions: 3/8" SAE female to 5/16" barb, straight (14-0253) and 90-degree (14-0227)
• Port adapters: 10AN ORB to 5/16" SAE male (14-0337) and 10AN ORB to 3/8" SAE male (14-0338)
• Female quick connect ends mate directly to factory SAE fuel line fittings

The Details

SAE quick connects are the plastic-and-steel snap fittings on virtually every modern car's fuel lines, sized by the hard line OD, most commonly 5/16" and 3/8". Measure the factory line before ordering, because the two sizes look similar and do not interchange. The female-to-6AN options are the workhorses here: they click onto the factory feed line and hand off to AN hose, exactly how Radium's own plumbing kits adapt OEM lines (the 20-0290 is the same fitting used in the Evo X rail plumbing kit). The barb versions serve low-pressure and return duties with clamped hose. The ORB-to-SAE-male adapters run the opposite direction, threading into a 10AN ORB port on a Radium filter, rail, or hanger and presenting a factory-style male end that an OEM line or another quick connect fitting can click onto. Push each connection until it clicks, then tug-test; that is the whole install.

Kit Includes

• 1x Fitting per selected option

Applications

• Universal: adapting factory SAE quick connect fuel lines to 6AN or barbed hose
• Adapting 10AN ORB ports on Radium filters, rails, and hangers to factory-style SAE male ends
• Compatible with all fuel types including ethanol blends such as E85
