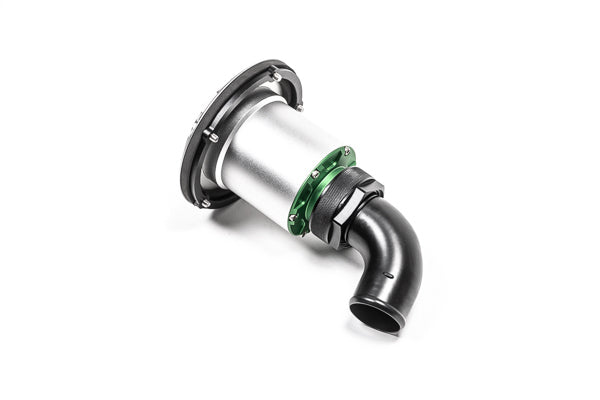

Radium remote filler with 24AN elbow installed 20-1104-V

Vendor:Radium Engineering

Radium Remote Mount Vented Female Dry Break 1.5in Elbow | Universal (20-1104-V)

SKU: 20-1104-V

$322.95
Shipping calculated at checkout.
From Shawn: Not sure this product is right for your build? Email me at service@tunedbyshawn.com before you order. I answer these myself.

ECUs always ship FREE with Tuned By Shawn!

Manufacturer Limited Warranty

Product details

Description

When the filler hose has to turn hard the moment it leaves the fender, a straight barb is not an option.

The Radium Engineering remote mount vented female dry break, 1.5in elbow mounts to an external body panel such as a fender and receives the male dry break probe from a dump can. This version ships with a 75 degree 24AN hose end and a 1.5 inch barb, so the filler hose can be routed immediately away from the panel rather than needing space behind it for a straight run. The vented fuel cap includes roll-over protection if the car ends up inverted.

What You'll Feel

  • Fast, spill-free fills with the probe locking into the panel-mounted receiver
  • A 75 degree hose exit that solves tight fender and trunk packaging
  • Roll-over protection built into the vented cap
  • Full fuel compatibility including methanol and E85

Features

  • 1.5in female dry break receptacle in an aluminum remote housing
  • 75 degree 24AN hose end with 1.5in barb, plus a 24AN b-nut and 1-7/8in wrench
  • Vented fuel cap with roll-over protection
  • Flange outer diameter 4.75in, bolt circle 4.25in PCD, requires a 77mm (3.03in) hole
  • Threaded mounting ring, gasket, and stainless steel hardware

The Details

All three Radium remote fillers share the same housing, hole size, and flange pattern; they differ only in what leaves the back. This one exits at 75 degrees through 24AN, the 20-1004-V uses a straight 1.5in barb, and the 20-1204-V uses a straight 2.25in barb. Better still, the outlet adapter is O-ring sealed and interchangeable: six screws swap it, so a filler bought today can change hose size later using the 20-1007, 20-1008, or 20-1015 adapters. Mates to the 20-0996 or 20-0496 male probe. Add the 20-0604 dust cap to keep debris out of the receiver between fills.

Kit Includes

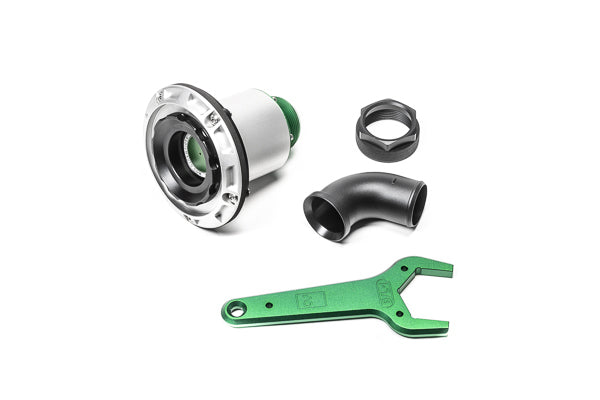

  • Remote mount housing and dry break receptacle
  • 24AN adapter, 24AN wrench, 24AN b-nut, and 75 degree 1.5in barb
  • Threaded mounting ring, gasket, and stainless steel hardware
  • NOT included: male dry break probe, filler hose, and dust cap

Applications

  • Universal remote mounting to an external panel such as a fender
  • Connects to 1.5in ID or 24AN filler hose

Important Notes

  • Requires a 77mm (3.03in) hole to be fabricated in the mounting surface
