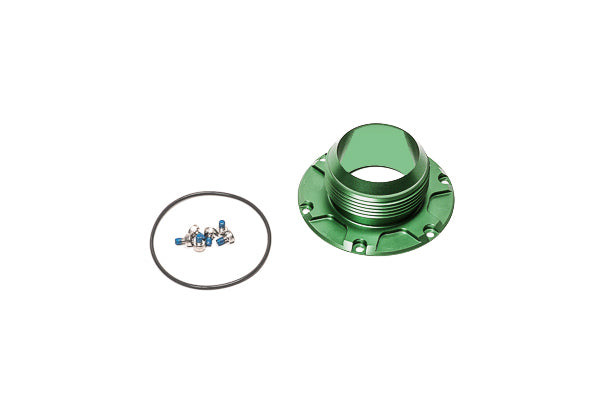

Radium Remote Mount Filler Adapter 24AN | Universal (20-1008)

Six screws change your filler's hose size. This is the 24AN outlet.

The Radium Engineering remote mount filler adapter, 24AN replaces the standard 1.5 inch barbed outlet on a Radium remote fuel filler with a 24AN fitting, for builds plumbing the filler in AN hose rather than push-on barb. The outlet is O-ring sealed and held by six screws, so swapping it is a bench job rather than a new filler purchase.

Features

• 24AN outlet adapter
• O-ring sealed, six screw installation
• Stainless mounting hardware included

The Details

This adapter pairs naturally with Radium's 24AN 75 degree hose end (20-1009), which is how you get a tight bend immediately off the filler without kinking a large hose. If you would rather buy that combination assembled, the 20-1104-V filler ships with the 24AN adapter and 75 degree elbow already included. The three outlet options are interchangeable on the same housing: 1.5in barb (20-1015), 2.25in barb (20-1007), and 24AN here. Check your housing first, since early remote fill housings were built without interchangeable adapters.

Kit Includes

• 24AN adapter, O-ring, and stainless mounting hardware

Applications

• All Radium remote fillers with interchangeable outlet adapters, including 20-1004-V, 20-1104-V, and 20-1204-V

Important Notes

• Not compatible with early remote fill housings that lack interchangeable adapters, including 20-0504-V and 20-0505-V
