Radium Remote Mount Filler Adapter 2.25in | Universal (20-1007)

Six screws change your filler's hose size. This is the 2.25 inch outlet.

The Radium Engineering remote mount filler adapter, 2.25in replaces the standard 1.5 inch barbed outlet on a Radium remote fuel filler with a 2.25 inch barb, for builds running high volume filler hose. The outlet is O-ring sealed and held by six screws, so swapping it is a bench job rather than a new filler purchase.

Features

• 2.25in barbed outlet adapter
• O-ring sealed, six screw installation
• Stainless mounting hardware included

The Details

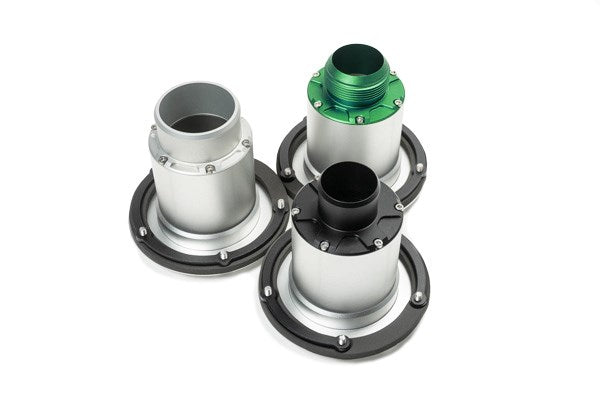

Radium remote fillers ship with a 1.5 inch barb as standard, so this adapter is the upgrade path when the filler hose needs to be larger for faster fills on a big cell. The three outlet options are interchangeable on the same housing: 1.5in barb (20-1015), 24AN (20-1008), and 2.25in barb here. Check your housing first, since early remote fill housings were built without interchangeable adapters.

Kit Includes

• 2.25in adapter, O-ring, and stainless mounting hardware

Applications

• All Radium remote fillers with interchangeable outlet adapters, including 20-1004-V, 20-1104-V, and 20-1204-V

Important Notes

• Not compatible with early remote fill housings that lack interchangeable adapters, including 20-0504-V and 20-0505-V
