Radium Port Injection Kit | Audi R8 Type-42 / Lamborghini Gallardo LP (20-0865)

A 5.2L V10 running serious boost outruns its direct injection system, and there is no bigger DI pump waiting to save it.

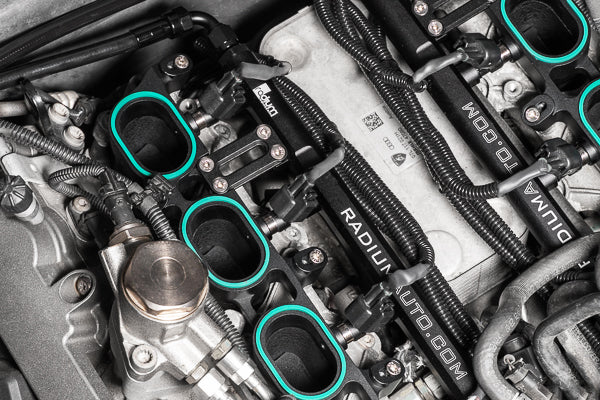

The Radium Engineering Port Injection Kit for the Audi R8 and Lamborghini Gallardo LP installs between the intake manifold and the lower runners on the cylinder heads, adding port injectors to carry the fuel the DI system cannot supply on highly modified engines. It does not replace the OEM direct injection system; it supplements it. Anodized aluminum adapter plates carry big bore fuel rails on anodized mounts, with intake manifold gaskets and stainless hardware included. Compatible with all fuel types including E85.

What You'll Feel

• The DI fueling ceiling lifted on a built V10, with port injectors carrying the top end
• Big bore rails that will not become the next restriction as injector size climbs
• Full E85 capability on a platform that otherwise runs out of fuel first
• Factory drivability retained, since the OEM direct injection system is left intact

Features

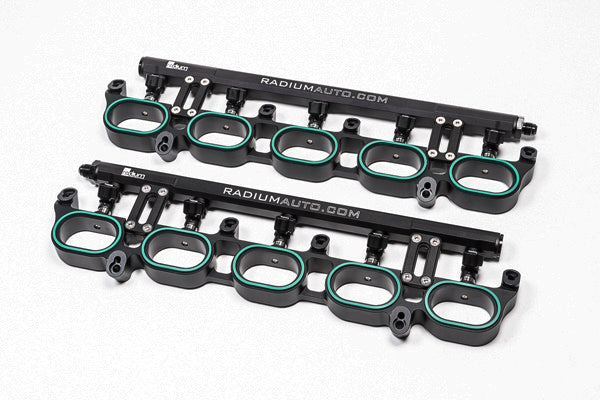

• Anodized aluminum PIK adapter plates installing between manifold and lower runners
• Anodized aluminum big bore fuel rails with dedicated mounts
• Intake manifold gaskets and stainless steel hardware included
• Designed for top feed injectors with 14mm upper and lower O-rings and a short 34mm body
• Doubles as a plain intake manifold spacer using 2AN ORB plugs, with the rails left off

The Details

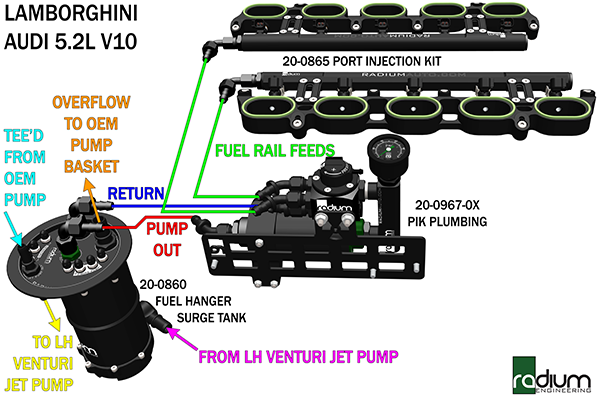

Injector selection is strict and worth getting right before ordering: the kit requires top feed injectors with 14mm upper and lower O-rings and a 34mm short body. Radium does not sell injectors and names several direct-fitment options in that dimension class, so confirm dimensions with your injector supplier. Because the plates space the intake manifold upward, a minor throttle body coupler adjustment may be needed. Everything downstream of the rails is a separate purchase: the 20-0967-03 or 20-0967-05 PIK plumbing kit supplies the regulator, filter, gauge, hoses, and fittings, though note that plumbing kit fits Gallardo LP only. For the fuel supply itself, Radium recommends the 20-0860 fuel hanger surge tank, which feeds port injection from a fully independent circuit.

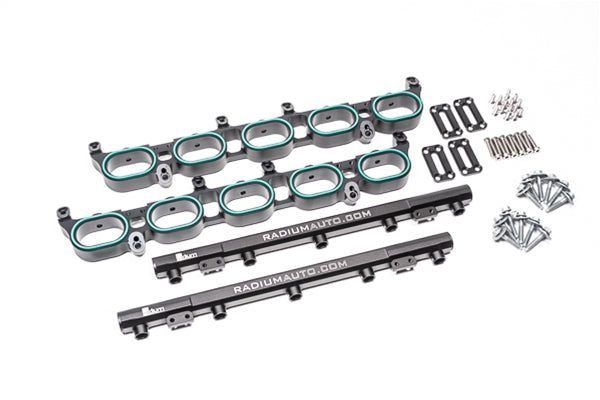

Kit Includes

• Anodized aluminum PIK adapter plates
• Anodized aluminum big bore fuel rails and fuel rail mounts
• Intake manifold gaskets and stainless steel hardware
• NOT included: fuel injectors, port fittings, fuel hose, wiring, injector controller, charge pipe, and the plumbing kit

Applications

• 2006-2015 Audi R8 Type-42, all Gen1 V10 trims
• 2008-2013 Lamborghini Gallardo LP550-2, LP560-4, and LP570-4, all trims

Important Notes

• Not compatible with the first generation Lamborghini Gallardo 5.0L engine
• Not compatible with the second generation Audi R8 Type-4S upper or lower intake manifold
• Not compatible with the Lamborghini Huracan upper or lower intake manifold
• The 20-0967 PIK plumbing kit fits Gallardo LP only; R8 Type-42 owners must source plumbing separately
