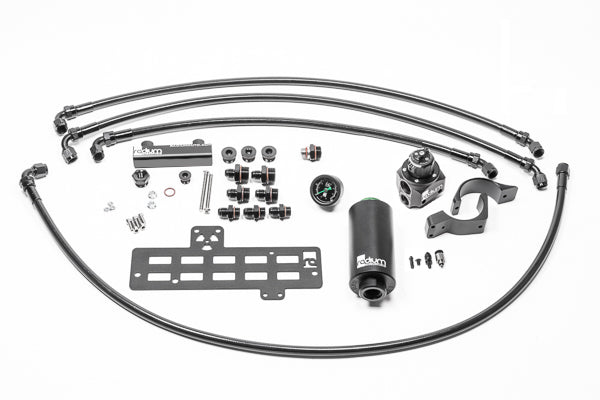

Radium PIK Plumbing Kit Lamborghini Gallardo LP 20-0967-03 20-0967-05

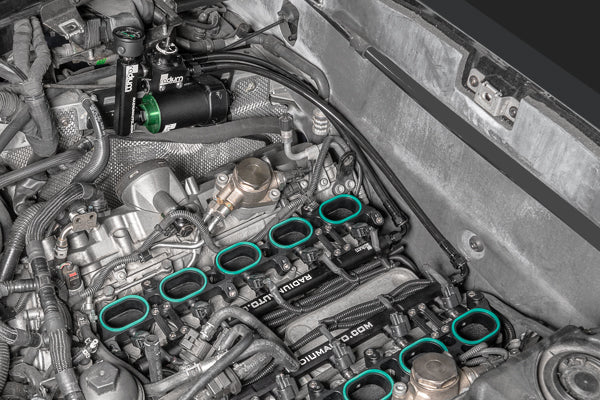

Radium Gallardo LP port injection plumbing installation 20-0967

Vendor:Radium Engineering

Radium PIK Plumbing Kit | 2008-2013 Lamborghini Gallardo LP (20-0967-03 / 20-0967-05)

SKU: 20-0967-03

Filter
Filter: Stainless Filter (20-0967-03)
$664.95
From Shawn: Not sure this product is right for your build? Email me at service@tunedbyshawn.com before you order. I answer these myself.

ECUs always ship FREE with Tuned By Shawn!

Manufacturer Limited Warranty

Product details

Description

Port injectors need their own regulated, filtered supply, and on a Gallardo there is nowhere convenient to put one.

The Radium Engineering PIK plumbing kit for the Lamborghini Gallardo LP makes the port injection circuit fully independent. It provides crimped 6AN PTFE hoses, black anodized adapter fittings, an RA-series 1:1 fuel pressure regulator, a 0-100 psi fuel pressure gauge, and a fuel filter with your choice of element, all carried on a black mounting bracket that bolts to the LH side of the engine using OEM threaded bosses on the frame rail. No drilling, no permanent modifications.

Choose Your Kit

  • Stainless Filter (20-0967-03): 10 micron stainless element, cleanable and reusable
  • Microglass Filter (20-0967-05): 6 micron microglass element for the finest filtration

What You'll Feel

  • A genuinely independent port injection fuel circuit, regulated and filtered on its own terms
  • 1:1 rising rate pressure tracking boost, from the RA-series regulator
  • Pressure you can read and set, with the gauge included rather than sourced separately
  • A factory-bosses install on the LH frame rail, no drilling into a Gallardo

Features

  • RA-series 1:1 fuel pressure regulator
  • 0-100 psi fuel pressure gauge
  • Fuel filter, stainless or microglass element
  • Crimped 6AN PTFE hoses and black anodized adapter fittings
  • Black mounting bracket using OEM frame rail threaded bosses, plus stainless steel hardware

The Details

This kit is the middle section of a three-part system. The Radium port injection kit (20-0865) supplies the adapter plates and big bore rails at the engine, this kit supplies regulation and filtration on the frame rail, and the Radium fuel hanger surge tank (20-0860) is the recommended supply, feeding port injection from a completely separate circuit while the OEM pump continues serving direct injection undisturbed. Fitment here is narrower than the port injection kit it serves: this plumbing is Gallardo LP only. Injectors, wiring, and the injector controller remain the builder's responsibility.

Kit Includes

  • Fuel filter in the selected element
  • RA-series 1:1 fuel pressure regulator and 0-100 psi fuel pressure gauge
  • Crimped 6AN PTFE hoses, black adapter fittings, black mounting bracket, stainless steel hardware
  • NOT included: the port injection kit (20-0865), the fuel hanger surge tank (20-0860), fuel injectors, wiring, and injector controller

Applications

  • 2008-2013 Lamborghini Gallardo LP550-2, LP560-4, and LP570-4, all trims

Important Notes

  • Not compatible with the Audi R8 or Lamborghini Huracan, even though the 20-0865 port injection kit it serves also fits the R8 Type-42
