Radium PCV Catch Can Kit | 2011+ Ford Mustang GT (20-0267-FL)

The Coyote's PCV valve meters vacuum all day, and every hour of it pulls oil toward the manifold.

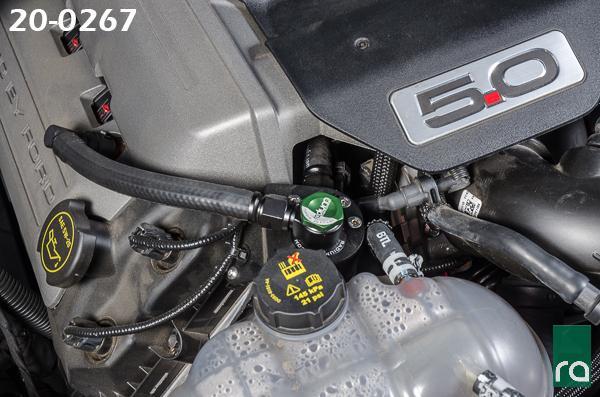

The Radium Engineering PCV Catch Can Kit for the Ford Mustang GT serves the 5.0 in both the S197 and S550 chassis, mounting on the front right engine bank: the catch can runs inline with the PCV valve and retains its factory function, intercepting the crankcase vapor, unspent fuel, and oil sludge that metered vacuum would otherwise draw into the intake manifold immediately after a high load run. Because Radium catch cans are pressure sealed, intake manifold connection is permitted and the kit suits boosted applications, installing in minutes and removing easily for servicing. This kit is SEMA certified and 49-state EPA legal, with a Certificate of Compliance available for emissions tests and inspections.

What You'll Feel

• An intake manifold staying clean instead of collecting the post-run oil draw
• Effectively raised octane and performance from cleaner inlet air on a knock-limited 5.0
• Boost-ready sealing for supercharged Coyote builds, manifold connection permitted
• Minutes-long installation and equally quick servicing
• Inspection-day confidence from SEMA certification and the compliance certificate

Features

• PCV catch can kit for the Coyote Mustang GT, S197 and S550 chassis; mounts on the front right engine bank
• Runs inline with the PCV valve, retaining factory check valve function
• Pressure sealed can: suitable for boosted applications with manifold connection
• SEMA CERTIFIED and 49-state EPA legal with Certificate of Compliance
• Radium catch can with oil separation internals and service dipstick
• Chassis-specific bracket, hoses, and hardware; installs in minutes

The Details

The PCV circuit's physics explain the can's placement: when manifold pressure approaches or exceeds atmospheric, the PCV check valve closes and the hose sees no flow, but at idle, cruise, and deceleration the metered vacuum pulls hard on the crankcase, exactly when a hot engine's vapor load is richest. The can intercepts that draw and holds it, with the dipstick telling the service story; check at 3 to 4 weeks initially and learn the engine's rate. For the most protection, Radium recommends the dual catch can kit combining this PCV side with the chassis-specific crankcase kit, the S197 and S550 each having their own CCV companion. Closed-loop routing keeps everything emissions and track legal.

Kit Includes

• 1x Radium catch can with dipstick
• Chassis-specific mounting bracket, hoses, fittings, and hardware

Applications

• 2011-2014 Ford Mustang GT 5.0 (S197)
• 2015-2017 Ford Mustang GT 5.0 (S550)
• SEMA certified, 49-state EPA legal; dual kits pair this with the chassis crankcase kit
