Radium Oil Catch Can Kits | 2014-2017 Ford Fiesta ST (20-0377-FL)

The Fiesta ST's 1.6 EcoBoost breathes hard for its size, and every breath carries oil toward the intake.

Small displacement plus big boost equals concentrated blow-by, and the direct-injected EcoBoost has no fuel wash to clean what lands on its valves. The Radium Engineering Catch Can Kits for the 2014-2019 Fiesta ST cover both circuits with Fluid Lock cans: the PCV kit (20-0377-FL) secures to the front RH motor mount inline with the PCV valve, the crankcase kit (20-0378-FL) mounts to the two ECU studs on the back LH side inline with the crankcase vent, and both tuck entirely under the OEM engine cover with zero cutting, drilling, or permanent modification. The dual kit (20-0379-FL) delivers both. Sealed, emissions and track legal, and in the PCV kit's case, SEMA certified and 49-state EPA legal.

What You'll Feel

• Cleaner intake valves on a DI engine with no self-cleaning mechanism
• An intercooler and charge path staying oil-free, protecting thermal efficiency

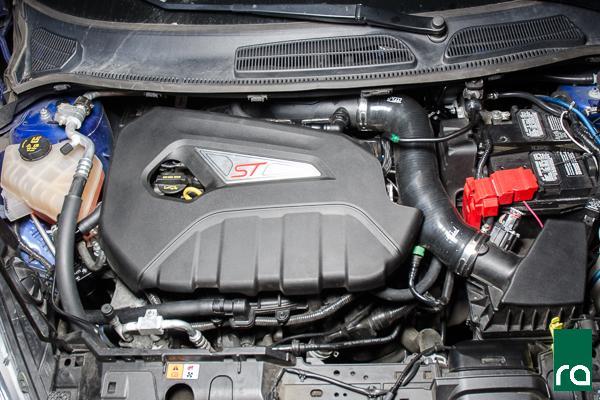

• A completely stock-looking bay, with everything hidden under the OEM engine cover
• Emissions-legal peace of mind from a fully closed, non-VTA system, with SEMA certification on the PCV kit
• No oil vapor smell reaching the cabin, a quiet benefit of closed-loop routing

Features

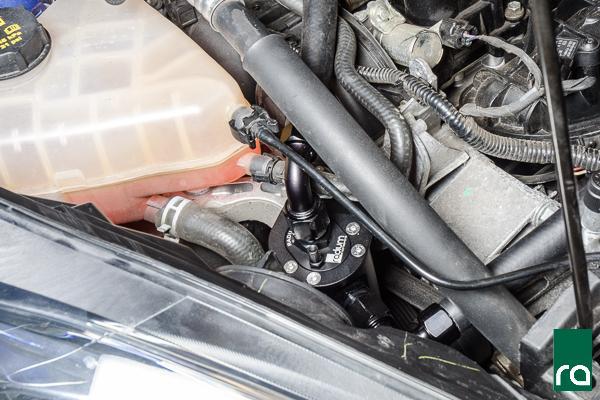

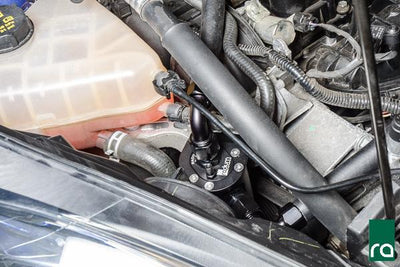

• 20-0377-FL PCV kit: mounts to the front RH motor mount, inline with the PCV valve, retaining factory valve function; SEMA certified and 49-state EPA legal

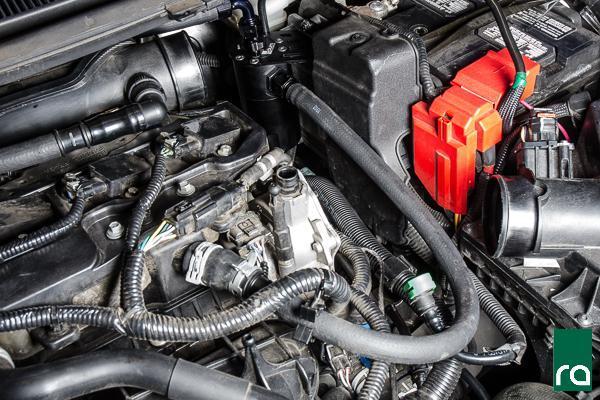

• 20-0378-FL crankcase kit: mounts to the 2 ECU studs on the back LH side, inline with the crankcase vent

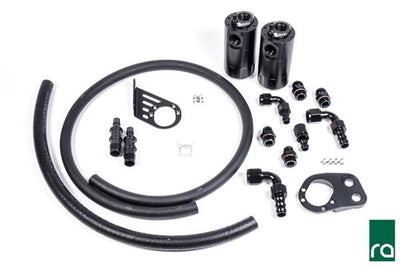

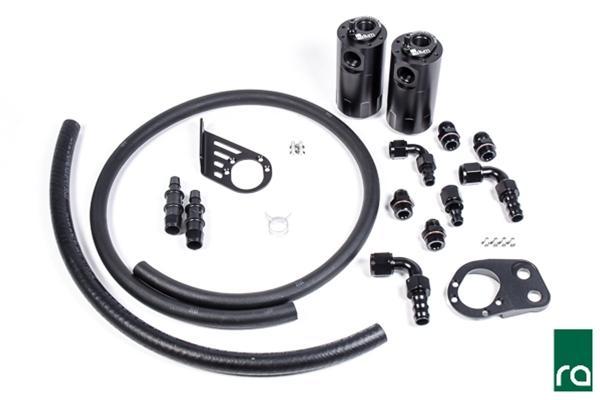

• 20-0379-FL dual kit: both cans for full coverage; each functions completely independently
• Fluid Lock catch cans with built-in dipsticks for easy fluid inspection
• Closed loop, non-VTA design: emissions and track legal, promotes negative crankcase pressure, keeps vapors out of the cabin
• Pressure sealed cans safe for this boosted application; intake manifold connection permitted; factory mounting holes only

The Details

The two circuits earn their cans differently. The PCV line flows under metered vacuum at idle, cruise, and deceleration, dragging crankcase vapor, unspent fuel, and oil sludge toward the manifold right after high load runs; the PCV can intercepts that stream while the factory check valve keeps doing its job. The crankcase side handles the WOT story, when blow-by heads for the intake pipe. Because the cans are sealed rather than vented, the system keeps its closed-loop character: separated oil stays in the can for the dipstick to find, cleaned gasses return to be burned, and slight negative crankcase pressure is preserved rather than dumped. The PCV kit's SEMA certification comes with a downloadable Certificate of Compliance for emissions tests and inspections, a rarity in this product category worth keeping in the glovebox. Both kits install on factory holes; check dipsticks starting at 3 to 4 weeks to learn your engine's collection rate.

Kit Includes

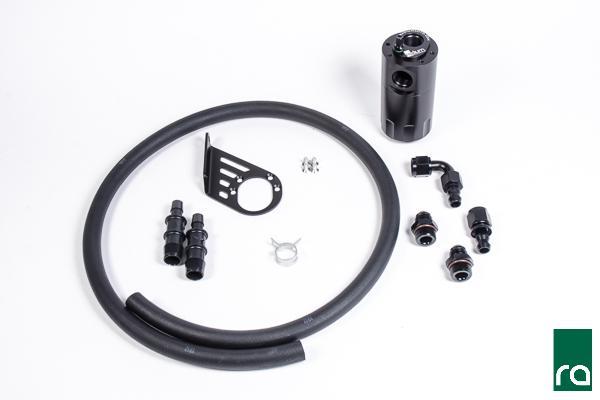

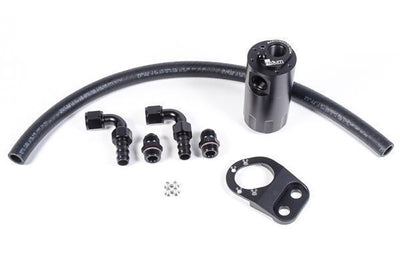

• Selected configuration: PCV kit, crankcase kit, or dual kit
• Fluid Lock catch can(s) with built-in dipsticks
• Application-specific mounting brackets, hoses, fittings, and hardware

Applications

• 2014-2019 Ford Fiesta ST (1.6L EcoBoost)
• PCV kit (20-0377-FL): SEMA certified, 49-state EPA legal with Certificate of Compliance
