Radium Multi-Pump Fuel Surge Tank - MPFST | Universal (20-144X)

One long sweeper on low fuel and a poorly baffled tank will lean your engine out right when it matters most.

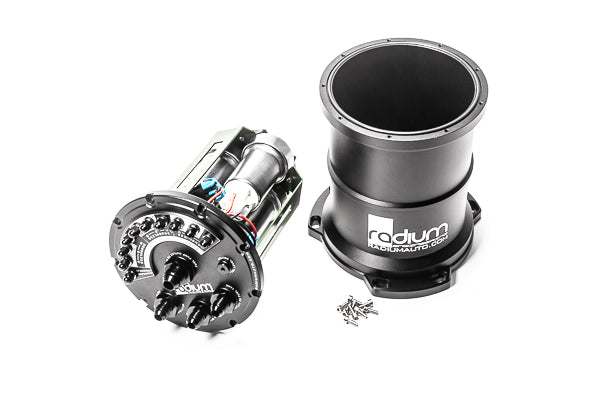

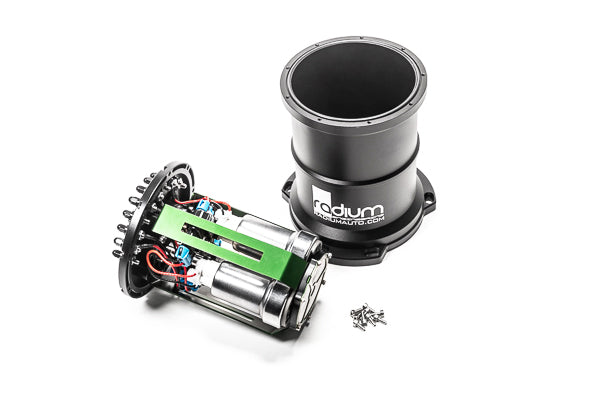

When cornering loads push fuel away from the pickup, no amount of pump upgrades in the main tank will save you. The Radium Engineering Multi-Pump Fuel Surge Tank (MPFST), redesigned for 2024, sits between your lift pump and engine as a constantly full reservoir housing up to three high-flow pumps, with all outlets merging internally into a single port. Fuel entering the SUPPLY and RETURN ports runs tangentially through the canister as a swirl pot, stripping out air bubbles and foam before the pumps ever see them. Choose the configuration matching your pumps, sold separately. Starvation resistance plus the fueling headroom for serious power.

What You'll Feel

• No lean stumble or pressure flicker through long corners, launches, or hard braking on low fuel
• Room to scale fueling from one pump to three as the build grows, staged if your pumps have check valves
• Simplified trunk plumbing, since the pump outlets merge internally into one line
• Quieter, cleaner fuel delivery with the swirl design de-aerating the supply

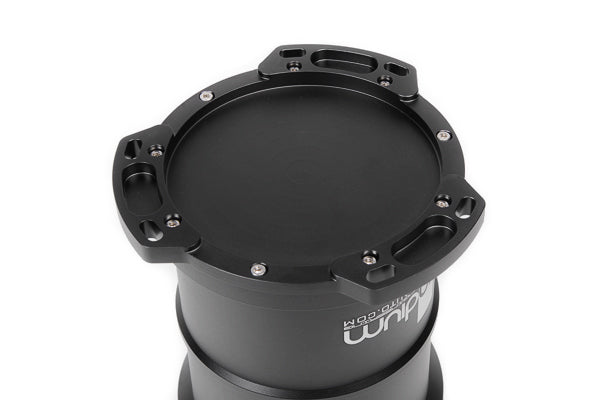

• Solid mounting even on the uneven floor of a trunk, which the underside is shaped for

Features

• Houses 1, 2, or 3 fuel pumps per configuration: 20-1440 (Walbro GSS342, AEM 50-1200, DW440), 20-1441 (Bosch BR540, DW400), 20-1442 (Walbro F90000267/274/285), 20-0443-00 (up to 2 Ti Automotive E5LM brushless)

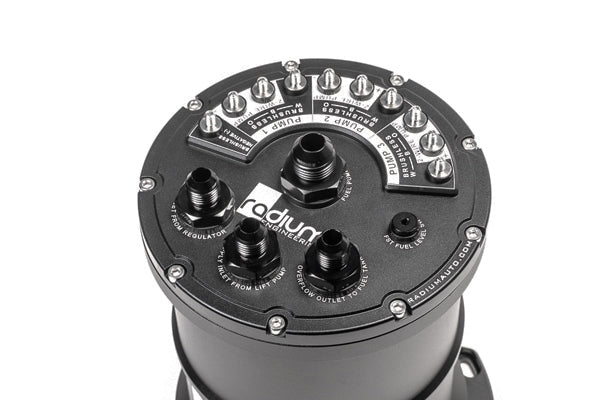

• FUEL PUMP OUTLET port is 10AN ORB with pre-installed 8AN male adapter; OVERFLOW, SUPPLY, and RETURN ports are 8AN ORB with pre-installed 6AN male adapters (interchangeable, alternatives sold separately)
• Tangential SUPPLY/RETURN flow creates a swirl pot that eliminates air bubbles and fuel foam

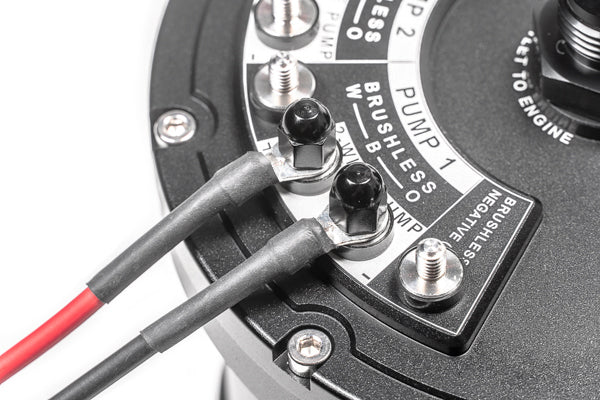

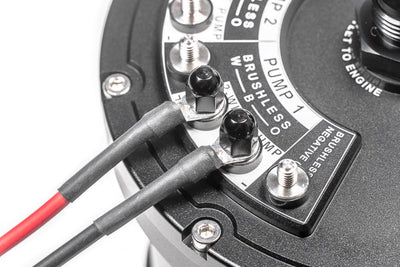

• Anti-rotation high-current electrical studs with dedicated power wiring per pump; ring terminals, heat shrink, and hardware included
• Internal wiring compliant with gasoline, ethanol, and methanol; stainless mesh inlet screen (E5LM version uses a press-in filter sock)
• Optional fuel level switch port (2AN ORB, plugged) signals when level drops 20% or more; switch sold separately

The Details

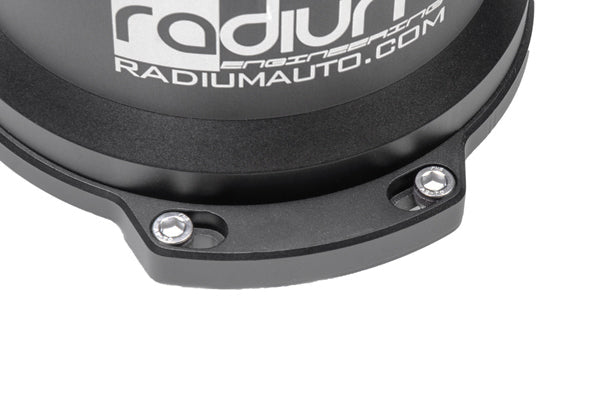

A surge tank works because it is always full: your lift pump and the regulator's return keep the canister topped up, so the internal pumps feeding the engine never see the slosh happening in the main tank. The 2024 MPFST redesign merges each pump's outlet internally, which removes the external check-valve manifold plumbing older multi-pump setups needed, and because compatible pumps carry their own check valves, you can stage pumps and only run what the moment demands. Note the Bosch BR540 does not include a check valve. Wiring is per-pump through labeled anti-rotation studs on the top hat, and Radium recommends one 17-0031 DIY wiring kit per pump circuit. Mounting uses the included stainless M6x1.0mm socket head bolts with a threaded plate or nuts behind your chosen surface. Two configuration cautions from Radium: with the physically larger BR540/DW400 pumps, three pumps cannot be installed if using the optional fuel level switch, and fewer than three pumps does not require blocking the empty port. Pumps are not included.

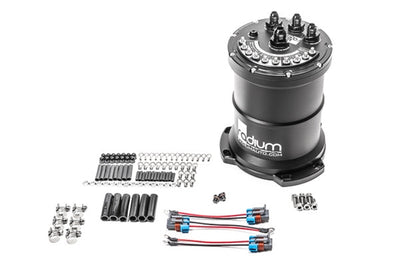

Kit Includes

• 1x MPFST canister assembly in selected pump configuration
• Pre-installed adapter fittings: 8AN male on outlet, 6AN male on overflow, supply, and return

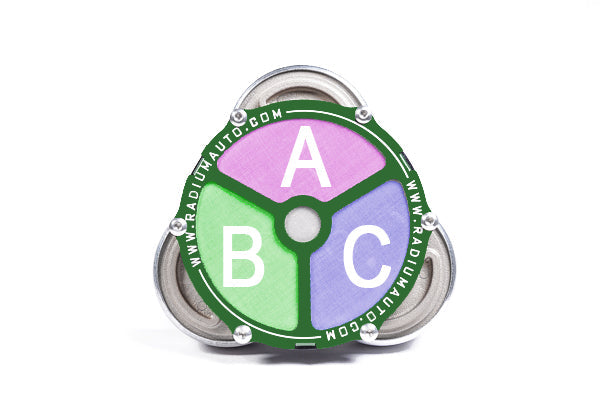

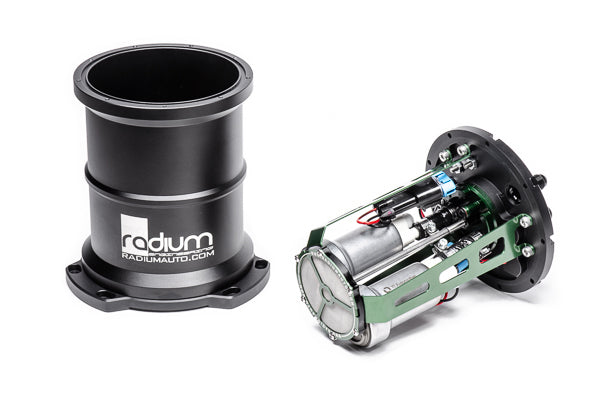

• Anodized aluminum pump mounting bracket and stainless mesh inlet screen (or press-in sock, E5LM version)
• Ring terminals, heat shrink, and stainless M6x1.0mm mounting bolts
• Fuel pumps NOT included, sold separately

Applications

• Universal: vehicles with inadequate tank baffling, track cars, and high-power builds needing multi-pump fueling
• 20-1440: Walbro GSS342, AEM 50-1200, DeatschWerks DW440 (1-3 pumps)
• 20-1441: Bosch BR540, DeatschWerks DW400 (1-3 pumps)
• 20-1442: Walbro F90000267, F90000274, F90000285 (1-3 pumps)
• 20-0443-00: Ti Automotive E5LM brushless (1-2 pumps)
