Radium MPFST-R Multi-Pump Fuel Surge Tank Regulated | Universal (20-1445 / 20-1446 / 20-1447)

One less port, one less return line, and no external regulator to find room for.

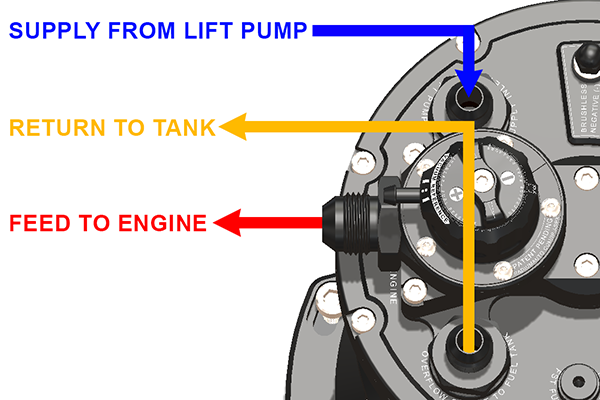

The Radium Engineering MPFST-R multi-pump fuel surge tank solves fuel starvation on a car with poor tank baffling, and it does it with the pressure regulator built in. A lift pump, usually the OEM in-tank unit, keeps the tank full, and the volume inside acts as a buffer so the surge pumps never see air even when the lift pump momentarily starves. Because the regulator returns low pressure fuel straight into the surge tank, there is no external FPR return line to plumb and one fewer port fitting than a conventional surge tank. The single feed line dead-ends at the engine.

Choose Your Version

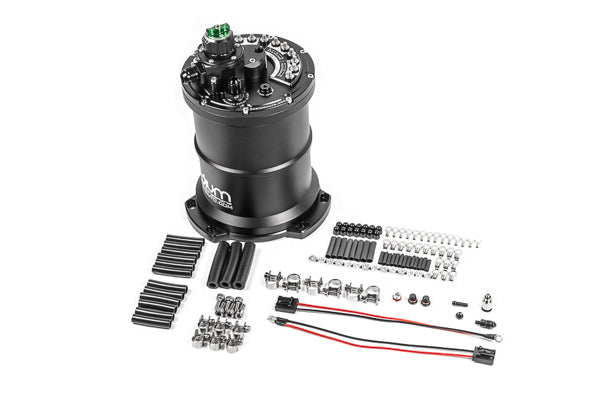

• Walbro GSS342 / AEM 50-1200 / DW440 (20-1445): the common brushed pump package

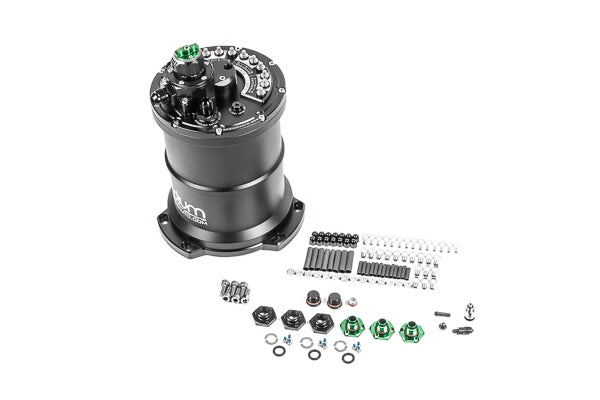

• Bosch BR540 / DW400 (20-1446): larger diameter pumps, maximum of 2 if the fuel level switch is fitted

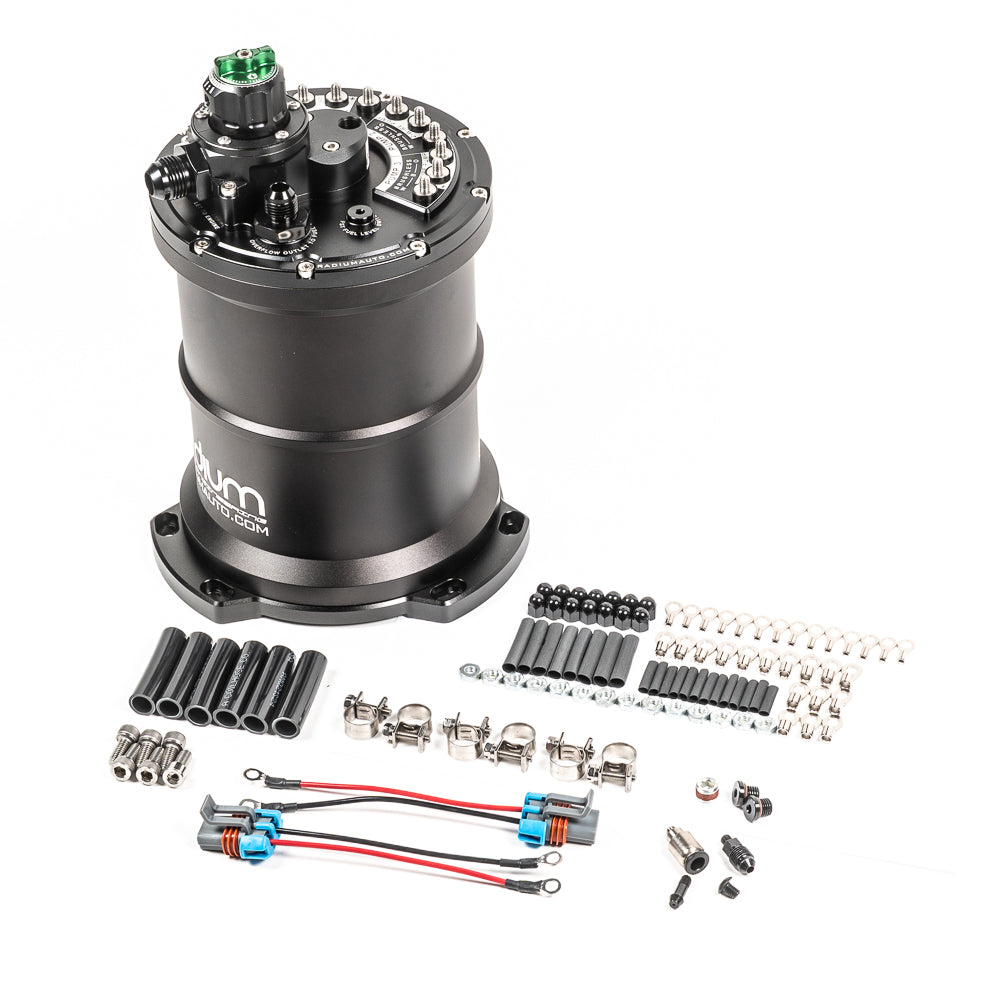

• Walbro F90000267 / 274 / 285 (20-1447): the DCSS 39/50 package, also accepts F90000295

What You'll Feel

• Stable fuel pressure through corners, braking, and low tank levels
• A simpler install than a conventional surge tank, with no external regulator or FPR return line
• Tool-less pressure adjustment by turning a knob, with detents giving roughly 1psi per click
• A vacuum reference port that swivels 360 degrees so it can be aimed without tools
• Capacity for 1, 2, or 3 pumps as the build grows

Features

• Accepts 1, 2, or 3 fuel pumps; pumps not included
• Built-in RA-series regulator with tool-less knob adjustment and haptic detents
• 360 degree swiveling, double O-ring sealed vacuum reference port, 1:1 capable
• Four interchangeable 10-32 vacuum port fittings, plus a plug for constant pressure
• 1/8in NPT fuel pressure port at the regulator with plug provided
• Pump outlet: 10AN ORB female, preassembled with an 8AN male adapter
• Overflow and supply ports: 8AN ORB female, preinstalled with 6AN male adapters
• Anti-rotation high current electrical studs with ring terminals and hardware included
• Gasoline, ethanol, and methanol compliant internal wiring
• Integrated mounting feet for M6 or 1/4in fasteners

The Details

Plan the return before you buy. The overflow port cannot be capped, so excess fuel has to go back to the main tank; if your car has no return port on the tank, one must be created, and Radium publishes a technical data sheet covering how. Pump choice carries two real constraints worth knowing up front. Pumps without an integrated check valve, the Bosch BR540 and the Walbro F90000295, should only be used as the primary pump in a staged installation. And the physically larger BR540 and DW400 interfere with the optional fuel level switch, so a tank running that switch is limited to two of those pumps rather than three. The 1/8in NPT port takes the 0-100psi gauge for setting pressure, and the level switch can drive a dash light, an ECU safety input, or lift pump control.

Kit Includes

• MPFST-R surge tank with integrated RA-series regulator
• All parts required to install 1, 2, or 3 pumps
• Preinstalled 8AN and 6AN adapter fittings
• Four vacuum port fittings and a reference plug
• 1/8in NPT plug, ring terminals, and electrical hardware
• NOT included: fuel pumps, fuel pressure gauge, and fuel level switch

Applications

• Universal, any vehicle experiencing fuel starvation from inadequate tank baffling
• Particularly suited to forced induction conversions upgrading fueling without opening the stock tank

Important Notes

• The overflow port cannot be capped; a return to the main fuel tank is required
• Bosch BR540 and Walbro F90000295 lack check valves and must be the primary pump in a staged setup
• Only 2 Bosch BR540 or DW400 pumps fit when the optional fuel level switch is installed
