Radium Injector Seats and Gaskets | Nissan / Mazda / Subaru / R8 (20-0160 / 20-0161 / 20-1044 / 18-0090 / 18-0061 / 18-0014 / 18-0029)

Injector seats and gaskets. The cheap parts that decide whether the expensive ones seal.

Radium Engineering injector seats and gaskets for Nissan top feed conversion rails, Mazda top feed rails, and several engine-specific sealing applications.

Choose Your Part

• Nissan injector seat, 30mm (20-0160)
• Nissan injector seat, 25mm (20-0161)
• Mazda primary injector seat, 16mm (20-1044)
• Intake manifold gasket, R8 / Gallardo LP (18-0090)
• Gasket, intake to head, Subaru EJ (18-0061)
• IACV gasket, Nissan SR20 (18-0014)
• Coolant tank gasket (18-0029)

Features

• Machined aluminum injector seats for Radium rails
• Application specific gaskets
• Fuel and ethanol compatible where applicable

The Details

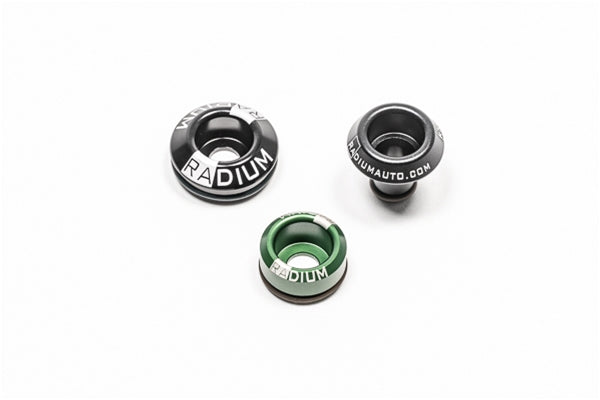

The Nissan seats are for top feed conversion rails, which is what makes a side feed engine accept top feed injectors. They are sold individually, so order one per injector. The 30mm seats are black anodized and the 25mm are Radium green, both CNC machined with a common 14mm bore for the lower injector O-ring.

The 20-1044 Mazda seat is the 16mm primary, matching the primary injector position on rotary applications.

Gaskets are service items: replace rather than reuse whenever the joint is opened, since a compressed gasket will not seal the same way twice.

Kit Includes

• One injector seat or one gasket, as selected

Applications

• 20-0160 / 20-0161: Radium Nissan top feed conversion fuel rails
• 20-1044: Radium Mazda top feed fuel rails, primary injectors
• 18-0090: Audi R8 and Lamborghini Gallardo LP
• 18-0061: Subaru EJ
• 18-0014: Nissan SR20
• 18-0029: Radium coolant tanks

Important Notes

• Injector seats are sold individually; order one per injector
• Confirm the seat size against your injector specification
