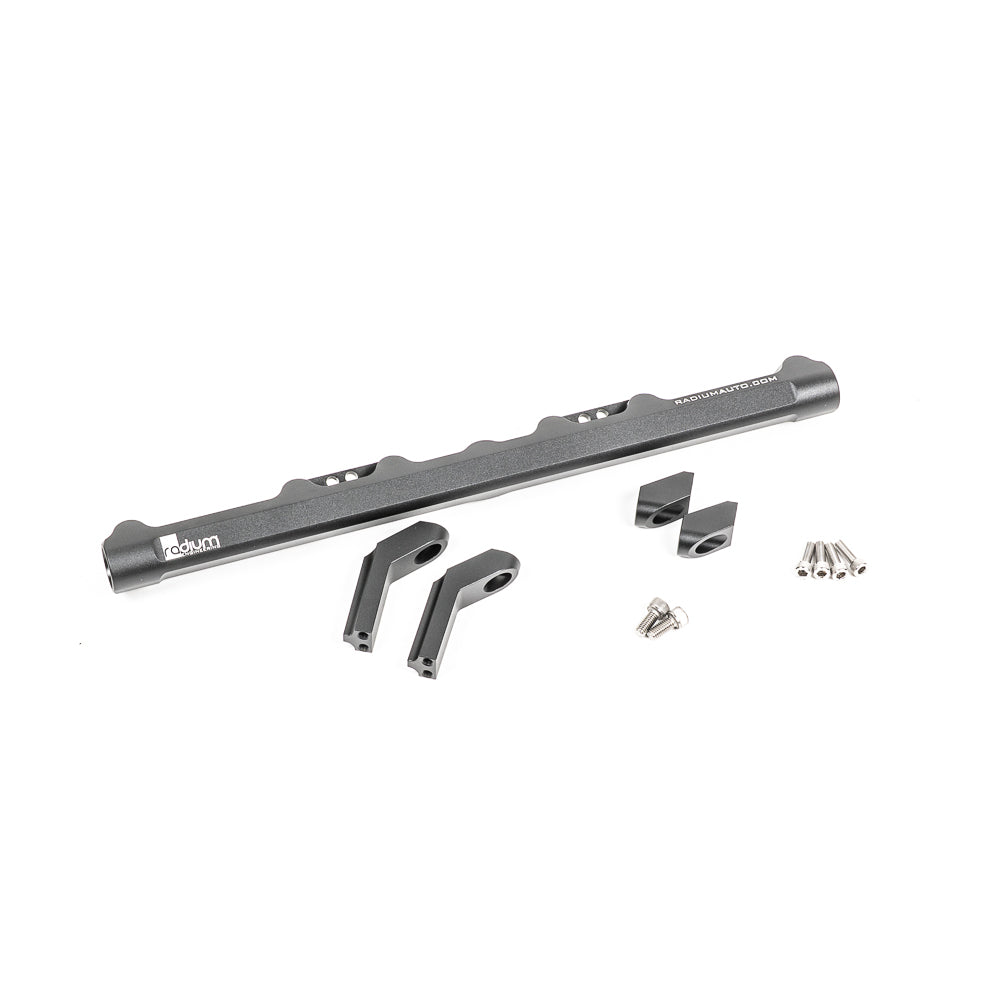

Radium Fuel Rail VW 2.8L 12V VR6 20-0877

Vendor:Radium Engineering

Radium Fuel Rails | VW / Audi 1.8T 20V / VR6 / EA888 (20-0872 / 20-0879 / 20-0877 / 20-0889 / 20-0889-PK)

SKU: 20-0872

Part
Part: Fuel Rail, VW/Audi 1.8T 20V (20-0872)
$142.45
From Shawn: Not sure this product is right for your build? Email me at service@tunedbyshawn.com before you order. I answer these myself.

ECUs always ship FREE with Tuned By Shawn!

Manufacturer Limited Warranty

Product details

Description

Four VW and Audi rail applications spanning port injection, VR6, and the 1.8T.

Radium Engineering fuel rails for VW and Audi engines, CNC machined billet aluminum with AN ORB ports. Covers the 1.8T 20V, both VR6 variants, and the EA888 port injection rail with its matching plumbing kit.

Choose Your Part

  • Fuel rail, VW/Audi 1.8T 20V (20-0872)
  • Fuel rail, VW/Audi/Porsche 3.2L 24V VR6 (20-0879)
  • Fuel rail, VW 2.8L 12V VR6 (20-0877)
  • Fuel rail, port injection, VW/Audi EA888 (20-0889)
  • Fuel rail plumbing kit, port injection EA888 (20-0889-PK)

What You'll Feel

  • Fuel flow headroom as injectors and boost grow
  • ORB ports for a regulator, gauge, or pulse damper
  • Port injection capability alongside factory direct injection on the EA888

Features

  • CNC machined billet aluminum, anodized
  • AN ORB threaded ports
  • Stainless steel mounting hardware
  • Compatible with all fuel types including E85

The Details

The EA888 rail is a different proposition from the others. It is a port injection rail for an engine that is direct injected from the factory, so it adds a second injection system rather than replacing the first. That is how tuners get past the fuel limits of direct injection alone on a modified EA888. The 20-0889-PK plumbs it.

Note the two VR6 rails are not interchangeable: the 2.8L 12V and the 3.2L 24V are different engines with different heads. The 24V rail also covers Porsche applications of that engine.

Fittings beyond the plumbing kit are selected separately.

Kit Includes

  • Fuel rail with mounting hardware
  • 20-0889-PK: fittings and lines for the EA888 port injection rail
  • NOT included: fuel injectors

Applications

  • 20-0872: VW and Audi 1.8T 20V
  • 20-0879: VW, Audi, and Porsche 3.2L 24V VR6
  • 20-0877: VW 2.8L 12V VR6
  • 20-0889 / 20-0889-PK: VW and Audi EA888, port injection

Important Notes

  • The 2.8L 12V and 3.2L 24V VR6 rails are not interchangeable
  • The EA888 rail adds port injection alongside factory direct injection
  • All fittings sold separately except with the plumbing kit
