Radium Fuel Rails | GM Vortec 8100 L18 Big Block (20-0862)

The 8.1 was built to haul, not to make power. The factory rails are the first thing in the way when you change that.

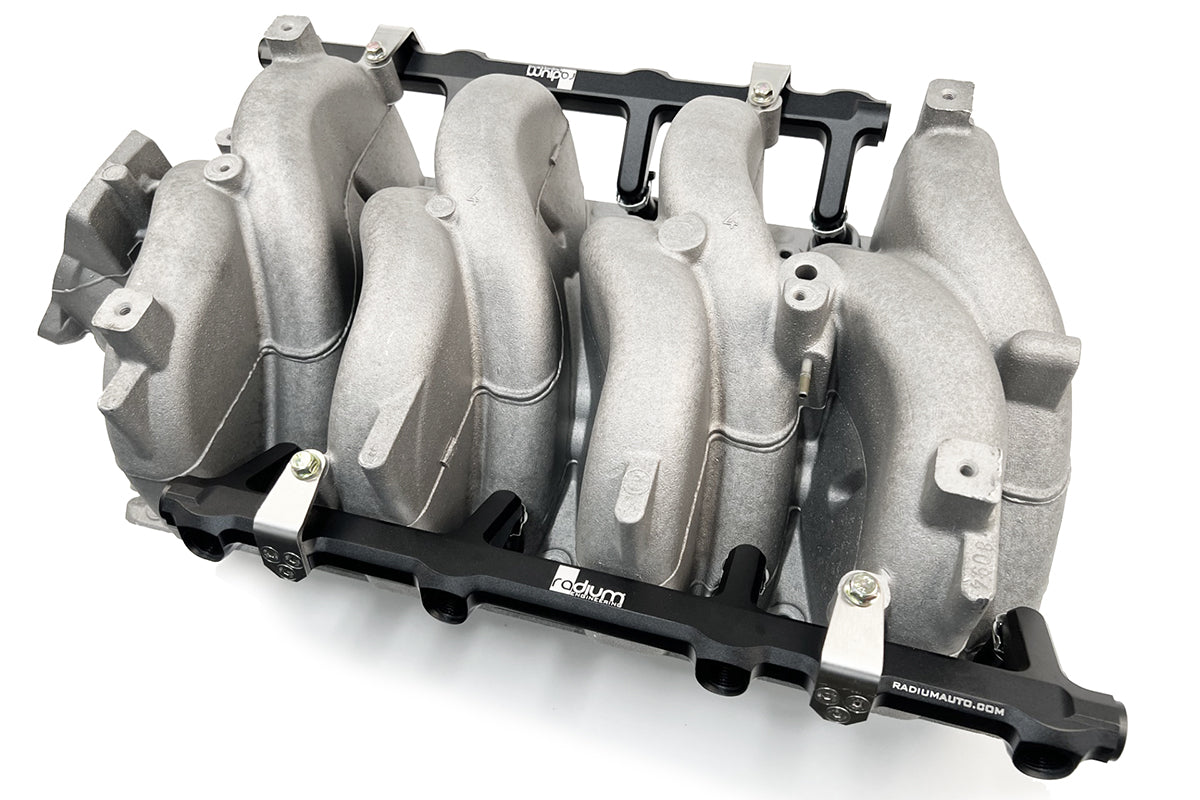

The Radium Engineering fuel rail set for the GM Vortec 8100 L18 big block replaces the factory rails with a pair CNC machined from 6061 aluminum, black anodized and laser etched. Each rail carries six 8AN ORB (3/4in-16) ports, twelve across the pair, which is an unusual amount of plumbing flexibility and suits both return and returnless configurations.

What You'll Feel

• Flow capacity that stops being the limit on a built 8.1
• Twelve ORB ports to place a regulator, gauge, or damper wherever the engine bay allows
• Billet rails in place of the factory parts, on stainless mounting feet
• A rail set that works with either the early return or later returnless plumbing

Features

• CNC machined 6061 aluminum, black anodized and laser etched
• Six 8AN ORB ports per rail, twelve total, tapped 3/4in-16
• Four stainless steel mounting feet with stainless hardware
• Suits return style and returnless fuel system configurations

The Details

This is an upgrade rail, not a top feed conversion. OEM or OEM-equivalent injectors are required, matching factory height and upper and lower O-ring dimensions. Radium does not make injector recommendations; consult your tuner for flow rate and the injector manufacturer for a part number with the correct dimensions.

The rails are only half the job. GM changed the fuel system partway through this engine's life, so the matching plumbing kit is year-specific: 20-1062 for 01-03 return style trucks, which brings an adjustable regulator and gauge, and 20-1162 for 04-10 returnless trucks, which brings a pulse damper instead. Both are sold separately.

No fittings are supplied with the rails. ORB fittings must be chosen to suit your plumbing, and leave clearance around any port destined to carry a regulator, gauge, or damper.

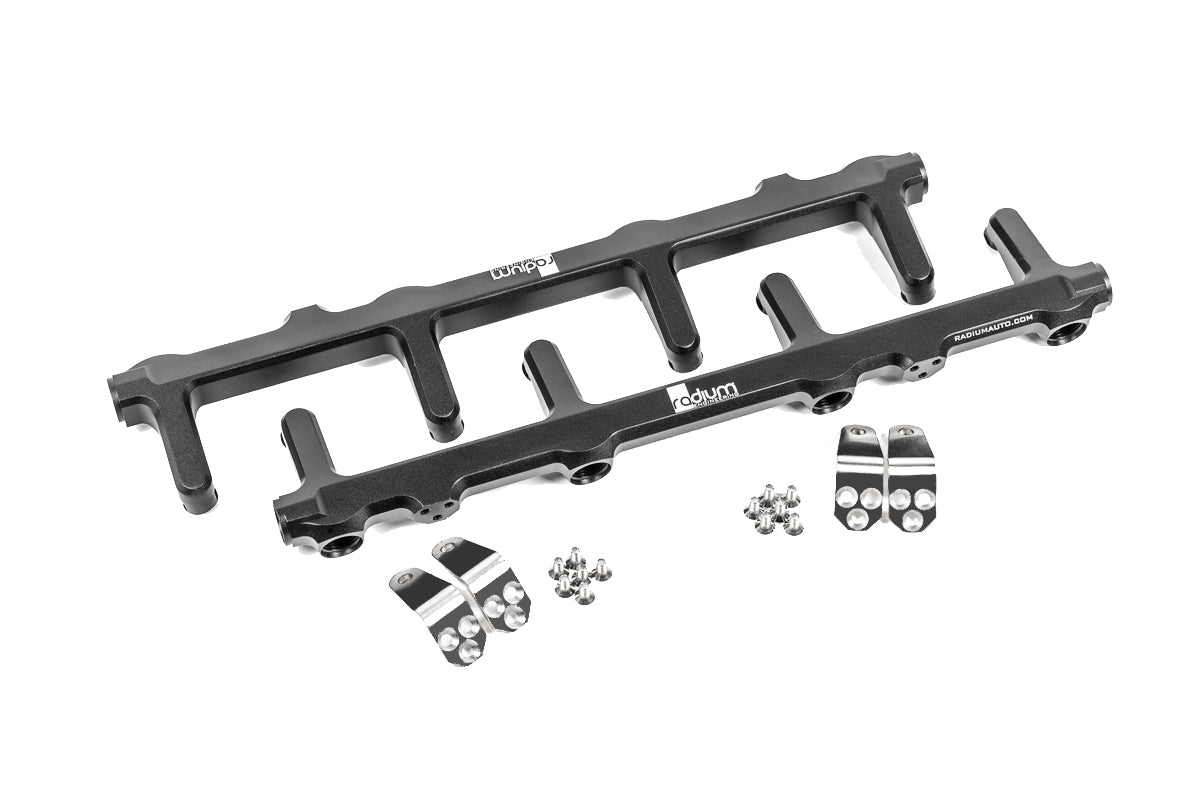

Kit Includes

• Anodized billet aluminum fuel rails (x2)
• Stainless steel mounting feet (x4)
• Stainless steel mounting hardware
• NOT included: AN fittings, fuel injectors, plumbing kit, regulator, and gauge

Applications

• 01-07 Chevrolet Silverado 2500HD and 3500HD, GMC Sierra 2500HD and 3500HD
• 01-06 Chevrolet Suburban XL 2500 and GMC Yukon XL 2500
• 01-02 Chevrolet and GMC C3500HD, 02-06 Chevrolet Avalanche 2500
• 01-10 Chevrolet Kodiak and GMC Topkick
• Workhorse Class A W20, W22, W24, and W25 motorhomes
• Malibu Wakesetter 23, 25, and 247 LSV boats; Mastercraft X-45, ProStar 197, and ProStar 214 boats

Important Notes

• Upgrade rail: OEM or OEM-equivalent injectors required
• All fittings sold separately
• The matching plumbing kit differs by year: 20-1062 for 01-03, 20-1162 for 04-10
