Radium Fuel Rails and Plumbing Kit | Subaru EJ Series (20-0579-02 / 20-0869-02 / 20-0978)

Match the rail to your intake manifold first, then match the injectors to the rail. Get either wrong and nothing seals.

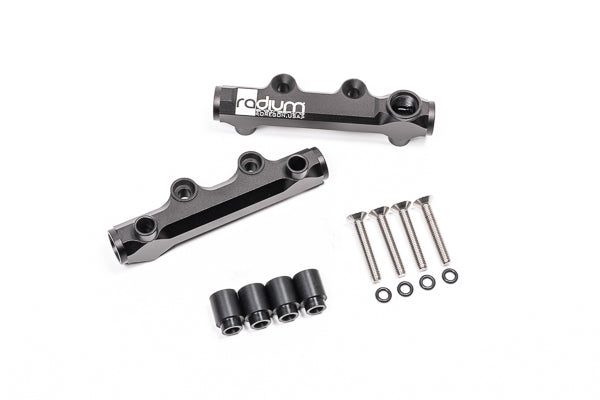

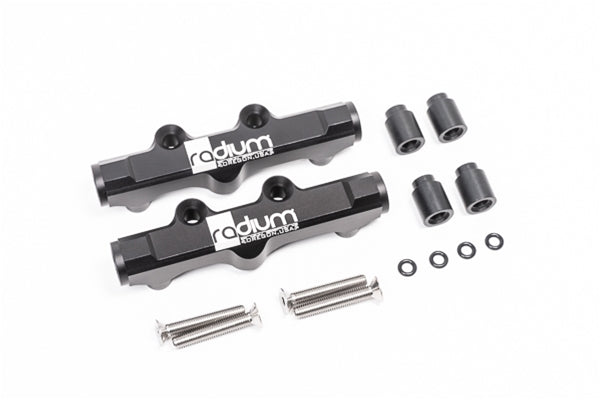

Radium Engineering fuel rails for the Subaru EJ series. Radium builds two styles: top feed conversion rails that fit OEM side feed manifolds and convert to universal top feed injectors, and top feed upgrade rails that install on manifolds already equipped with top feed injectors and simply replace the rail. All are CNC machined from solid 6061 aluminum, black anodized and laser etched, with three 8AN ORB ports per rail, six total, and thermal insulating press-in spacers.

Choose Your Version

• Top feed conversion, EJ V1-2 (20-0579-02): 94-99 Legacy and Outback EJ25D, 92-96 Impreza WRX EJ20G, 1998 Impreza 2.5RS and Forester EJ25D
• Top feed upgrade, EJ22 / EJ251 (20-0869-02): 99-04 Impreza 2.5RS, 2.5TS, 2.5OBS and Forester, 00-04 Legacy 2.5 and Outback, 03-05 Baja, 99-01 Impreza and Legacy 2.2L (FED)
• Fuel rail plumbing kit, EJ series (20-0978)

What You'll Feel

• Flow capacity that stops limiting the engine as injectors grow
• Access to the far wider universal top feed injector market on a conversion
• Six 8AN ORB ports for a regulator, gauge, or pulse damper
• Thermal spacers keeping manifold heat out of the fuel

Features

• CNC machined solid 6061 aluminum, black anodized and laser etched
• Three 8AN ORB threaded ports per rail, six total
• Thermal insulating press-in spacers
• Black anodized and laser etched 26mm injector seats on both versions
• Stainless steel mounting hardware
• Compatible with all fuel types including E85

The Details

The 20-0869-02 has an injector restriction that catches people out. It works with the OEM air assist injectors on the EJ251, but not with those on the EJ22, because the EJ22 uses 11mm upper injector O-rings while these ports are machined for 14mm. To eliminate the air assist feature on a California-spec EJ22 you additionally need 20-0816 injector seats (x4), 14-0720 spacers (x4), and flat head M8x1.25x60mm screws (x4). On the EJ251, the supplied O-rings go into the lower groove on Bosch EV14 injectors to delete air assist.

On the 20-0579-02 conversion, do not buy "WRX top feed" injectors. This application uses universal injectors that must have 14mm O-rings top and bottom and a 34mm height. Mounting brackets are included so a wide range of Subaru vehicles can be accommodated.

The 20-0869-02 also accepts a Radium 20-0776 fuel pulse damper in the centre port, and the 20-0303 adapter if the OEM fuel pressure regulator is being reused.

Kit Includes

• 20-0579-02: rails, Version 1-2 conversion mount, 26mm injector seats, thermal spacers, stainless hardware
• 20-0869-02: rails, green anodized mount, 26mm injector seats, thermal spacers, rubber mounting spacer stays, FKM O-rings for aftermarket injectors, stainless hardware

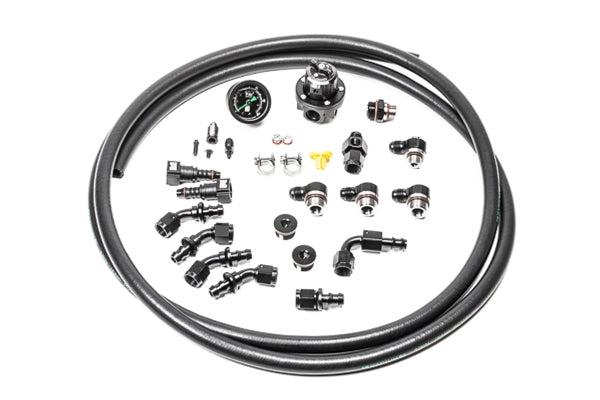

• 20-0978: plumbing kit with regulator, lines, and fittings
• NOT included: fuel injectors

Applications

• 20-0579-02: 96-99 Legacy GT, LSi and SUS (EJ25D), 94-98 JDM Legacy, Grand Wagon and Lancaster (EJ25D), 96-99 Outback (EJ25D), 92-96 Impreza WRX (EJ20G), 1998 Impreza 2.5RS and Forester (EJ25D)
• 20-0869-02: 99-04 Impreza 2.5RS, 2.5TS and 2.5OBS, 99-04 Forester, 00-04 Legacy 2.5L, 00-04 Outback, 03-05 Baja, 99-01 Impreza and Legacy 2.2L

Important Notes

• The 20-0869-02 is NOT compatible with OEM air assist injectors on the EJ22, which use 11mm upper O-rings; the ports are 14mm
• On the 20-0579-02 conversion, do NOT buy "WRX top feed" injectors; use universal injectors with 14mm O-rings top and bottom and 34mm height
• Match your intake manifold to the correct part number before ordering
